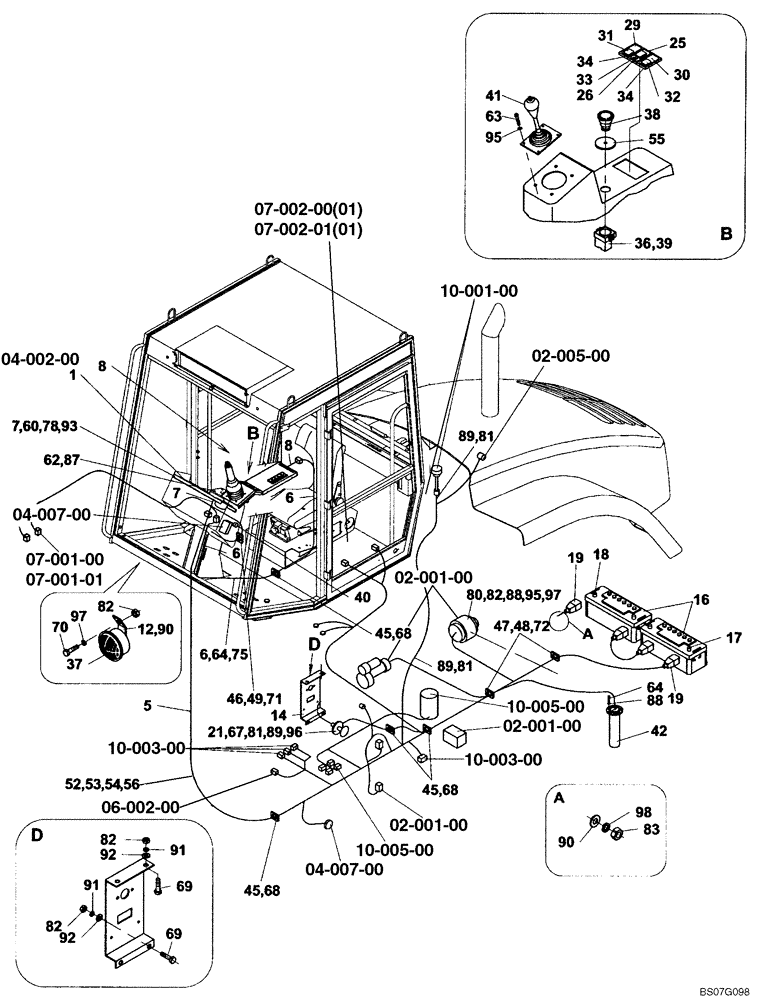

Запчасти Case SV208 (04-001-00[01]) - ELECTRICAL INSTALLATION (GROUP 407) (ND122417) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

ELECTRICAL INSTALLATION (ND122417) (GROUP 407)

1шт.

1

ND128410

DASHBOARD

1шт.

5

ND132348

WIRE HARNESS

HARNESS, WIRE 1

1шт.

6

ND122415

WIRE HARNESS

1шт.

7

ND128411

WIRE HARNESS

To Relay Block, 7 Relay Switches, Drum Vibration

1шт.

8

ND122425

WIRE HARNESS

1шт.

12

ND054607

SUPPORT

1шт.

14

ND031350

PLATE

1шт.

16

B48MFW

WET BATTERY

For US Only

2шт.

16

CC48MFW

WET BATTERY

For Canada Only

2шт.

17

ND111732

TERMINAL CONNECTOR

Positive

2шт.

18

ND111733

TERMINAL CONNECTOR

Negative

2шт.

19

ND111783

COVER

Qty Was 2

2-3шт.

21

ND064972

SWITCH

Master Disconnect

1шт.

25

ND064516

SWITCH

WORK SPEED RANGE

1шт.

26

ND064520

COVER PLATE

1шт.

29

ND065382

SWITCH

TRAVEL SPEED

1шт.

30

ND065396

SWITCH

EMERGENCY BRAKE

1шт.

31

ND065401

LENS

1шт.

32

ND065349

LENS

1шт.

33

ND065310

TERMINAL

1шт.

34

ND065309

BEZEL

2шт.

36

ND121091

FLANGE

Replaces ND120063 Flange

1шт.

37

ND064679

HORN

1шт.

38

ND121085

KNOB

Emergency Stop; Replaces ND120061 Knob, Emergency Stop

1шт.

39

ND124174

CONTACT PLATE

1шт.

40

ND065786

SWITCH

Vibration ON Only at High Throttle

1шт.

41

ND119476

MANIPULATOR

1шт.

41

84593572

CONTROL LEVER

1шт.

41

ND118115

SWITCH

Drum Vibration Control

1шт.

41

ND141149

BOOT

Rubber, Joystick

1шт.

41

47397505

KNOB

1шт.

42

ND101956

FLOAT

1шт.

45

ND062001

CLAMP

7шт.

46

ND064849

SLEEVE

2шт.

47

ND064841

SLEEVE

4шт.

48

ND064822

COVER

4шт.

49

ND064807

CLAMP

2шт.

52

ND078445

SECURING STRAP

25шт.

53

ND078447

CABLE TIE

CABLE STRAP

5шт.

54

ND066061

TAPE

1шт.

55

ND081766

DECAL

1шт.

56

ND081909

DECAL

1шт.

60

ND024101

BOLT

4шт.

62

ND023783

BOLT

4шт.

63

ND024124

BOLT

4шт.

64

ND024122

BOLT

6шт.

67

ND024137

BOLT

2шт.

68

ND024234

BOLT

14шт.

69

ND021294

BOLT

4шт.

70

ND021295

BOLT

1шт.

71

ND021184

BOLT

2шт.

72

ND021186

BOLT

4шт.

75

ND024965

SELF-TAP SCREW

4шт.

78

ND026412

NUT

4шт.

80

ND021846

NUT

2шт.

81

ND021847

NUT

5шт.

82

ND034087

NUT

6шт.

83

ND034088

NUT

2шт.

87

ND029246

WASHER

4шт.

88

ND029247

WASHER

6шт.

89

ND029248

WASHER

22шт.

90

ND029250

WASHER

4шт.

91

ND035940

SPRING WASHER

4шт.

92

ND029249

WASHER

4шт.

93

ND029305

WASHER

4шт.

95

ND029308

WASHER

5шт.

96

ND029309

SPRING WASHER

2шт.

97

ND029310

WASHER

2шт.

98

ND029311

WASHER

2шт.
