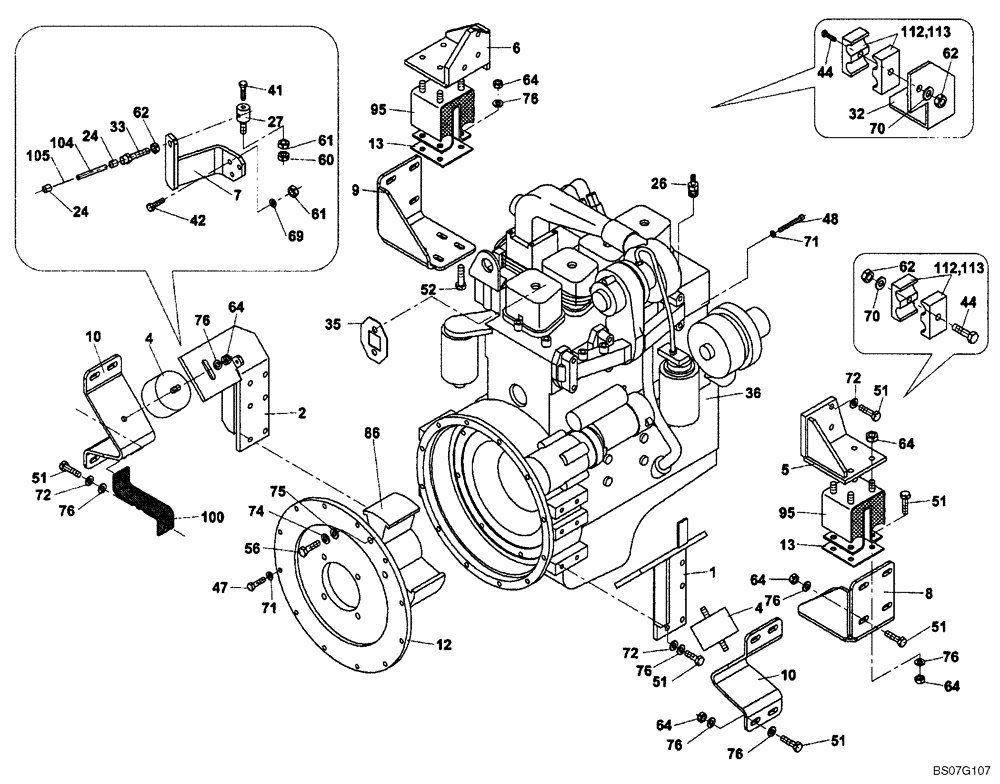

Запчасти Case SV208 (02-001-00[01]) - ENGINE INSTALLATION (A) (GROUP 105) (ND132343) (02) - ENGINE

REF

INSTRUCTION

ENGINE MOUNTING (ND132343) (GROUP 105 A)

1шт.

1

ND104302

SUPPORT

1шт.

2

ND104303

SUPPORT

1шт.

4

ND107210

SHOCK ABSORBER

2шт.

5

ND029756

SUPPORT

1шт.

6

ND029753

SUPPORT

1шт.

7

ND117988

HOLDER

1шт.

8

ND132344

BRACKET

BRACKET, LH

1шт.

9

ND132345

BRACKET

BRACKET, RH

1шт.

10

ND132355

BRACKET

BRACKET, Front

2шт.

12

ND119074

FLANGE

1шт.

13

ND049398

PLATE

4шт.

24

ND054267

SLEEVE

2шт.

26

ND030807

HYD CONNECTOR

1шт.

27

ND050648

PIVOT

1шт.

32

ND029207

SUPPORT

1шт.

33

ND050635

SCREW

1шт.

35

ND122685

GASKET

1шт.

36

REF

INSTRUCTION

ENGINE, CUMMINS ND126833; See Your Nearest Cummins Engine Dealer For Parts And Service

1шт.

36-1

ND118470

ENGINE OIL FILTER

Not Illustrated

2шт.

41

ND110076

BOLT

1шт.

42

ND021289

BOLT

3шт.

44

ND021187

BOLT

M8 x 50

2шт.

47

ND021195

BOLT

M10 x 35

12шт.

48

ND024266

BOLT

4шт.

51

ND021311

BOLT

M12 x 35

41шт.

52

ND021312

BOLT

M12 x 40

1шт.

56

ND021327

BOLT

2шт.

60

ND026461

NUT

1шт.

61

ND021847

NUT

6шт.

62

ND034087

NUT

2шт.

64

ND034086

NUT

M12

36шт.

69

ND118926

WASHER

3шт.

70

ND035940

SPRING WASHER

ID 8

4шт.

71

ND035941

WASHER

ID 10

16шт.

72

ND035942

WASHER

ID 12

15шт.

74

ND035943

WASHER

ID 16

2шт.

75

ND029253

WASHER

ID 17

2шт.

76

ND122456

WASHER

42шт.

86

ND091165

SPACER

1шт.

95

ND064129

RUBBER MOUNTING

2шт.

100

ND066152

WIRE HARNESS

1шт.

104

ND118005

CABLE SHEATH

1шт.

105

ND118007

CABLE

1шт.

112

ND062019

CLAMP

2шт.

113

ND064807

CLAMP

2шт.
