(12-022-00[02]) - PLATFORM CANOPY (GROUP 155 P) (ND106157)

Запчасти Case SV208 (12-022-00[02]) - PLATFORM CANOPY (GROUP 155 P) (ND106157) (09) - CHASSIS/ATTACHMENTS

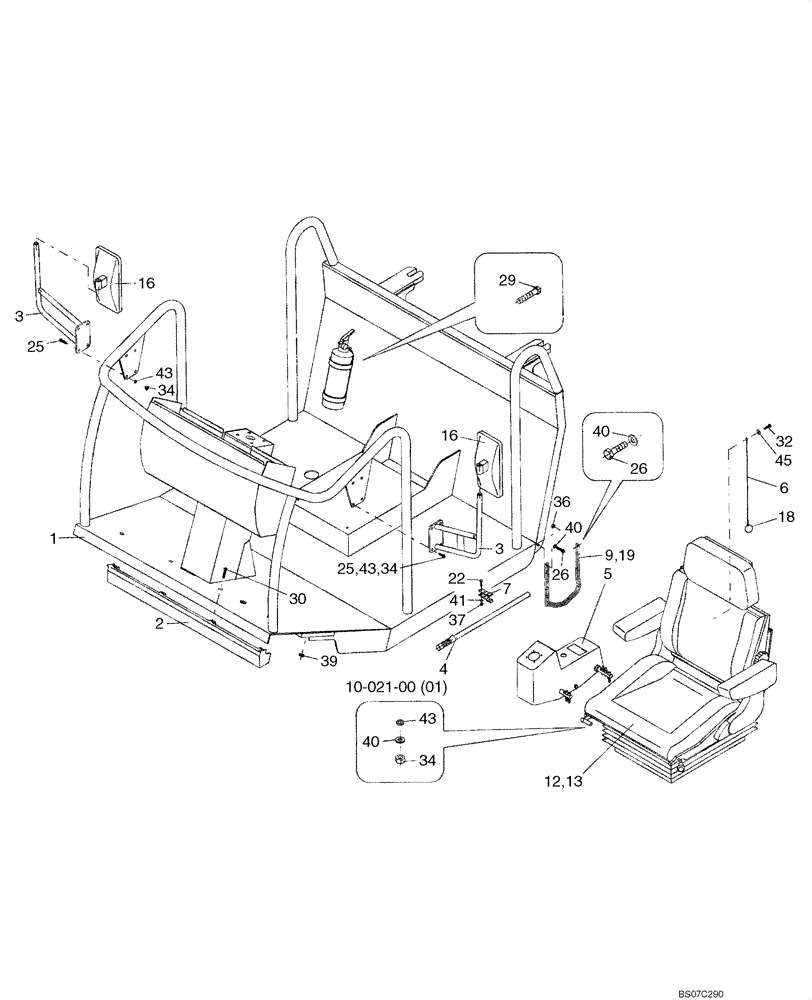

Схема запчастей Case SV208 - (12-022-00[02]) - PLATFORM CANOPY (GROUP 155 P) (ND106157) (09) - CHASSIS/ATTACHMENTS
40
6
2
25
39
40
40
19
3
29
30
3
1
43
9
18
13
16
26
43
12
26
32
34
4
45
16
41
10-021-00(01)
22
25
34
43
34
7
5
37
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PLATFORM (ND106157) (GROUP 155 P)

1шт.

1

ND106158

PLATFORM

1шт.

2

ND029730

COVER

1шт.

3

ND106210

HOLDER

Mirror

2шт.

4

ND108074

PIPE

Complete; See Figure 10-021-00 (01) For Service Breakdown

1шт.

5

ND115395

PANEL

1шт.

6

ND117962

CABLE

1шт.

7

ND109488

CLAMP

Spring

2шт.

9

ND050824

LINK CHAIN

1шт.

12

ND031878

DRIVER SEAT

Until P.I.N.; DDD000705, Does Not Include "Operator Present" Seat Switch

1шт.

12

ND114822

DRIVER SEAT

P.I.N.; DDD000706, And After Includes "Operator Present" Seat Switch ND124384

1шт.

ND124384

LIMIT SWITCH

"Operator Present" Seat Switch Not Illustrated

1шт.

13

ND114823

DRIVER SEAT

Upholstery

1шт.

16

ND064408

MIRROR

2шт.

18

ND073401

RING

1шт.

19

ND101585

PLASTIC-RUBBER TUBE

1шт.

22

ND021290

BOLT

2шт.

25

ND021295

BOLT

M8 x 25

8шт.

26

ND021293

BOLT

M8 x 16

2шт.

30

ND024388

SCREW

M8 x 12 Countrsink

4шт.

32

ND025008

SELF-TAP SCREW

Self Tapping

1шт.

34

ND021848

NUT

M8

13шт.

37

ND027300

NUT

2шт.

39

ND029266

WASHER

ID 10

8шт.

40

ND029249

WASHER

ID 8,4

6шт.

41

ND029248

WASHER

4шт.

43

ND035940

SPRING WASHER

ID 8 Spring

12шт.

45

ND037446

WASHER

1шт.
