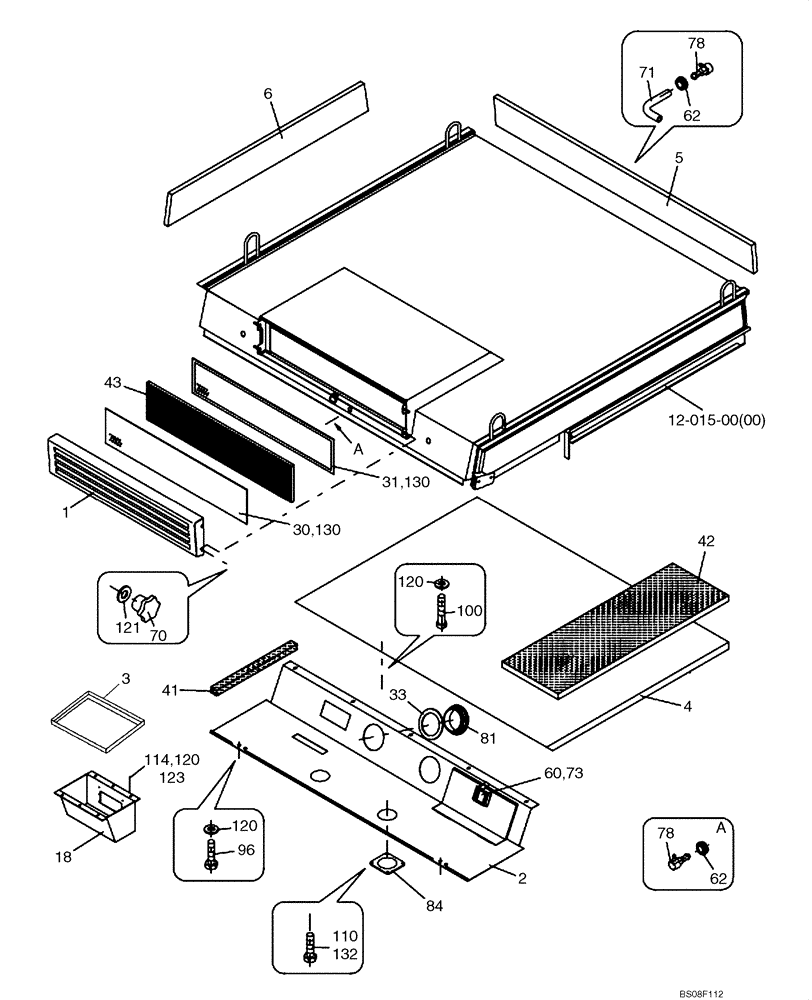

Запчасти Case SV208 (12-020-03[01]) - AIR FILTRATION, CAB (GROUP 165 B) (ND001506) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

AIR FILTRATION, CAB (ND001506) (GROUP 165 B)

1шт.

1

ND050469

GRILLE

Until P.I.N. DDD000767 Except DDD000761

1шт.

1

ND136587

GRATE

P.I.N. DDD000761 And DDD000768 - DDD002070 And DDD002072 - DDD002073

1шт.

1

ND138186

GRATE

P.I.N. DDD002071 And DDD002074 And After

1шт.

2

ND017873

COVER

1шт.

3

ND106244

FRAME

1шт.

4

ND029684

HEADLINER

1шт.

5

ND050477

PADDING

1шт.

6

ND050479

PADDING

1шт.

18

ND103120

SUPPORT

1шт.

30

ND106209

SHEET

1шт.

31

ND106208

SHEET

1шт.

33

ND053355

RING

2шт.

41

ND103220

SEALING STRIP

1200 mm

1шт.

42

ND075258

FOAM

20 x 230 700

3шт.

43

ND075260

CAB FILTER

10 x 130 595; Until P.I.N. DDD002066

1шт.

43

ND137766

FILTER

P.I.N. DDD002076 And After

1шт.

60

ND064337

BLANK-OFF PLUG

1шт.

62

ND064663

PLUG

2шт.

70

ND078528

HANDLE

2шт.

71

ND100095

HOSE

4шт.

73

ND079506

GROMMET

7 x 1

1шт.

78

ND065218

JET

Windscreen Sprayer

2шт.

81

ND089999

RING

2шт.

84

ND064537

GRILLE

2шт.

96

ND023799

BOLT

M6 x 12

4шт.

100

ND024138

BOLT

M6 x 25

7шт.

110

ND025017

BOLT

M4 x 16

12шт.

114

ND021847

NUT

M6

14шт.

120

ND029248

WASHER

ID 6,4

4шт.

121

ND029247

WASHER

ID 5,3

4шт.

123

ND029309

SPRING WASHER

ID 6,1

6шт.

130

ND069931

RIVET

4 x 10

44шт.

132

ND100144

PLASTIC-RUBBER TUBE

1шт.
