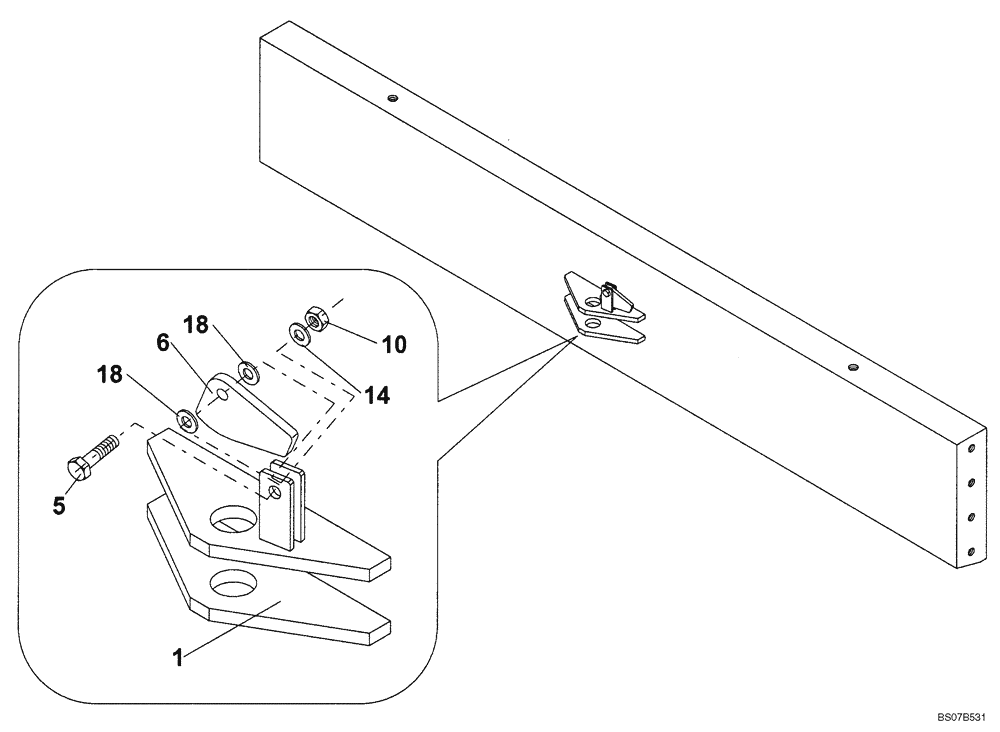

Запчасти Case SV208 (12-005-00[02]) - DRAWBAR, FRONT (GROUP 477) (ND131908) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

DRAWBAR, FRONT (ND131908) (GROUP 477)

1шт.

1

NSS

NOT SOLD SEPARAT

SUSPENSION

1шт.

5

ND122085

BOLT

1шт.

6

ND048624

PLATE

1шт.

10

ND027302

NUT

1шт.

14

ND029250

WASHER

1шт.

18

ND037213

WASHER

2шт.
