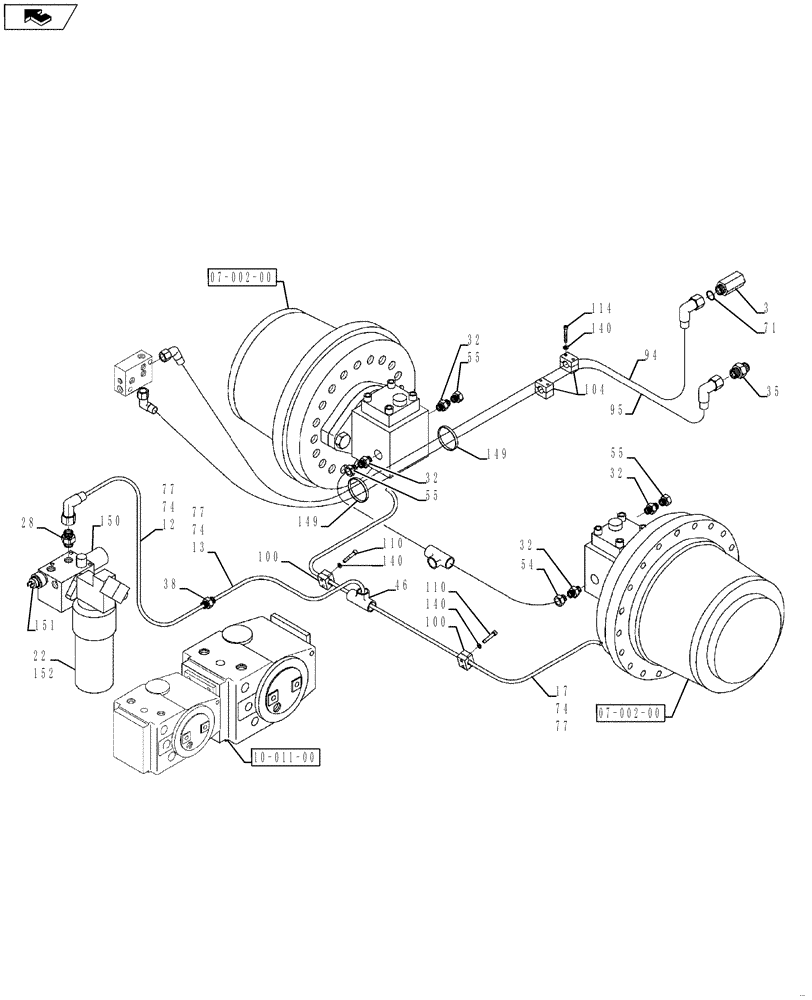

Запчасти Case SV208 (10-004-00[01]) - HYDRAULIC CIRCUIT, TRAVEL - REAR (08) - HYDRAULICS

3

ND031345

HYD CONNECTOR

2шт.

12

ND104435

RIGID TUBE

1350mm

1шт.

13

ND104436

RIGID TUBE

1200mm

1шт.

16

ND104437

RIGID TUBE

950mm

1шт.

17

ND104438

RIGID TUBE

1450mm

1шт.

22

ND067795

VALVE

1шт.

28

ND062153

HYD CONNECTOR

1шт.

32

ND062135

HYD CONNECTOR

4шт.

35

ND062224

HYD CONNECTOR

1шт.

38

ND062291

HYD CONNECTOR

1шт.

46

ND062294

TEE

1шт.

50

ND062335

TEE

1шт.

54

ND062391

REDUCER

2шт.

55

ND062433

RESTRICTOR

3шт.

71

ND073366

WASHER

27 x 36 x 2

1шт.

74

ND062039

SEAL

8шт.

77

ND062046

NUT

8шт.

94

ND102226

HOSE

1650mm

1шт.

95

ND102227

FLEXIBLE HOSE

1530mm

1шт.

100

ND064797

SLEEVE

5шт.

104

ND064801

SLEEVE

2шт.

110

ND024231

BOLT

M6 x 22

5шт.

114

ND024238

BOLT

M6 x 50

4шт.

140

ND029248

WASHER

ID6,4

4шт.

149

ND078446

SECURING STRAP

370mm

15шт.

150

ND133238

SOLENOID

1шт.

151

84389510

PRESSURE SWITCH

1шт.

152

ND065484

ELEMENT

1шт.
