/ / / / / / / / (02-001-00[01]) - ENGINE - ENGINE MOUNTING

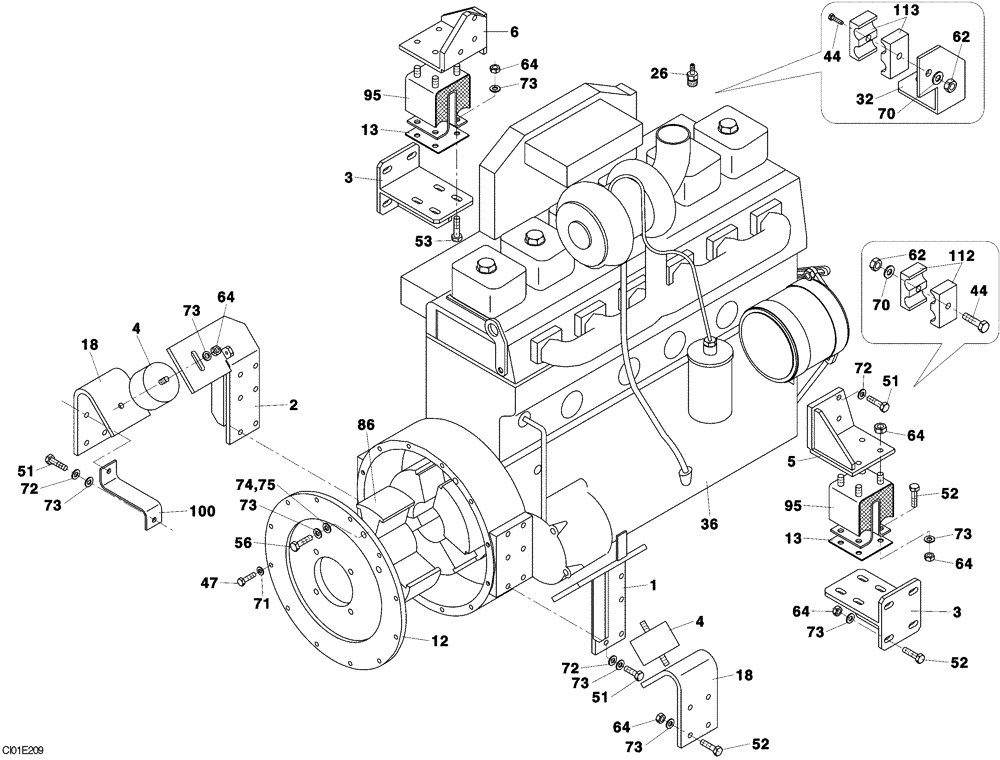

Запчасти Case SV208 (02-001-00[01]) - ENGINE - ENGINE MOUNTING (02) - ENGINE
![Схема запчастей Case SV208 - (02-001-00[01]) - ENGINE - ENGINE MOUNTING (02) - ENGINE](https://partsell.ru/storage/images/casece/744856.png)
5
4
112
64
62
51
18
73
32
44
52
73
73
52
36
51
73
3
64
1
113
86
18
95
6
53
51
72
75
12
64
73
72
13
64
13
47
64
26
72
73
100
74
56
64
52
62
95
4
3
70
73
73
2
71
44
70
1
ND104302
SUPPORT
1шт.
2
ND104303
SUPPORT
1шт.
3
ND104346
SUPPORT
2шт.
4
ND046074
RUBBER MOUNTING
2шт.
5
ND029756
SUPPORT
1шт.
6
ND029753
SUPPORT
1шт.
12
ND031279
FLANGE
1шт.
13
ND049398
PLATE
4шт.
18
ND030873
SUPPORT
2шт.
26
ND030807
HYD CONNECTOR
1шт.
32
ND029207
SUPPORT
1шт.
36
ND101128
ENGINE
1шт.
44
ND021187
BOLT
M8 x 50
2шт.
47
ND021195
BOLT
M10 x 35
12шт.
51
ND021311
BOLT
M12 x 35
18шт.
52
ND021312
BOLT
M12 x 40
24шт.
53
ND021313
BOLT
M12 x 45
1шт.
56
ND023846
SCREW
M16 x 20
2шт.
62
ND021848
NUT
M8
1шт.
64
ND034086
NUT
M12
36шт.
70
ND035940
SPRING WASHER
ID 8
4шт.
71
ND035941
WASHER
ID 10
12шт.
72
ND035942
WASHER
ID 12
15шт.
73
ND029267
WASHER
ID 13
34шт.
74
ND035943
WASHER
ID 16
2шт.
75
ND029253
WASHER
ID 17
2шт.
86
ND091165
SPACER
1шт.
95
ND064129
RUBBER MOUNTING
2шт.
100
ND066152
WIRE HARNESS
1шт.
112
ND062019
CLAMP
2шт.
113
ND064807
CLAMP
2шт.
