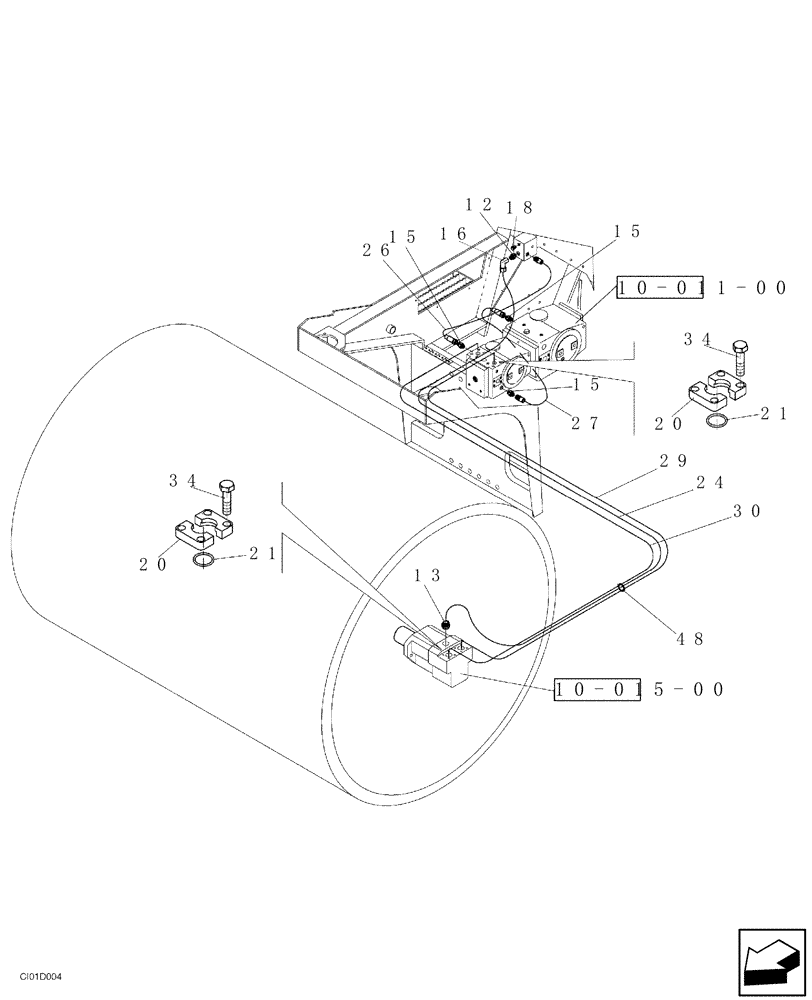

Запчасти Case SR15 (10-002-00[01]) - HYDRAULIC CIRCUIT - VIBRATION (08) - HYDRAULICS

12

ND062109

HYD CONNECTOR

1шт.

13

ND062181

HYD CONNECTOR

1шт.

15

ND062135

HYD CONNECTOR

3шт.

16

ND062367

HYD CONNECTOR

1шт.

18

ND062378

PLUG

1шт.

20

ND062009

FLANGE

8шт.

21

ND079934

O-RING

2шт.

24

ND061515

FLEXIBLE HOSE

3650mm

1шт.

26

ND061516

HOSE,550.00 mm

1шт.

27

ND061517

HOSE,750.00 mm

1шт.

29

ND061542

HOSE

1шт.

Serial Number : Until 109

1шт.

29

ND104951

FLEXIBLE HOSE

1шт.

Serial Number : 110 And After

1шт.

30

ND061543

HOSE

1шт.

Serial Number : Until 109

1шт.

30

ND104950

FLEXIBLE HOSE

1шт.

Serial Number : 110 And After

1шт.

34

ND034063

BOLT

16шт.

48

ND078446

SECURING STRAP

370mm

10шт.

Serial Number : Until 163

1шт.

48

ND106910

STRAP

10шт.

Serial Number : 164 And After

1шт.
