(35.910.02[02]) - LINES, VIBRATORY DRUM (P.I.N. DDD001216 AND AFTER) (GROUP 324) (ND142130)

Запчасти Case SV216 (35.910.02[02]) - LINES, VIBRATORY DRUM (P.I.N. DDD001216 AND AFTER) (GROUP 324) (ND142130) (35) - HYDRAULIC SYSTEMS

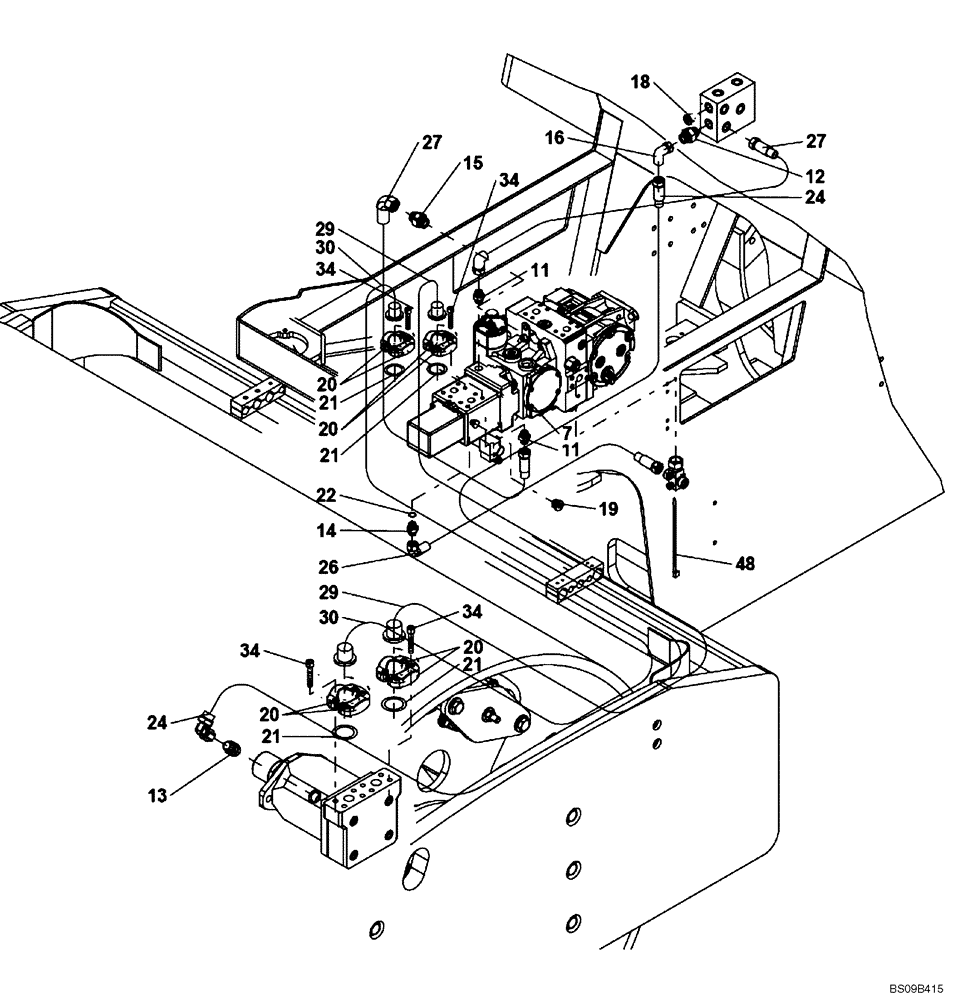

Схема запчастей Case SV216 - (35.910.02[02]) - LINES, VIBRATORY DRUM (P.I.N. DDD001216 AND AFTER) (GROUP 324) (ND142130) (35) - HYDRAULIC SYSTEMS
24
27
11
26
29
34
12
34
19
29
30
48
7
13
21
18
22
20
16
27
14
15
21
34
24
20
11
1
20
30
20
34
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, VIBRATORY DRUM (ND142130) (GROUP---)

1шт.

7

ND124040

COVER

2шт.

11

ND062126

FITTING

2шт.

12

ND062109

HYD CONNECTOR

1шт.

13

ND062181

HYD CONNECTOR

1шт.

14

ND126344

HYD CONNECTOR

1шт.

15

ND062135

HYD CONNECTOR

1шт.

16

ND062367

HYD CONNECTOR

1шт.

18

ND062378

PLUG

2шт.

19

ND062441

PLUG

1шт.

20

ND062008

HALF-COLLAR

8шт.

21

ND079933

O-RING

4шт.

22

ND121092

RING

1шт.

24

ND119172

HOSE

1шт.

26

ND061771

HOSE

1шт.

27

ND061234

HOSE

2шт.

29

ND133275

HOSE

1шт.

30

ND133274

HOSE

1шт.

34

ND024260

BOLT

16шт.

48

ND106910

STRAP

10шт.
