(35.910.01[01]) - MOTOR, HYDRAULIC VIBRATION (UNTIL P.I.N. DDD001212) (GROUP 4-35) (ND122249)

Запчасти Case SV216 (35.910.01[01]) - MOTOR, HYDRAULIC VIBRATION (UNTIL P.I.N. DDD001212) (GROUP 4-35) (ND122249) (35) - HYDRAULIC SYSTEMS

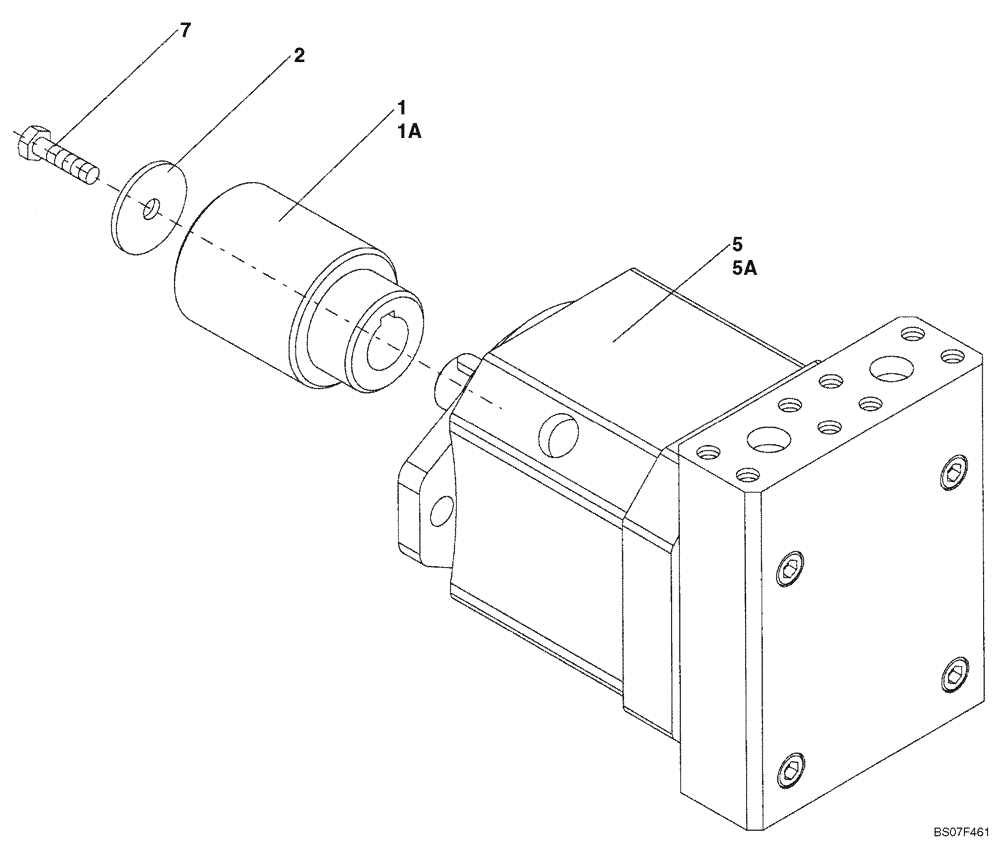

Схема запчастей Case SV216 - (35.910.01[01]) - MOTOR, HYDRAULIC VIBRATION (UNTIL P.I.N. DDD001212) (GROUP 4-35) (ND122249) (35) - HYDRAULIC SYSTEMS
5
1a
5a
1
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MOTOR, HYDRAULIC VIBRATION (ND122249) (GROUP 4-35) Not Serviced Separately; Incl 1, 2, 5, 7

1шт.

1

ND122251

PINION

Used With Hydraulic Motor Reference Item Number 5

1шт.

1a

ND122250

COUPLING

COUPLING, Used With Hydraulic Motor Reference Item 5A

1шт.

2

ND122252

WASHER

Used With Hydraulic Motor Reference Item Number 5

1шт.

5

ND122025

HYDRAULIC MOTOR

If Used

1шт.

5a

ND122026

HYDRAULIC MOTOR

MOTOR, HYDRAULIC, If Used

1шт.

7

ND021293

BOLT

Used With Hydraulic Motor Reference Item Number 5

1шт.
