(35.700.01[01]) - PUMP, HYDRAULIC (UNTIL P.I.N. DDD001212 AND P.I.N. DDD001216 AND AFTER) (GROUP 116) (ND126719)

Запчасти Case SV216 (35.700.01[01]) - PUMP, HYDRAULIC (UNTIL P.I.N. DDD001212 AND P.I.N. DDD001216 AND AFTER) (GROUP 116) (ND126719) (35) - HYDRAULIC SYSTEMS

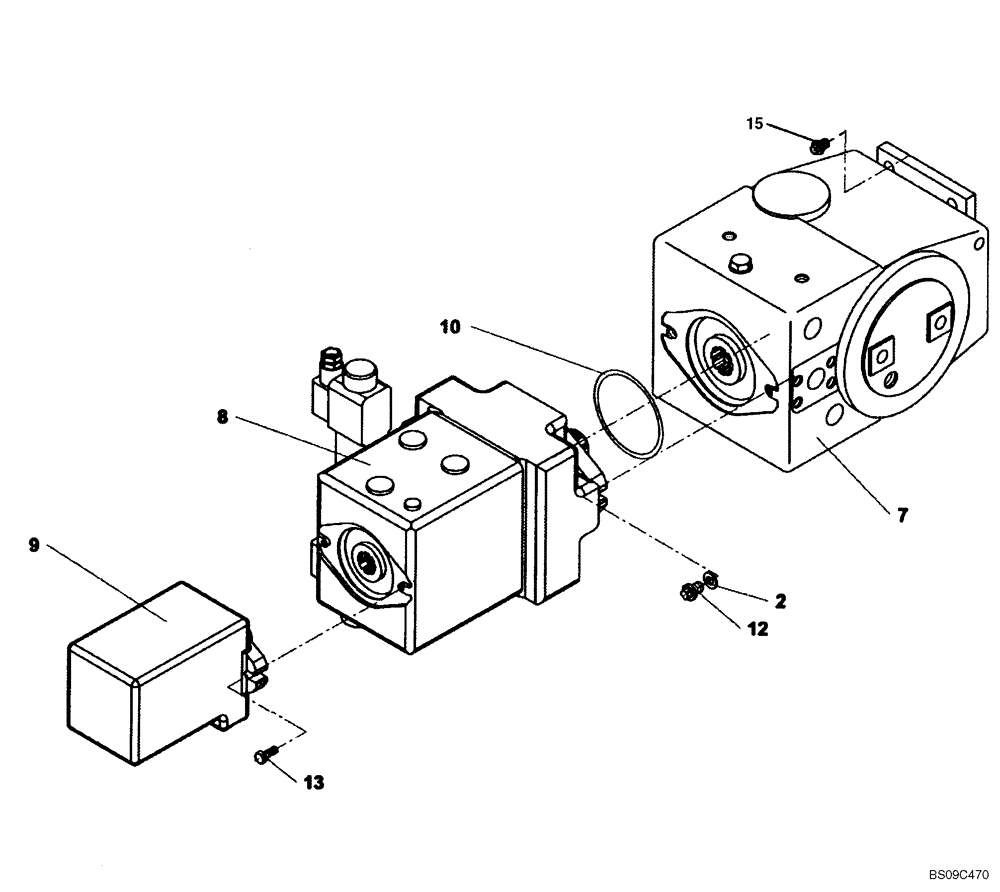

Схема запчастей Case SV216 - (35.700.01[01]) - PUMP, HYDRAULIC (UNTIL P.I.N. DDD001212 AND P.I.N. DDD001216 AND AFTER) (GROUP 116) (ND126719) (35) - HYDRAULIC SYSTEMS
10
13
12
2
15
9
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PUMP, HYDRAULIC (ND126719) (GROUP 116)

1шт.

2

ND049809

WASHER

2шт.

7

ND090928

HYDRAULIC PUMP

1шт.

8

ND126094

PUMP

1шт.

9

ND126095

PUMP

1шт.

10

ND144150

O-RING

O-RING

1шт.

12

ND123221

BOLT

2шт.

13

ND127820

BOLT

2шт.

15

ND118093

BOLT

4шт.
