(35.353.19) - REGULATOR, HYDRAULIC REAR TRAVEL MOTOR (GROUP 95-2 B) (ND090792)

Запчасти Case SV216 (35.353.19) - REGULATOR, HYDRAULIC REAR TRAVEL MOTOR (GROUP 95-2 B) (ND090792) (35) - HYDRAULIC SYSTEMS

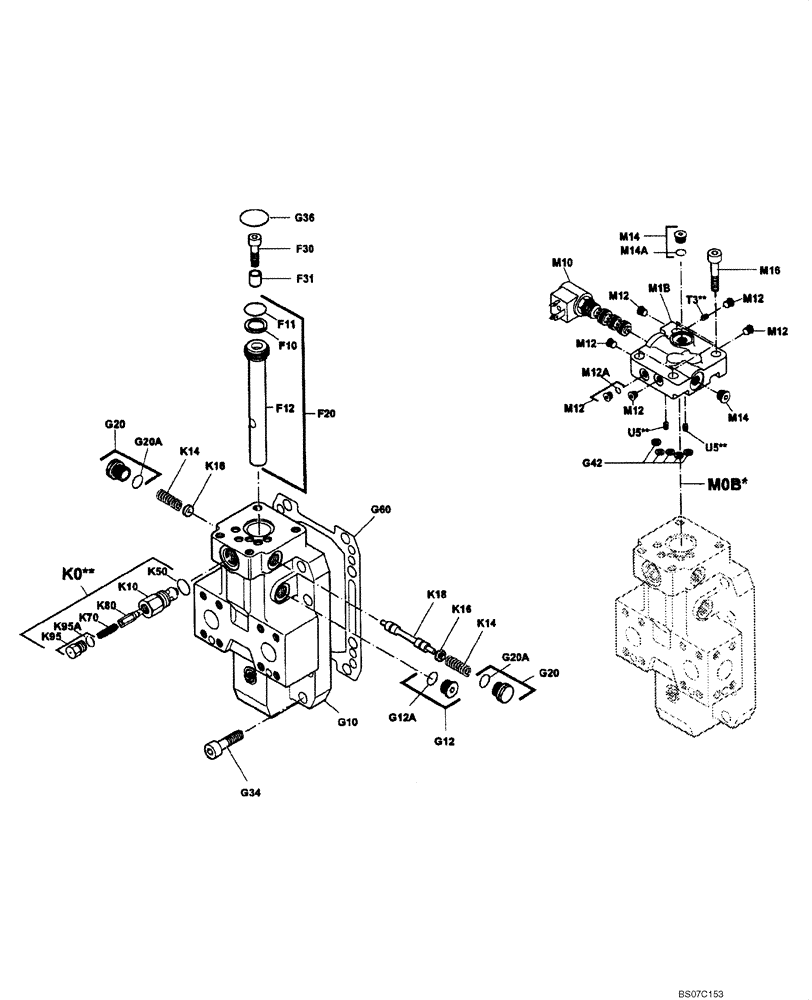

Схема запчастей Case SV216 - (35.353.19) - REGULATOR, HYDRAULIC REAR TRAVEL MOTOR (GROUP 95-2 B) (ND090792) (35) - HYDRAULIC SYSTEMS
m14
k70
f20
k95a
m12
m14
k10
k18
f11
m10
g36
k16
m12
m12
g20a
f30
m12
g42
g20
k16
m12
g10
k14
k14
m14a
f10
m1b
g34
g20a
k80
g20
m12a
f12
f31
g12
m16
k95
g12a
k50
m12
g60
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

REGULATOR, HYDRAULIC REAR TRAVEL MOTOR ( ND090792) (GROUP 95-2B)

1шт.

ao

ND102436

SEAL KIT

1шт.

c05

ND102543

CYLINDER BLOCK

1шт.

c10

ND102472

PLATE

1шт.

f10

ND102418

SEAL

1шт.

f11

ND102392

O-RING

1шт.

f12

ND102404

PISTON

1шт.

f20

ND102421

PISTON

Incl. Ref. F10, F11, F12

1шт.

g10

ND102403

COVER

1шт.

g12

ND102474

PLUG

1шт.

g20

ND102422

PLUG

2шт.

g34

ND102498

BOLT

8шт.

g36

ND102355

O-RING

1шт.

g42

ND102552

SEAL

5шт.

k10

ND103353

PLUG

1шт.

k14

ND103356

SPRING

2шт.

k16

ND103355

SPRING CUP

2шт.

k18

ND102356

PISTON

1шт.

k50

ND102298

O-RING

1шт.

m1b

ND102446

VALVE BLOCK (USED)

1шт.

m10

ND102391

SOLENOID VALVE

1шт.

m12

ND102394

PLUG

6шт.

m14

ND102474

PLUG

2шт.

m16

ND102390

BOLT

4шт.

k0nn

ND103354

PLUG

Incl. Ref. K10 & K50

1шт.

m0b2

ND102450

CONTROL VALVE

Incl. Ref. M10, M12, M14, M16, M1B, T3U3, U5U3

1шт.

t3u3

ND102416

PORT

1шт.

u5u3

ND102448

PORT

2шт.
