(35.353.17[01]) - DRIVE ASSY, REAR WHEELS (GROUP 98) (ND106520)

Запчасти Case SV216 (35.353.17[01]) - DRIVE ASSY, REAR WHEELS (GROUP 98) (ND106520) (35) - HYDRAULIC SYSTEMS

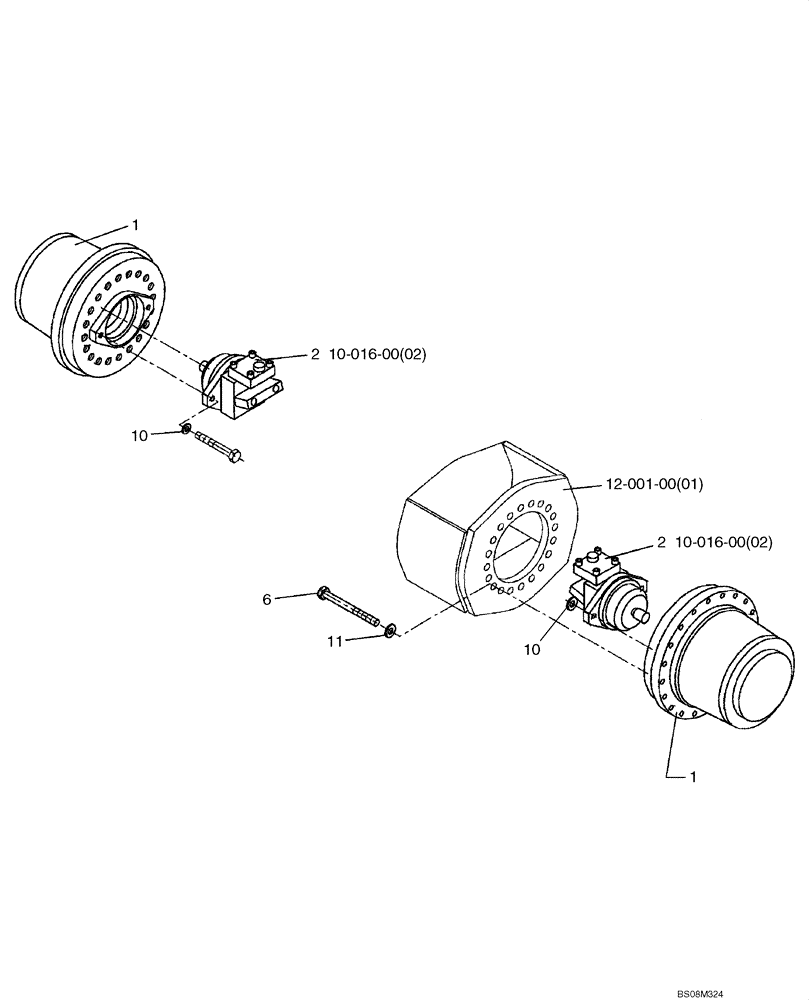

Схема запчастей Case SV216 - (35.353.17[01]) - DRIVE ASSY, REAR WHEELS (GROUP 98) (ND106520) (35) - HYDRAULIC SYSTEMS
6
10-016-00(02)
12-001-00(01)
10
11
2
1
1
10-016-00(02)
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DRIVE OF REAR WHEELS (ND106520) (GROUP 98)

1шт.

1

ND105941

REDUCER

2шт.

2

ND135693

HYDRAULIC MOTOR

Replaces ND090792 Motor, Hydraulic

2шт.

6

ND021241

BOLT

M20 x 65

40шт.

10

ND035943

WASHER

ID 16

4шт.

11

ND035944

WASHER

ID 20

40шт.
