(35.353.16) - DRIVE ASSY, REAR WHEELS, AUX. TRANSMISSION (GROUP 97) (84420118) - NARROW VERSION

Запчасти Case SV216 (35.353.16) - DRIVE ASSY, REAR WHEELS, AUX. TRANSMISSION (GROUP 97) (84420118) - NARROW VERSION (35) - HYDRAULIC SYSTEMS

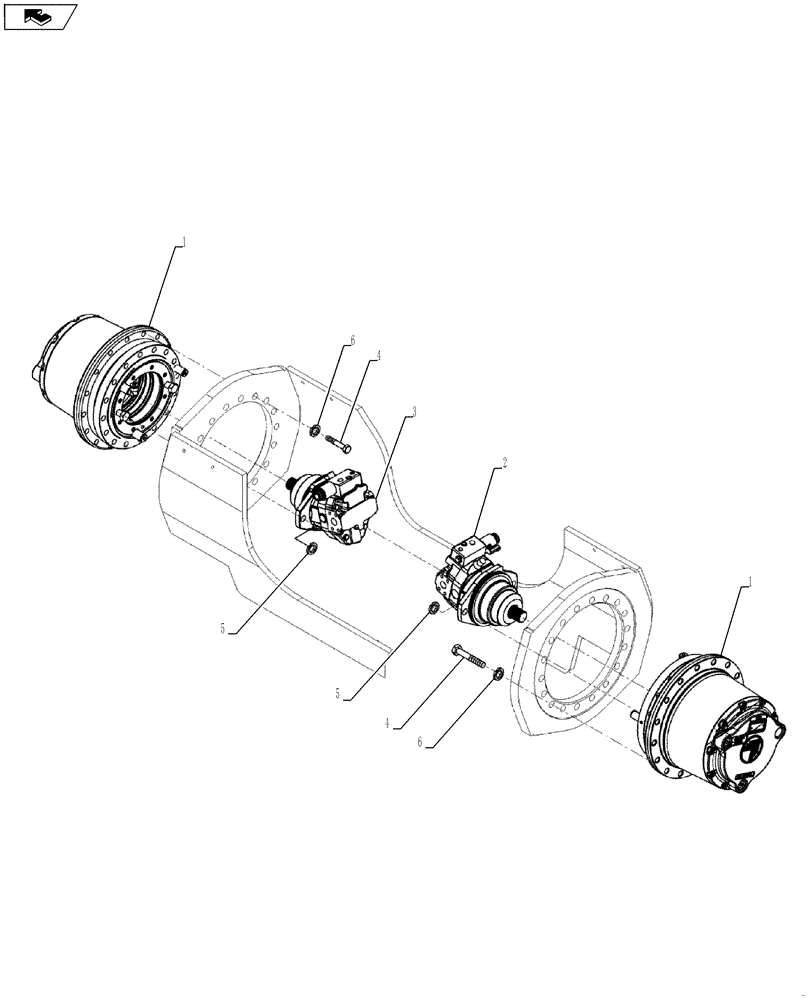

Схема запчастей Case SV216 - (35.353.16) - DRIVE ASSY, REAR WHEELS, AUX. TRANSMISSION (GROUP 97) (84420118) - NARROW VERSION (35) - HYDRAULIC SYSTEMS
6
3
4
1
2
1
4
5
home
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND105941

REDUCER

Aux. Transmission

2шт.

2

84419958

HYDRAULIC MOTOR

1шт.

3

84420119

HYDRAULIC MOTOR

1шт.

4

ND021241

BOLT

40шт.

5

ND035943

WASHER

4шт.

6

ND035944

WASHER

Spring

40шт.
