(35.353.15[01]) - DRIVE ASSY, REAR WHEELS (GROUP 95) (ND103104)

Запчасти Case SV216 (35.353.15[01]) - DRIVE ASSY, REAR WHEELS (GROUP 95) (ND103104) (35) - HYDRAULIC SYSTEMS

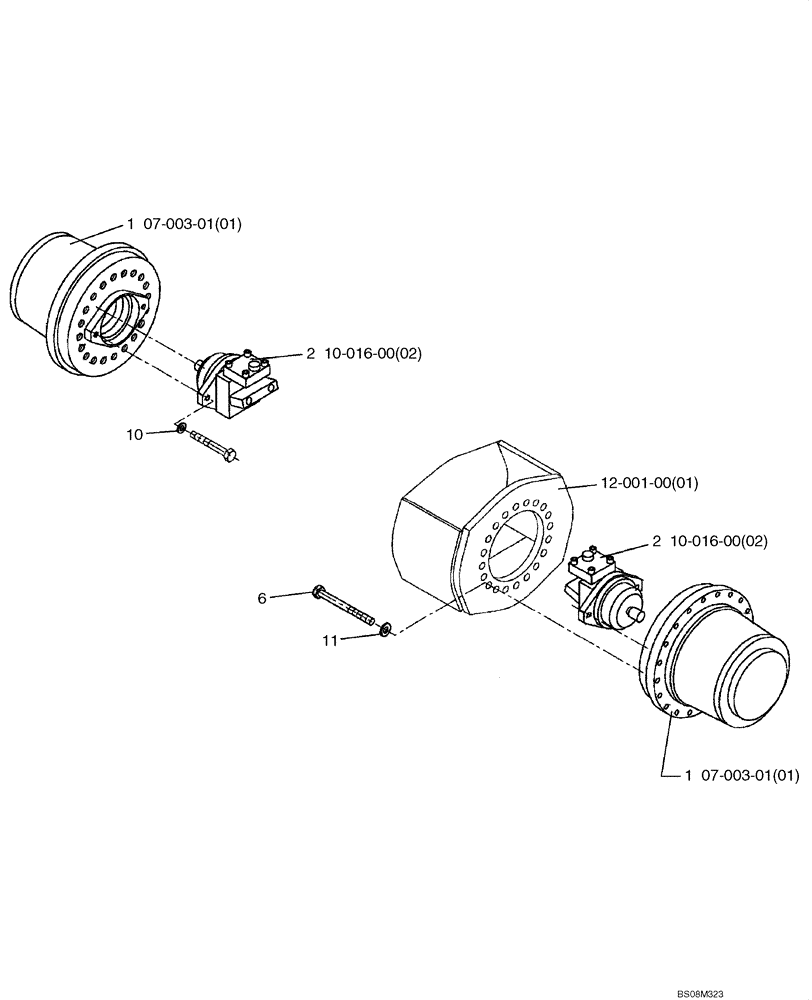

Схема запчастей Case SV216 - (35.353.15[01]) - DRIVE ASSY, REAR WHEELS (GROUP 95) (ND103104) (35) - HYDRAULIC SYSTEMS
10-016-00(02)
10-016-00(02)
07-003-01(01)
11
1
2
2
10
07-003-01(01)
1
12-001-00(01)
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DRIVE OF REAR WHEELS (ND103104) (GROUP 95)

1шт.

1

ND101767

REDUCER

2шт.

2

ND135693

HYDRAULIC MOTOR

Replaces ND090792 Motor, Hydraulic

2шт.

6

ND021241

BOLT

M20 x 65

40шт.

10

ND035943

WASHER

ID 16

4шт.

11

ND035944

WASHER

ID 20

40шт.
