(35.353.09) - REGULATOR, HYDRAULIC DRUM TRAVEL MOTOR (GROUP 31-6 B) (ND090920)

Запчасти Case SV216 (35.353.09) - REGULATOR, HYDRAULIC DRUM TRAVEL MOTOR (GROUP 31-6 B) (ND090920) (35) - HYDRAULIC SYSTEMS

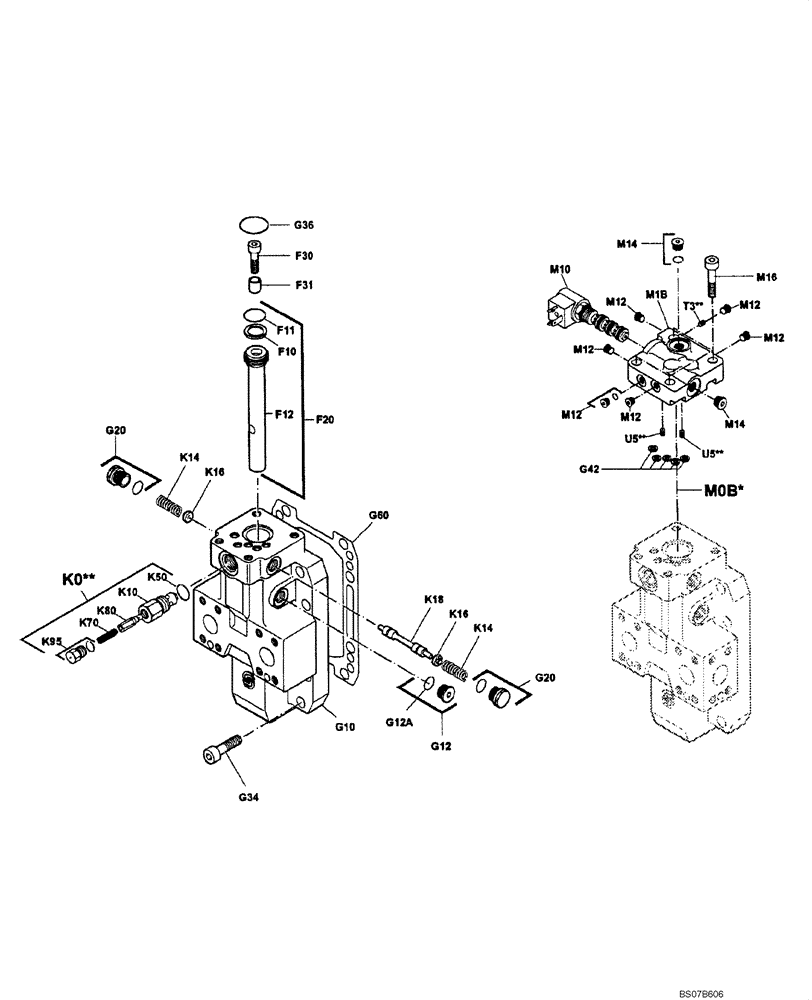

Схема запчастей Case SV216 - (35.353.09) - REGULATOR, HYDRAULIC DRUM TRAVEL MOTOR (GROUP 31-6 B) (ND090920) (35) - HYDRAULIC SYSTEMS
k10
m10
g20
k18
g60
f30
f31
m12
m1b
f11
g12a
m12
k14
k70
m12
m16
k16
u5
g20
m12
k16
g42
f20
g10
g34
f12
m14
k50
k80
k14
u5
m12
g12
k95
m14
g36
f10
m12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

REGULATOR, HYDRAULIC DRUM TRAVEL MOTOR (ND090920) (GROUP 31-6 B)

1шт.

f10

ND102419

SEAL

1шт.

f11

ND102393

O-RING

1шт.

f12

ND102413

PISTON

1шт.

f20

ND102420

PISTON

1шт.

g10

ND102412

COVER

1шт.

g12

ND102474

PLUG

1шт.

g20

ND102422

PLUG

2шт.

g34

ND102498

BOLT

8шт.

g36

ND102415

O-RING

1шт.

g42

ND102552

SEAL

5шт.

g60

ND102377

GASKET

1шт.

g80

ND102493

PLUG

2шт.

k10

ND102456

HYD CONNECTOR

1шт.

k14

ND102555

SPRING

2шт.

k16

ND102365

SPRING CUP

2шт.

k18

ND102356

PISTON

1шт.

k50

ND102298

O-RING

1шт.

k70

ND102430

SPRING

1шт.

k80

ND102457

ROLLER BEARING

1шт.

k95

ND102438

PLUG

1шт.

m1b

ND102446

VALVE BLOCK (USED)

1шт.

m10

ND102391

SOLENOID VALVE

1шт.

m12

ND102394

PLUG

6шт.

m14

ND102474

PLUG

2шт.

m16

ND102390

BOLT

4шт.

k0a3

ND102458

HYDRAULIC VALVE

1шт.

m0b2

ND102450

CONTROL VALVE

1шт.

t3u3

ND102416

PORT

1шт.

u5u3

ND102448

PORT

2шт.
