(35.353.04[02]) - LINES, FRONT DRUM DRIVE (P.I.N. DDD001215 AND AFTER) (GROUP 312) (ND142125)

Запчасти Case SV216 (35.353.04[02]) - LINES, FRONT DRUM DRIVE (P.I.N. DDD001215 AND AFTER) (GROUP 312) (ND142125) (35) - HYDRAULIC SYSTEMS

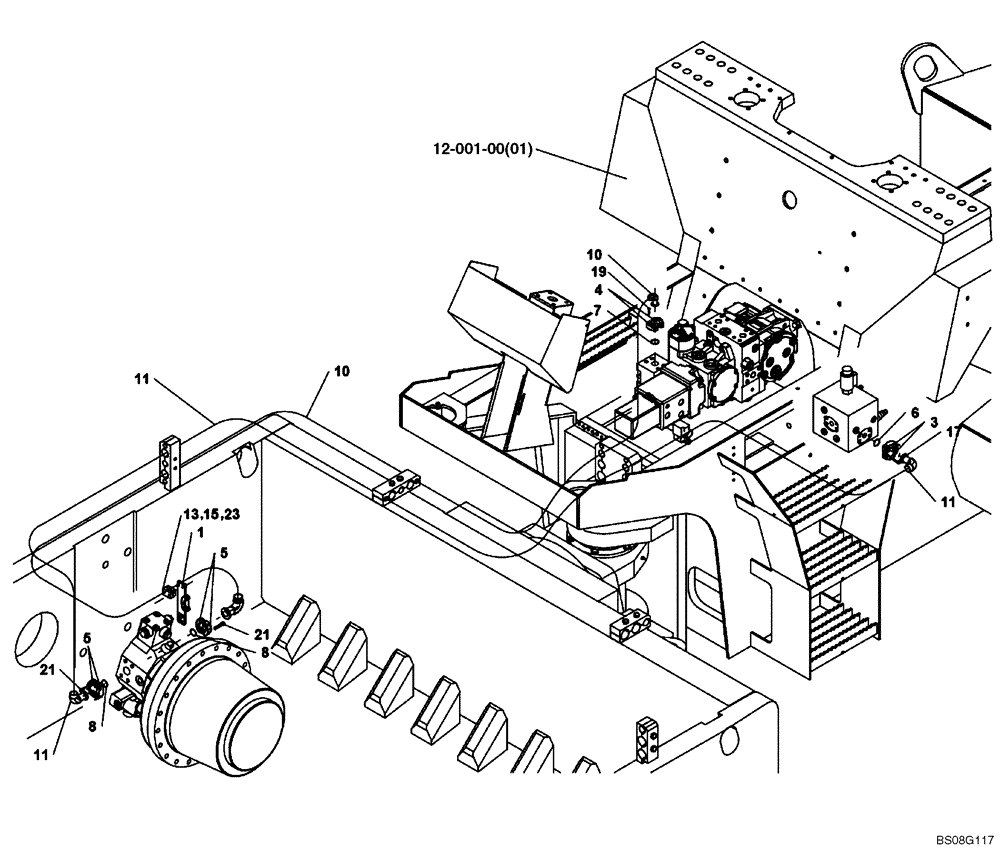

Схема запчастей Case SV216 - (35.353.04[02]) - LINES, FRONT DRUM DRIVE (P.I.N. DDD001215 AND AFTER) (GROUP 312) (ND142125) (35) - HYDRAULIC SYSTEMS
13
11
21
12-001-00(01)
23
5
4
15
21
10
11
10
6
1
8
5
19
17
3
11
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, FRONT DRUM DRIVE (ND142125) (GROUP 312)

1шт.

1

ND031991

SUPPORT

1шт.

3

ND062007

CLAMP

2шт.

4

ND062008

HALF-COLLAR

2шт.

5

ND062009

FLANGE

4шт.

6

ND079932

O-RING

1шт.

7

ND079933

O-RING

1шт.

8

ND079934

O-RING

2шт.

10

ND133273

HOSE

1шт.

11

ND140466

HOSE

1шт.

13

ND061999

CLAMP

1шт.

15

ND024233

BOLT

2шт.

17

ND021183

BOLT

4шт.

19

ND021303

BOLT

4шт.

21

ND034063

BOLT

8шт.

23

ND029248

WASHER

2шт.
