(35.353.04[01]) - LINES, FRONT DRUM DRIVE (UNTIL P.I.N. DDD001214) (GROUP 312) (ND133341)

Запчасти Case SV216 (35.353.04[01]) - LINES, FRONT DRUM DRIVE (UNTIL P.I.N. DDD001214) (GROUP 312) (ND133341) (35) - HYDRAULIC SYSTEMS

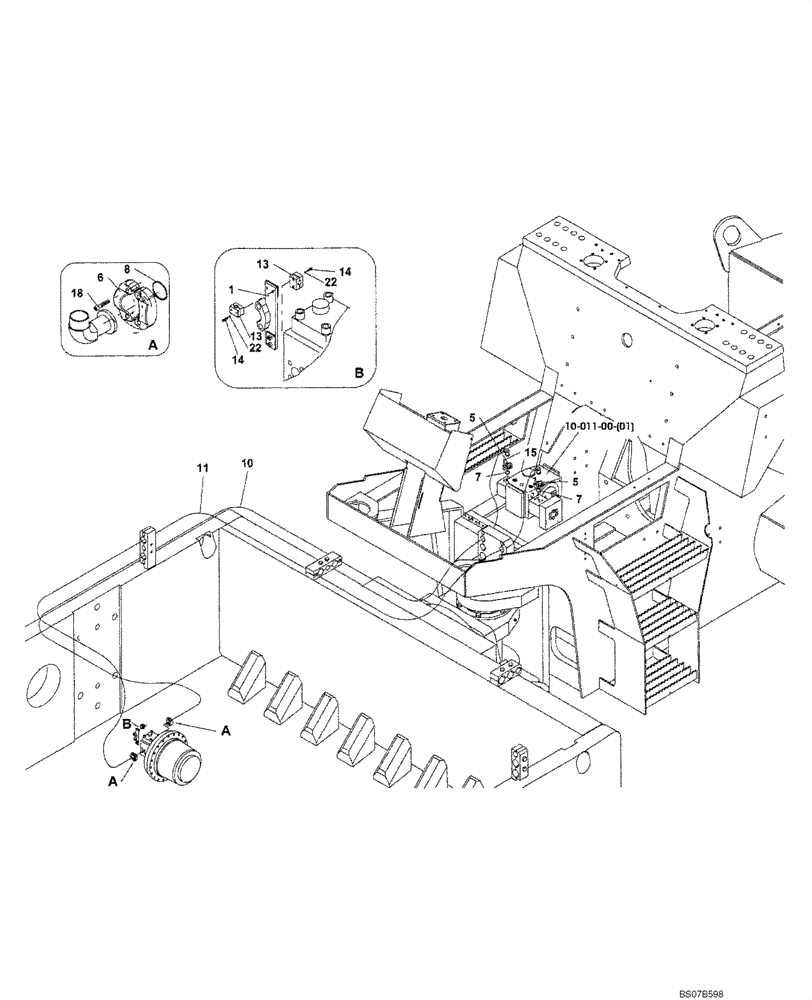

Схема запчастей Case SV216 - (35.353.04[01]) - LINES, FRONT DRUM DRIVE (UNTIL P.I.N. DDD001214) (GROUP 312) (ND133341) (35) - HYDRAULIC SYSTEMS
7
11
18
1
14
22
13
5
7
14
8
5
6
10
13
22
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, FRONT DRUM DRIVE (ND133341) (GROUP 312)

1шт.

1

ND031991

SUPPORT

1шт.

5

ND062008

HALF-COLLAR

4шт.

6

ND062009

FLANGE

3шт.

7

ND079933

O-RING

2шт.

8

ND079934

O-RING

2шт.

10

ND133173

BRACKET

1шт.

11

ND133272

HOSE

1шт.

13

ND061999

CLAMP

1шт.

14

ND024233

BOLT

2шт.

15

ND024260

BOLT

8шт.

18

ND034063

BOLT

8шт.

22

ND029248

WASHER

2шт.
