(35.353.03) - LINES, FRONT DRUM DRIVE ATC (UNTIL P.I.N. DDD001214) (GROUP 313) (ND133339)

Запчасти Case SV216 (35.353.03) - LINES, FRONT DRUM DRIVE ATC (UNTIL P.I.N. DDD001214) (GROUP 313) (ND133339) (35) - HYDRAULIC SYSTEMS

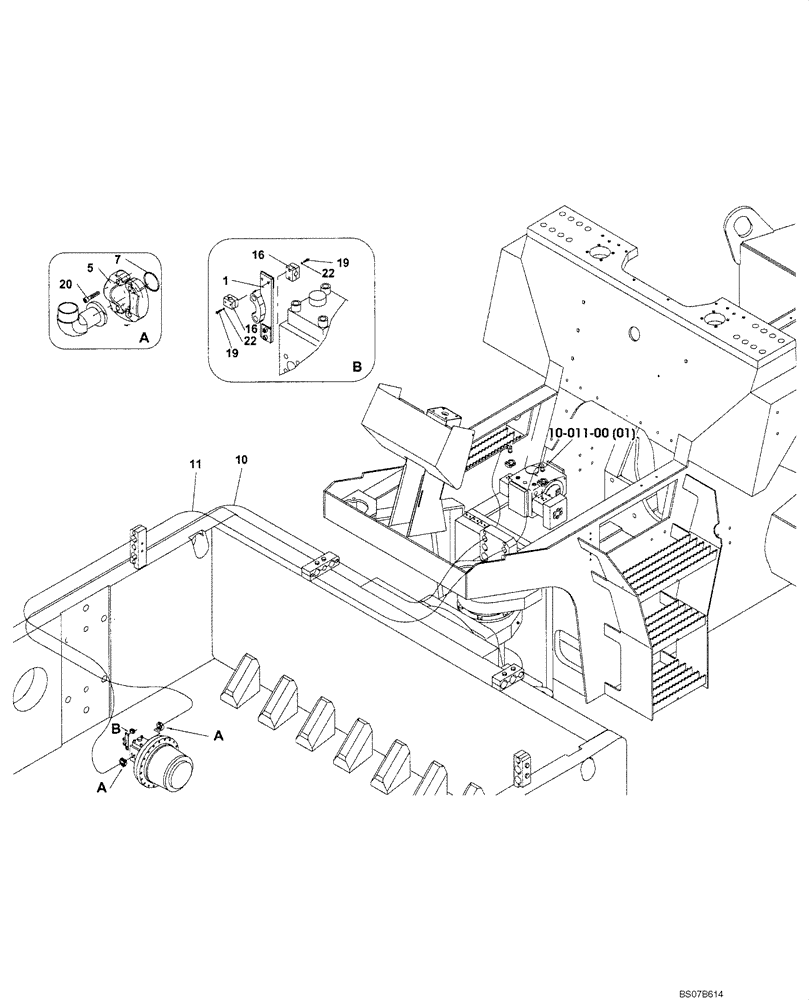

Схема запчастей Case SV216 - (35.353.03) - LINES, FRONT DRUM DRIVE ATC (UNTIL P.I.N. DDD001214) (GROUP 313) (ND133339) (35) - HYDRAULIC SYSTEMS
11
16
22
19
1
7
19
16
5
10
20
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LINES, FRONT DRUM DRIVE (ND133339) (GROUP 313)

1шт.

1

ND031991

SUPPORT

1шт.

5

ND062009

FLANGE

3шт.

7

ND079934

O-RING

2шт.

10

ND133277

HOSE

1шт.

11

ND033276

HOSE

1шт.

16

ND061999

CLAMP

2шт.

19

ND024233

BOLT

4шт.

20

ND034063

BOLT

8шт.

22

ND029248

WASHER

4шт.
