(35.353.01[02]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (P.I.N. DDD001215 AND AFTER) (GROUP 305) (ND142127)

Запчасти Case SV216 (35.353.01[02]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (P.I.N. DDD001215 AND AFTER) (GROUP 305) (ND142127) (35) - HYDRAULIC SYSTEMS

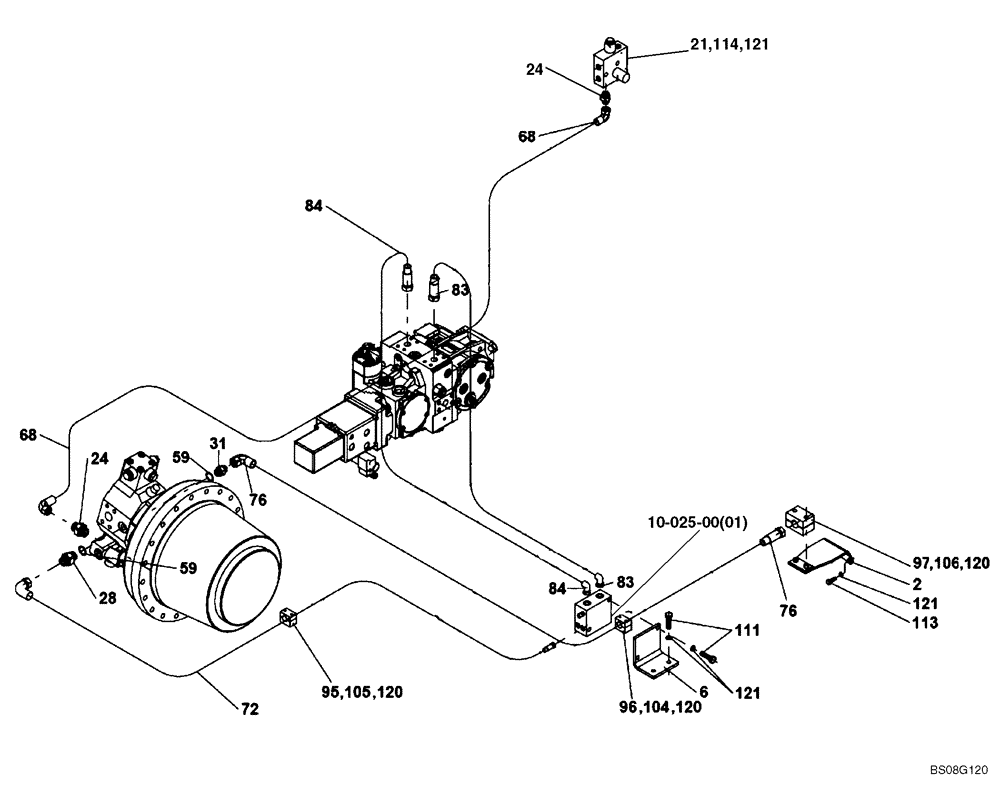

Схема запчастей Case SV216 - (35.353.01[02]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (P.I.N. DDD001215 AND AFTER) (GROUP 305) (ND142127) (35) - HYDRAULIC SYSTEMS
84
59
24
72
121
28
83
95
111
105
21
76
84
121
104
114
31
24
113
96
68
120
121
120
106
6
10-025-00(01)
59
97
76
83
2
120
68
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (ND142127) (GROUP 305)

1шт.

2

ND142148

BRACKET

1шт.

6

ND144902

HOLDER

HOLDER, Replaces ND139614 Holder Used On Some Models

1шт.

24

ND062153

HYD CONNECTOR

2шт.

28

ND138443

HYD CONNECTOR

1шт.

31

ND139010

HYD CONNECTOR

1шт.

59

ND079939

O-RING

2шт.

68

ND127242

HOSE

1шт.

72

ND140468

HOSE

1шт.

76

ND133287

HOSE

1шт.

83

ND139991

HOSE

1шт.

84

ND139992

HOSE

1шт.

95

ND064799

CLAMP

1шт.

96

ND061999

CLAMP

1шт.

97

ND064810

SLEEVE

Clamp

1шт.

104

ND024233

BOLT

2шт.

105

ND024235

BOLT

2шт.

106

ND024236

BOLT

2шт.

111

ND021301

BOLT

2шт.

113

ND021197

BOLT

2шт.

120

ND029248

WASHER

4шт.

121

ND035941

WASHER

2шт.
