(35.353.01[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (UNTIL DDD001214) (GROUP 305) (ND133335)

Запчасти Case SV216 (35.353.01[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (UNTIL DDD001214) (GROUP 305) (ND133335) (35) - HYDRAULIC SYSTEMS

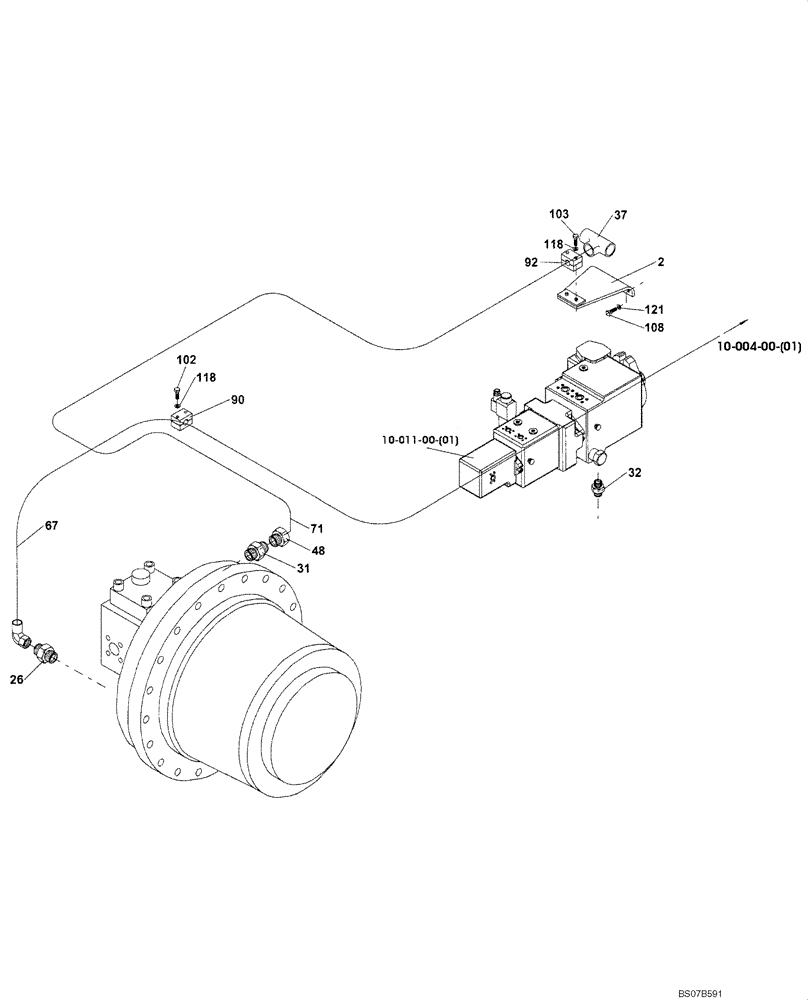

Схема запчастей Case SV216 - (35.353.01[01]) - HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (UNTIL DDD001214) (GROUP 305) (ND133335) (35) - HYDRAULIC SYSTEMS
26
32
121
31
92
67
118
71
2
37
118
102
108
48
103
90
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

HYDRAULIC SYSTEM OF TRAVEL, DRUM (B) (ND133335) (GROUP 305)

1шт.

2

ND103340

SUPPORT

1шт.

26

ND062153

HYD CONNECTOR

1шт.

31

ND062135

HYD CONNECTOR

1шт.

32

ND062136

HYD CONNECTOR

1шт.

37

ND062335

TEE

1шт.

48

ND062433

RESTRICTOR

1шт.

67

ND127242

HOSE

1шт.

71

ND133287

HOSE

1шт.

90

ND064799

CLAMP

1шт.

92

ND064809

CLAMP

1шт.

102

ND024235

BOLT

2шт.

103

ND024234

BOLT

2шт.

108

ND021197

BOLT

2шт.

118

ND029248

WASHER

4шт.

121

ND035941

WASHER

4шт.
