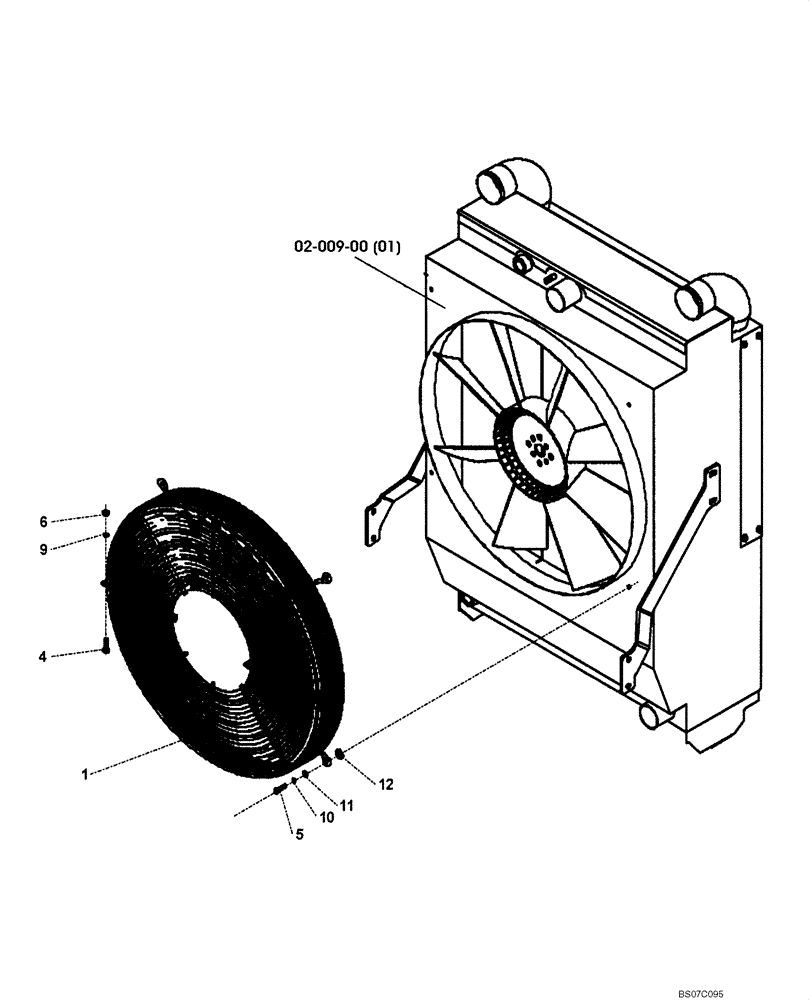

Запчасти Case SV216 (10.414.02) - GUARD, FAN (GROUP 591) (ND133976) (10) - ENGINE

REF

INSTRUCTION

GUARD, FAN (ND133976) (GROUP 591)

1шт.

1

ND133696

PROTECTIVE COVER

Fan

1шт.

4

ND021288

BOLT

4шт.

5

ND021296

BOLT

4шт.

6

ND021847

NUT

4шт.

9

ND118926

WASHER

4шт.

10

ND035940

SPRING WASHER

4шт.

11

ND029285

WASHER

Replaces ND118422 Washer

4шт.

12

ND029291

WASHER

Qty Was 3

3-7шт.
