(10.254.01) - INTAKE AND EXHAUST, ENGINE MOUNTING (GROUP 106) (ND133165)

Запчасти Case SV216 (10.254.01) - INTAKE AND EXHAUST, ENGINE MOUNTING (GROUP 106) (ND133165) (10) - ENGINE

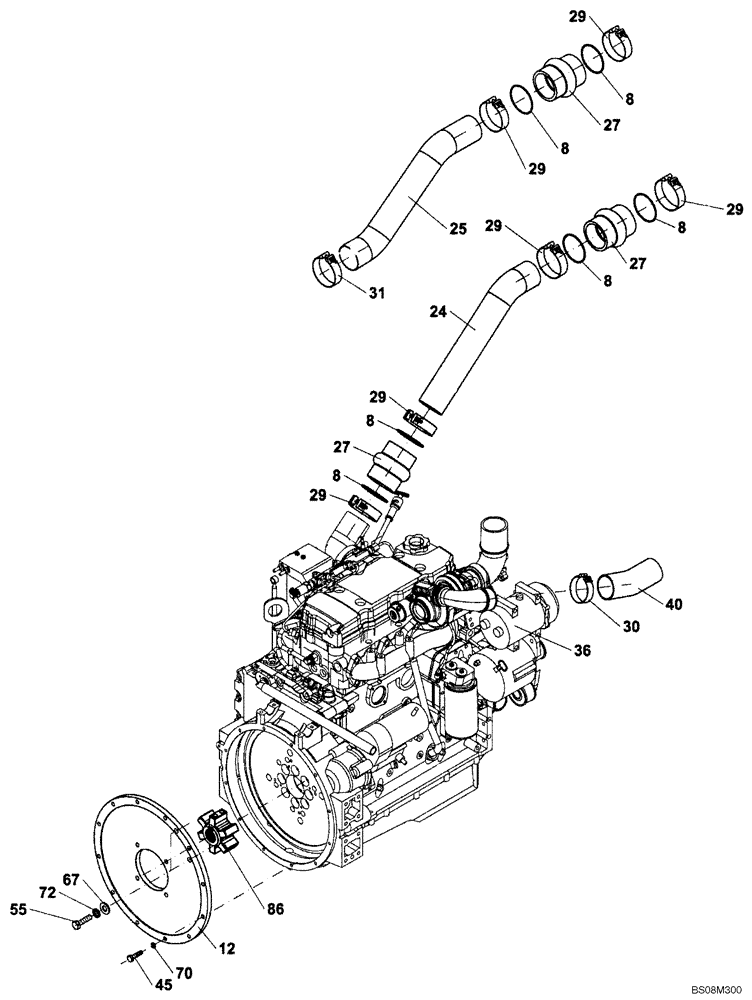

Схема запчастей Case SV216 - (10.254.01) - INTAKE AND EXHAUST, ENGINE MOUNTING (GROUP 106) (ND133165) (10) - ENGINE
70
29
29
29
8
25
45
8
8
40
36
27
67
72
8
24
30
29
8
29
8
31
27
29
12
55
27
86
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

INTAKE AND EXHAUST, ENGINE MOUNTING (ND133165) (GROUP 106)

1шт.

8

ND133527

RING

Replaces ND117593 Ring

4шт.

12

ND119074

FLANGE

1шт.

24

ND133995

TUBE

Replaces ND133177 Tube

1шт.

25

ND133994

EXHAUST SYSTEM PIPE

Replaces ND133170 Pipe

1шт.

27

ND133185

COUPLING

Qty Was 2

2-3шт.

29

ND135115

HOSE CLAMP

Replaces ND133148 Clamp

6шт.

30

ND135110

CLIP

HOSE, CLAMP; Replaces ND131248 Hose Clamp

1шт.

31

ND133086

HOSE CLAMP

1шт.

36

NSS

NOT SOLD SEPARAT

ENGINE CUMMINS; See Your Nearest Cummins Engine Dealer for Service of Engine Components

1шт.

40

ND131071

ELBOW UNION

Union Elbow

1шт.

45

ND021195

BOLT

12шт.

55

ND021327

BOLT

2шт.

67

ND029253

WASHER

2шт.

70

ND035941

WASHER

Qty Was 16

12-16шт.

72

ND035943

WASHER

2шт.

86

ND091164

SPACER

1шт.
