(10.202.01) - AIR FILTRATION AND EXHAUST, ENGINE (GROUP 136) (ND131863)

Запчасти Case SV216 (10.202.01) - AIR FILTRATION AND EXHAUST, ENGINE (GROUP 136) (ND131863) (10) - ENGINE

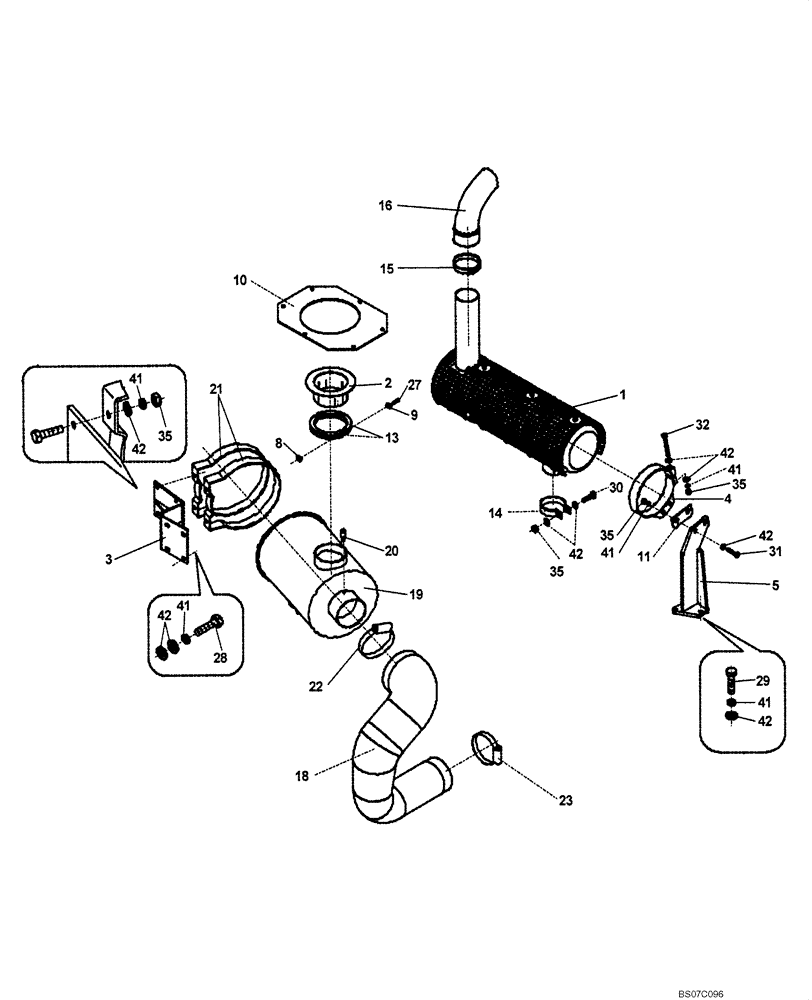

Схема запчастей Case SV216 - (10.202.01) - AIR FILTRATION AND EXHAUST, ENGINE (GROUP 136) (ND131863) (10) - ENGINE
42
35
27
35
42
21
8
41
11
3
42
4
30
20
19
41
41
5
2
42
29
41
13
41
16
31
28
18
42
32
9
35
10
22
14
15
35
23
42
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

AIR FILTRATION & EXHAUST, ENGINE (ND131863) (GROUP 136)

1шт.

1

ND133868

MUFFLER

Exhaust, Serial Range: -NENTD3473

1шт.

1

47847581

MUFFLER

, Start Serial: NENTD3474

1шт.

2

ND133982

HOSE CLIP

1шт.

3

ND133975

BRACKET, SUPPORTING

Filter Holder

1шт.

4

ND103369

CLAMP

Use With Muffler ND133868

1шт.

5

ND135340

BRACKET, SUPPORTING

Replaces ND131904 Bracket Supporting, Serial Range: -NENTD3473

1шт.

5

47847583

SUPPORT

, Start Serial: NENTD3474

1шт.

8

ND133516

NUT

2шт.

9

ND133515

WASHER

2шт.

10

ND133981

MOUNTING PLATE

Steel

1шт.

11

ND131946

BACKING PLATE

Spreader; If Used

1шт.

13

ND133978

TUBE SPACER

2шт.

14

ND116083

CLAMP

1шт.

15

ND098745

CLAMP

1шт.

16

ND106299

EXTENSION

1шт.

18

ND133979

ELBOW UNION

Union Elbow

1шт.

19

ND133431

AIR CLEANER

1шт.

19a

ND133433

AIR FILTER

Outer, not illustrated

1шт.

19b

ND133434

AIR FILTER

Inner, not illustrated

1шт.

20

ND065567

INDICATOR

1шт.

21

ND133432

COLLAR CLAMP

2шт.

22

ND133951

HOSE CLAMP

1шт.

23

ND133325

HOSE CLAMP

1шт.

27

ND024248

BOLT

2шт.

28

ND021302

BOLT

4шт.

29

ND021303

BOLT

5шт.

30

ND021304

BOLT

3шт.

31

ND021305

BOLT

2шт.

32

ND021206

BOLT

1шт.

35

ND034088

NUT

8шт.

41

ND035941

WASHER

14шт.

42

ND029266

WASHER

20шт.
