(90.160.03) - INSULATOR, PLATFORM (GROUP 155) (ND012015)

Запчасти Case SV216 (90.160.03) - INSULATOR, PLATFORM (GROUP 155) (ND012015) (90) - PLATFORM, CAB, BODYWORK AND DECALS

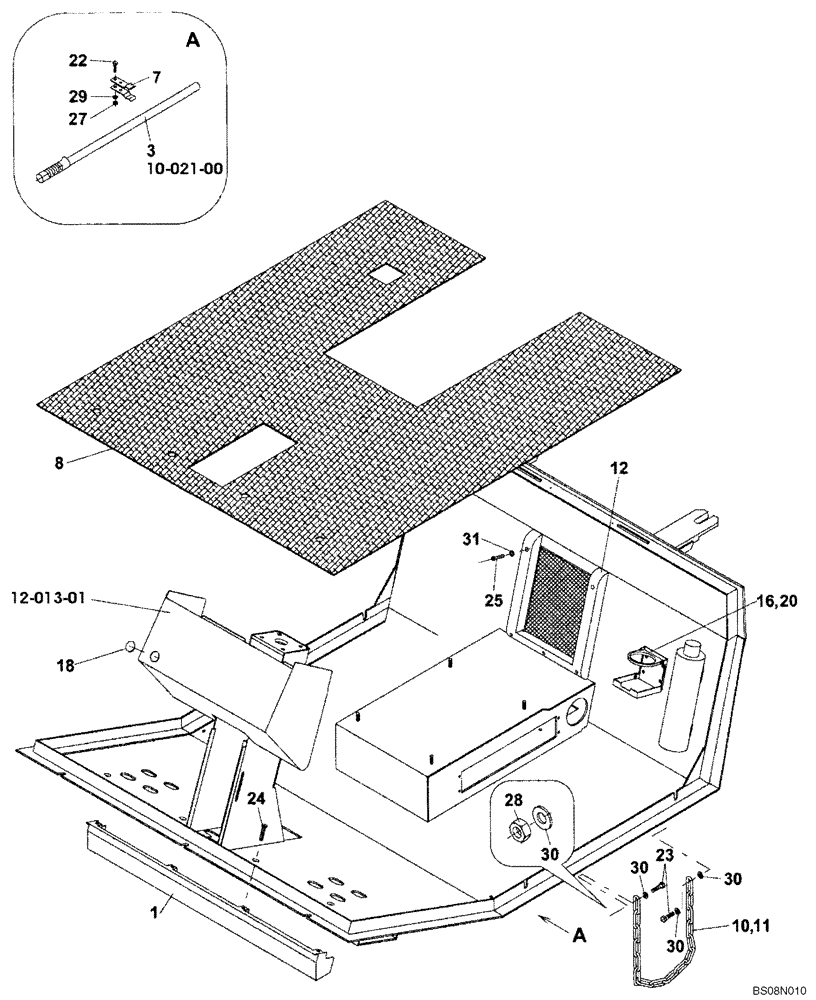

Схема запчастей Case SV216 - (90.160.03) - INSULATOR, PLATFORM (GROUP 155) (ND012015) (90) - PLATFORM, CAB, BODYWORK AND DECALS
29
30
30
24
11
22
1
16
8
12-013-01
3
20
10-021-00
12
27
30
18
7
30
23
10
25
28
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

INSULATOR, PLATFORM (ND012015) (GROUP 155)

1шт.

1

ND029730

COVER

1шт.

3

ND108074

PIPE

1шт.

7

ND109488

CLAMP

2шт.

8

ND017889

INSULATOR

1шт.

10

ND050824

LINK CHAIN

1шт.

11

ND101585

PLASTIC-RUBBER TUBE

1шт.

12

ND064533

NET

1шт.

16

ND090001

SUPPORT

1шт.

18

ND127750

PLUG

1шт.

20

ND025008

SELF-TAP SCREW

4шт.

22

ND021290

BOLT

2шт.

23

ND021293

BOLT

2шт.

24

ND024388

SCREW

4шт.

25

ND024967

SELF-TAP SCREW

5шт.

27

ND027300

NUT

2шт.

28

ND027301

NUT

1шт.

29

ND029248

WASHER

4шт.

30

ND029249

WASHER

4шт.

31

ND029246

WASHER

5шт.
