(90.100.02) - MOUNTING, HOOD (GROUP 205) (ND133636)

Запчасти Case SV216 (90.100.02) - MOUNTING, HOOD (GROUP 205) (ND133636) (90) - PLATFORM, CAB, BODYWORK AND DECALS

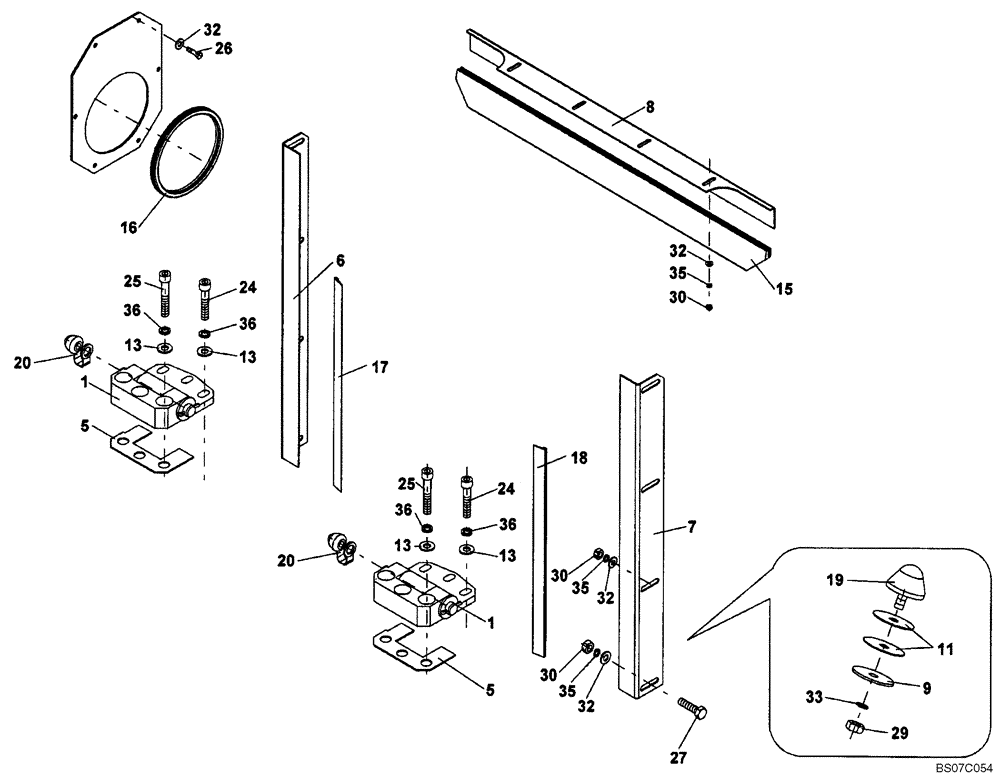

Схема запчастей Case SV216 - (90.100.02) - MOUNTING, HOOD (GROUP 205) (ND133636) (90) - PLATFORM, CAB, BODYWORK AND DECALS
36
1
32
11
30
33
35
24
36
1
29
36
5
19
13
8
15
24
18
30
32
13
5
7
35
13
25
6
32
16
26
30
20
9
13
25
17
32
35
20
27
36
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

MOUNTING, HOOD (ND133636) (GROUP 205)

1шт.

1

ND052496

HINGE

2шт.

5

ND052341

WASHER

2шт.

6

ND133651

BRACKET, SUPPORTING

Side Batten

1шт.

7

ND133650

BRACKET, SUPPORTING

Side Batten

1шт.

8

ND133645

BRACKET, SUPPORTING

Bar

1шт.

9

ND103516

WASHER

2шт.

11

ND104572

WASHER

4шт.

13

ND029267

WASHER

12шт.

15

ND133661

RUBBER SEAL

1шт.

16

ND107188

SEAL

1шт.

17

ND133659

RUBBER SEAL

1шт.

18

ND133660

RUBBER SEAL

1шт.

19

ND079088

RUBBER BUMPER

2шт.

20

ND064758

PLUG

2шт.

24

ND024272

BOLT

6шт.

25

ND024274

BOLT

6шт.

26

ND021287

BOLT,M8 x 16

6шт.

27

ND021289

BOLT

4шт.

29

ND034087

NUT

2шт.

30

ND021847

NUT

12шт.

32

ND118926

WASHER

18шт.

33

ND035940

SPRING WASHER

2шт.

35

ND029290

WASHER

10шт.

36

ND035942

WASHER

12шт.
