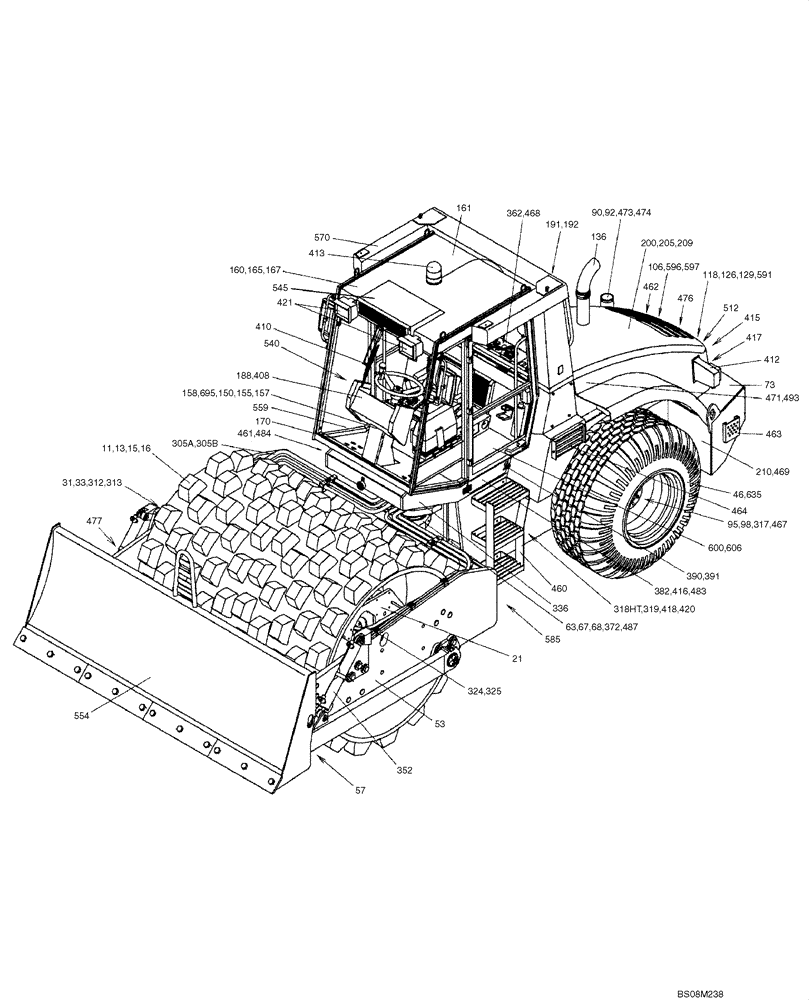

Запчасти Case SV216 (01-001-00[01]) - PICTORIAL INDEX / COMPLETE CAB / PAD FOOT DRUM (05) - SERVICE & MAINTENANCE

REF

INSTRUCTION

PICTORIAL INDEX - Complete Cab - Pad Foot Drum

1шт.

11

REF

INSTRUCTION

Vibrating Drum, Pad Foot - See Figure 12-011-01 (01)

1шт.

13

REF

INSTRUCTION

Vibrating Drum, Pad Foot - See Figure 12-011-00 (01)

1шт.

15

REF

INSTRUCTION

Rubber Mounting - See Figure 12-008-00 (02)

1шт.

16

REF

INSTRUCTION

Rubber Mountings - See Figure 12-008-00 (03)

1шт.

21

REF

INSTRUCTION

Vibrator, Drum - See Figure 12-012-00 (01)

1шт.

31

REF

INSTRUCTION

Drum Drive, Front - See Figure 07-001-00 (01)

1шт.

33

REF

INSTRUCTION

Drum Drive, Front - See Figure 07-001-00 (02)

1шт.

46

REF

INSTRUCTION

Wheel, Rear - See Figure 07-004-00 (02)

1шт.

53

REF

INSTRUCTION

Frame, Drum - See Figure 12-005-00 (01)

1шт.

57

REF

INSTRUCTION

Scraper, Pad Foot Drum - See Figure 12-006-00 (02)

1шт.

63

REF

INSTRUCTION

Articulation Joint - See Figure(s) 12-002-00 (01)

1шт.

67

REF

INSTRUCTION

Hose Holder - See Figure 12-003-01 (01)

1шт.

68

REF

INSTRUCTION

Lock, Articulation Joint - See Figure 12-004-00 (01)

1шт.

73

REF

INSTRUCTION

Frame, Rear - See Figure 12-001-00 (01)

1шт.

90

REF

INSTRUCTION

Cap, Fuel Tank - See Figure 03-003-00 (02)

1шт.

92

REF

INSTRUCTION

Lock, Fuel - See Figure 03-003-01 (01)

1шт.

95

REF

INSTRUCTION

Drive Of Rear Wheels - See Figure 07-002-00 (01)

1шт.

98

REF

INSTRUCTION

Drive Of Rear Axle - See Figure 07-002-00 (02)

1шт.

106

REF

INSTRUCTION

Engine Mounting - See Figure 02-001-00 (03)

1шт.

118

REF

INSTRUCTION

Fan Mounting - See Figure 02-008-00 (01)

1шт.

126

REF

INSTRUCTION

Radiator Installation - See Figure 02-009-00 (01)

1шт.

129

REF

INSTRUCTION

Drain, Radiator - See Figure 02-010-00 (01)

1шт.

136

REF

INSTRUCTION

Engine - Air Filtration And Exhaust - See Figure 02-005-00 (02)

1шт.

150

REF

INSTRUCTION

Platform, Operator - See Figure 12-013-01 (01)

1шт.

155

REF

INSTRUCTION

Insulator, Platform - See Figure 12-013-00 (01)

1шт.

157

REF

INSTRUCTION

Floor Mat, Platform - See Figure12-013-02 (01)

1шт.

158

REF

INSTRUCTION

Seat Assy - See Figure 12-013-03 (01)

1шт.

160

REF

INSTRUCTION

Cab Weldment - See Figure 12-020-01-(00)

1шт.

161

REF

INSTRUCTION

Cab, FOPS - See Figure 12-020-02 (01)

1шт.

165

REF

INSTRUCTION

Cab Complete - See Figure(s) 12-020-01 (01) / 12-020-03 (01) / 12-015-00 (01)

1шт.

167

REF

INSTRUCTION

Cab, Trim - See Figure 12-020-00 (01)

1шт.

170

REF

INSTRUCTION

Platform Mounting - See Figure 12-014-00 (01)

1шт.

188

REF

INSTRUCTION

Steering Control - See Figure 06-001-00 (01)

1шт.

191

REF

INSTRUCTION

Precleaner, Air - See Figure 02-007-00 (02)

1шт.

192

REF

INSTRUCTION

Cover,Air Inlet - See Figure 02-007-01 (01)

1шт.

200

REF

INSTRUCTION

Hood, Engine - See Figure 12-023-00 (01)

1шт.

205

REF

INSTRUCTION

Hood, Mounting - See Figure 12-024-00 (03)

1шт.

209

REF

INSTRUCTION

Cover, Battery - See Figure 12-001-00 (20)

1шт.

210

REF

INSTRUCTION

Fender Parts - See Figure 12-026-00 (01)

1шт.

305a

REF

INSTRUCTION

Hydraulic System Of Travel - See Figure(s) 10-004-00 (01) And 10-004-00 (01B)

1шт.

305b

REF

INSTRUCTION

Hydraulic System Of Travel - See Figure(s) 10-003-00 (01) And 10-003-00 (01B)

1шт.

312

REF

INSTRUCTION

Hyd. Lines, Front Drum Drive - See Figure(s) 10-003-01 (01) / 10-003-01 (03A)

1шт.

313

REF

INSTRUCTION

Hyd. Lines, Front Drum Drive ATC - See Figure 10-003-02 (01)

1шт.

317

REF

INSTRUCTION

Valve, Hydraulic Lock - See Figure 09-001-00 (01)

1шт.

318ht

REF

INSTRUCTION

Valve, High Traction Anti Slip - See Figure 09-001-03 (01)

1шт.

319

REF

INSTRUCTION

High Traction Anti Slip Circuit - See Figure 09-001-01 (01)

1шт.

324

REF

INSTRUCTION

Hyd. Lines, Vibratory Drum - See Figure(s) 10-002-00 (01) And 10-002-00 (01C)

1шт.

325

REF

INSTRUCTION

Hyd. Lines, Vibratory Drum - See Figures(s) 10-002-00 (01A) / 10-002-00 (01B)

1шт.

336

REF

INSTRUCTION

Hydraulic System Of Steering - See Figure 06-002-00 (01)

1шт.

352

REF

INSTRUCTION

Dozer Blade, Hydraulics - See Figure 10-010-01 (01)

1шт.

362

REF

INSTRUCTION

Tank, Hydraulic W/ Electric Pump - See Figure 10-001-00 (02)

1шт.

372

REF

INSTRUCTION

Cylinder, Steering - See Figure 06-006-00 (01)

1шт.

382

REF

INSTRUCTION

Hood And Platform Tilting - See Figure 10-005-01- (01)

1шт.

390

REF

INSTRUCTION

Lines, Hydraulic Diagnostic - See Figure10-009-00 (01A) And 10-009-00 (01B)

1шт.

391

REF

INSTRUCTION

Lines, Hydraulic Diagnostic - See Figure 10-009-00 (01)

1шт.

408

REF

INSTRUCTION

Electrical Installation - See Figure 04-001-00 (03) And 04-001-00 (03B)

1шт.

410

REF

INSTRUCTION

Cab Wiring - See Figure 04-001-01 (02)

1шт.

412

REF

INSTRUCTION

Lamp, Indicator - See Figure(s) 04-001-07 (01) And 04-001-07 (01A)

1шт.

413

REF

INSTRUCTION

Beacon, Flashing - See Figure(s) 04-004-00 (01) And 04-004-00 (01A)

1шт.

415

REF

INSTRUCTION

Alarm, Back Up - See Figure 04-005-00 (01)

1шт.

416

REF

INSTRUCTION

Cab / Engine Hood Tilting, Electrical - See Figure(s) 04-006-00 (01) And 04-006-00 (01A)

1шт.

417

REF

INSTRUCTION

Signal Diode, Hood Tilt - See Figure 04-007-01 (01)

1шт.

418

REF

INSTRUCTION

Lock, Ainti-Slip Control - See Figure(s) 04-002-01 (01) And 04-002-01 (01A)

1шт.

420

REF

INSTRUCTION

Lock, Differential - See Figure 04-007-00 (01)

1шт.

421

REF

INSTRUCTION

Headlamps - See Figure(s) 04-001-06 (01) And 04-001-06 (01A)

1шт.

460

REF

INSTRUCTION

Steps, Platform Access LH - See Figure 12-001-00 (18)

1шт.

461

REF

INSTRUCTION

Steps, Platform Access RH - See Figure 12-001-00 (19)

1шт.

462

REF

INSTRUCTION

Step RH - See Figure 12-001-00 (17)

1шт.

463

REF

INSTRUCTION

Step LH - See Figure 12-001-00 (16)

1шт.

464

REF

INSTRUCTION

Step Upper Left - See Figure 12-001-00 (15)

1шт.

467

REF

INSTRUCTION

Cover, Rear Drive Motor - See Figure 12-001-00 (21)

1шт.

468

REF

INSTRUCTION

Cover, Hydraulic Tank - See Figure 12-001-00 (04)

1шт.

469

REF

INSTRUCTION

Cover - See Figure 12-001-00 (22)

1шт.

471

REF

INSTRUCTION

Cover, Hydraulic Pump - See Figure 12-001-00 (07)

1шт.

473

REF

INSTRUCTION

Battery Hold Down / Tank Parts - See Figure 12-001-00 (03)

1шт.

474

REF

INSTRUCTION

Sieve, Fuel - See Figure 03-003-00 (01)

1шт.

476

REF

INSTRUCTION

Drawbar, Rear - See Figure 12-001-00 (02)

1шт.

477

REF

INSTRUCTION

Drawbar, Front - See Figure 12-005-00 (02)

1шт.

483

REF

INSTRUCTION

Door, Access LH - See Figure 12-001-00 (12)

1шт.

484

REF

INSTRUCTION

Door, Access RH - See Figure 12-001-00 (09)

1шт.

487

REF

INSTRUCTION

Lock, Joint - See Figure 12-001-00 (08)

1шт.

493

REF

INSTRUCTION

Tool Box - See Figure 12-001-00 (05)

1шт.

540

REF

INSTRUCTION

Bulbs / Fuses - See Figure 04-009-00 (01)

1шт.

545

REF

INSTRUCTION

Filters - See Figure 01-001-01 (01)

1шт.

554

REF

INSTRUCTION

Dozer Blade - See Figure 12-027-00 (01)

1шт.

559

REF

INSTRUCTION

Blade Control - See Figure 12-022-00 (04)

1шт.

570

REF

INSTRUCTION

ROPS Installation - See Figure 12-021-00 (01)

1шт.

585

REF

INSTRUCTION

Step, Drum Frame - See Figure 12-007-01 (01)

1шт.

591

REF

INSTRUCTION

Guard, Fan - See Figure 02-004-00 (02)

1шт.

596

REF

INSTRUCTION

Shield, Alternator - See Figure 02-001-00 (02)

1шт.

597

REF

INSTRUCTION

Shield, Alternator - See Figure 02-001-00 (02A)

1шт.

600

REF

INSTRUCTION

Heater Instalation - See Figure 12-022-03 (02)

1шт.

606

REF

INSTRUCTION

Heater Connection - See Figure 12-022-04 (03)

1шт.

635

REF

INSTRUCTION

Tire Inflation - See Figure 12-029-01 (01)

1шт.

695

REF

INSTRUCTION

Seatbelt, Retractable 3 Inch - See Figure 12-022-00 (03)

1шт.
