(55.632.01[03]) - CIRCUIT, CAB AND ENGINE HOOD TILT (GROUP 416) (ND139611) (P.I.N. AFTER DDD001226)

Запчасти Case SV216 (55.632.01[03]) - CIRCUIT, CAB AND ENGINE HOOD TILT (GROUP 416) (ND139611) (P.I.N. AFTER DDD001226) (55) - ELECTRICAL SYSTEMS

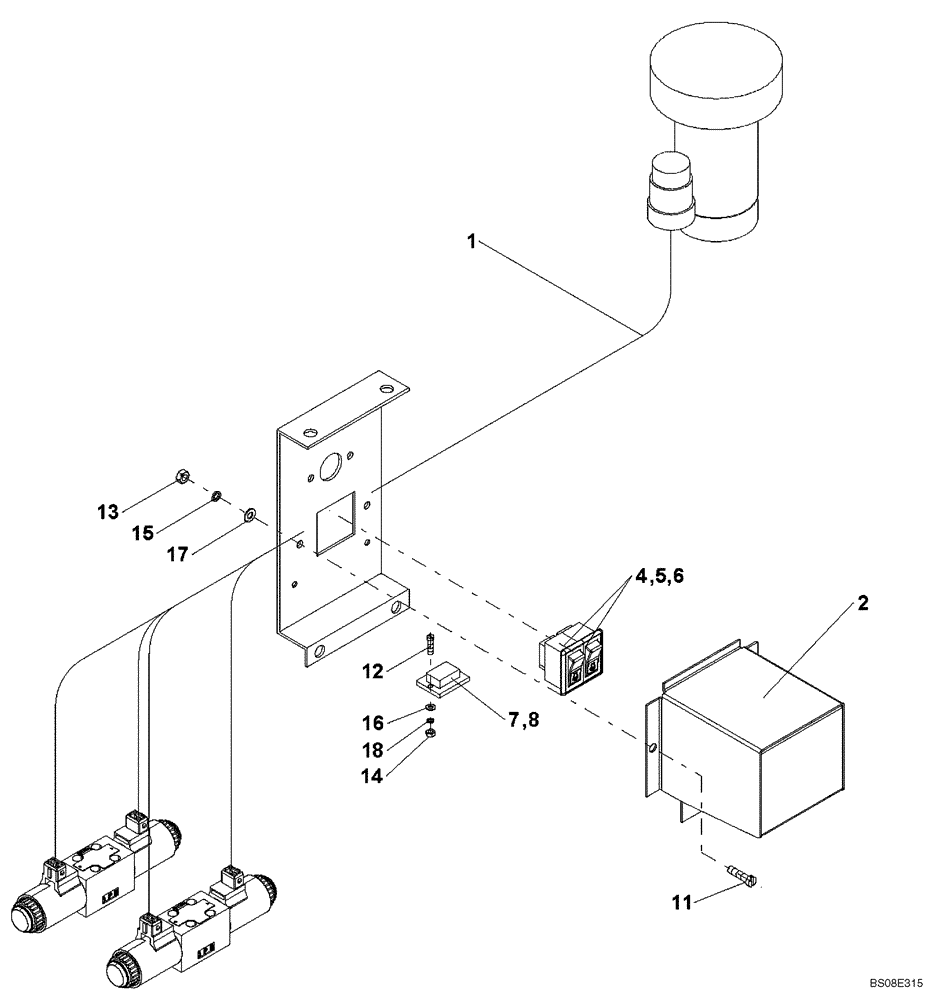

Схема запчастей Case SV216 - (55.632.01[03]) - CIRCUIT, CAB AND ENGINE HOOD TILT (GROUP 416) (ND139611) (P.I.N. AFTER DDD001226) (55) - ELECTRICAL SYSTEMS
12
15
2
13
14
7
17
16
8
18
11
1
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CIRCUIT, CAB & ENGINE HOOD TILT (ND139611) (GROUP 416)

1шт.

1

84372448

WIRE HARNESS

1шт.

2

ND144895

COVER PLATE

COVER, Replaces ND031973 Cover Used On Some Models

1шт.

4

ND065420

SWITCH

2шт.

5

ND065354

LENS

2шт.

6

ND065309

BEZEL

2шт.

7

ND065914

FUSE,24V, 10W

Box

1шт.

8

ND065913

FUSE,50A

1шт.

11

ND024122

BOLT

2шт.

12

ND024112

BOLT

2шт.

13

ND021846

NUT

2шт.

14

ND026413

NUT

2шт.

15

ND029308

WASHER

Spring

2шт.

16

ND029246

WASHER

2шт.

17

ND029247

WASHER

2шт.

18

ND029306

WASHER

Spring

2шт.
