(55.600.01[02]) - ANTI-SLIP CONTROLS, DRUM (P.I.N. DDD001215 UNTIL DDD001226) (GROUP 418) (ND139599)

Запчасти Case SV216 (55.600.01[02]) - ANTI-SLIP CONTROLS, DRUM (P.I.N. DDD001215 UNTIL DDD001226) (GROUP 418) (ND139599) (55) - ELECTRICAL SYSTEMS

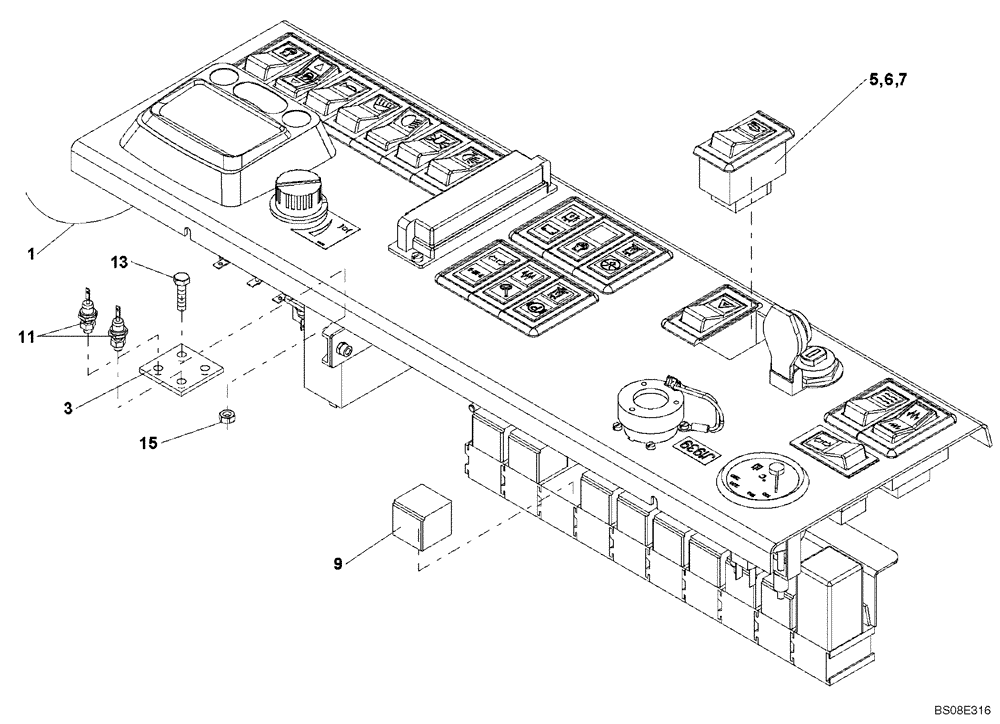

Схема запчастей Case SV216 - (55.600.01[02]) - ANTI-SLIP CONTROLS, DRUM (P.I.N. DDD001215 UNTIL DDD001226) (GROUP 418) (ND139599) (55) - ELECTRICAL SYSTEMS
6
11
7
13
1
9
3
15
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

ANTI-SLIP CONTROLS, DRUM (ND139599) (GROUP 418)

1шт.

1

ND139600

HARNESS

1шт.

3

ND110035

DIODE ELEMENT

Holder

1шт.

5

ND065399

SWITCH

1шт.

6

ND065413

LENS

1шт.

7

ND105262

DECAL

1шт.

9

ND065142

RELAY

1шт.

11

ND066634

DIODE

2шт.

13

ND021285

BOLT

2шт.

15

ND107948

LOCK NUT

2шт.

Выбрано товаров: 10
