(01-001-01[01]) - QUICK REFERENCE / CONSUMABLES (GROUP 545) (ND133266)

Запчасти Case SV216 (01-001-01[01]) - QUICK REFERENCE / CONSUMABLES (GROUP 545) (ND133266) (00) - GENERAL & PICTORIAL INDEX

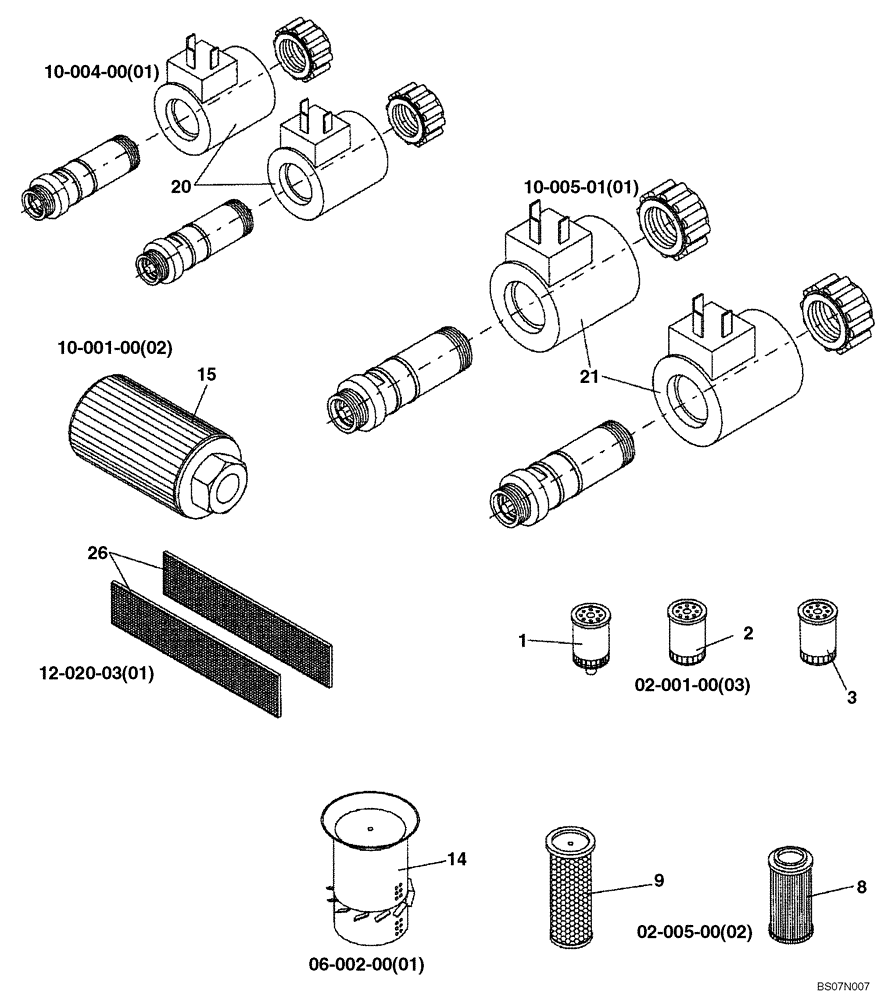

Схема запчастей Case SV216 - (01-001-01[01]) - QUICK REFERENCE / CONSUMABLES (GROUP 545) (ND133266) (00) - GENERAL & PICTORIAL INDEX
8
9
10-004-00(01)
1
10-001-00(02)
10-005-01(01)
06-002-00(01)
02-001-00(03)
14
21
15
20
26
12-020-03(01)
2
02-005-00(02)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

QUICK REFERENCE (ND133266) (GROUP 545)

1шт.

1

ND131084

FUEL FILTER

Ref Figure 02-001-00 (03)

1шт.

2

ND131085

FUEL FILTER

Ref Figure 02-001-00 (03)

1шт.

3

ND116140

ENGINE OIL FILTER

Ref Figure 02-001-00 (03)

2шт.

8

ND133433

AIR FILTER

Air Intake; Outer Insert; Ref Figure 02-005-00 (02)

1шт.

9

ND133434

AIR FILTER

Air Intake; Inner Insert; Ref Figure 02-005-00 (02)

1шт.

14

ND126829

HYDRAULIC OIL FILTER

Hydraulic; Ref Figure 06-002-00 (01)

1шт.

15

ND067790

FILTER STRAINER

Hydraulic; Ref Figure 10-001-00 (02)

1шт.

20

ND067924

SOLENOID

Ref Figure 10-004-00 (01)

2шт.

21

ND067925

SOLENOID

Ref Figure 10-005-01 (01)

2шт.

26

ND075260

CAB FILTER

Air; Ref Figure 12-020-03 (01)

2шт.
