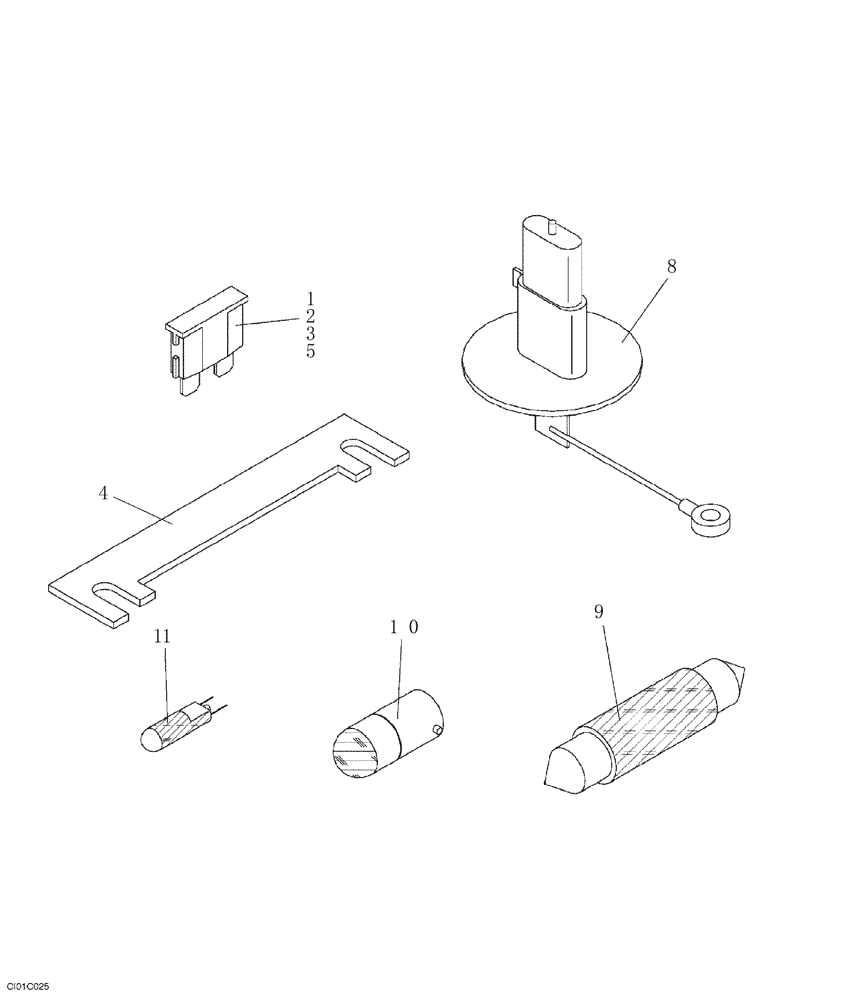

Запчасти Case SV216 (55.404.05) - BULB / FUSES (GROUP 540) (ND031668) (55) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

BULBS / FUSES (ND031668) (GROUP 540)

1шт.

1

ND065918

FUSE,7.5A

7,5 Amp; See Figure(s) 04-002-00 (03) And 04-002-00 (03A)

1шт.

2

ND065922

FUSE,10A

10A; See Figures(s) 04-001-00 (03), 04-001-00 (03B), 04-002-00 (03), 04-002-00 (03A), And 04-003-01 (01)

2шт.

3

ND065919

FUSE,15A

15 Amp; See Figures(s) 04-002-00 (03) And 04-002-00 (03A)

1шт.

4

ND065913

FUSE,50A

50 Amp; 04-006-00 (01) And 04-006-00 (01A)

1шт.

5

ND065923

FUSE,20A

20 Amp; See Figure(s) 04-002-00 (03) And 04-002-00 (03A)

2шт.

8

ND066894

BULB,24V, 70W

24V 70W H3; See Figure(s) 04-001-05 (02), 04-001-05 (02A), 04-001-06 (01), 04-001-06 (01A) And 04-001-06 (03)

1шт.

9

ND065107

BULB

See Figure 04-001-01 (02)

1шт.

10

ND098748

BULB

24V 3W (gauges)

2шт.

11

ND065414

BULB

24V 1,2W (Used in Switch)

3шт.
