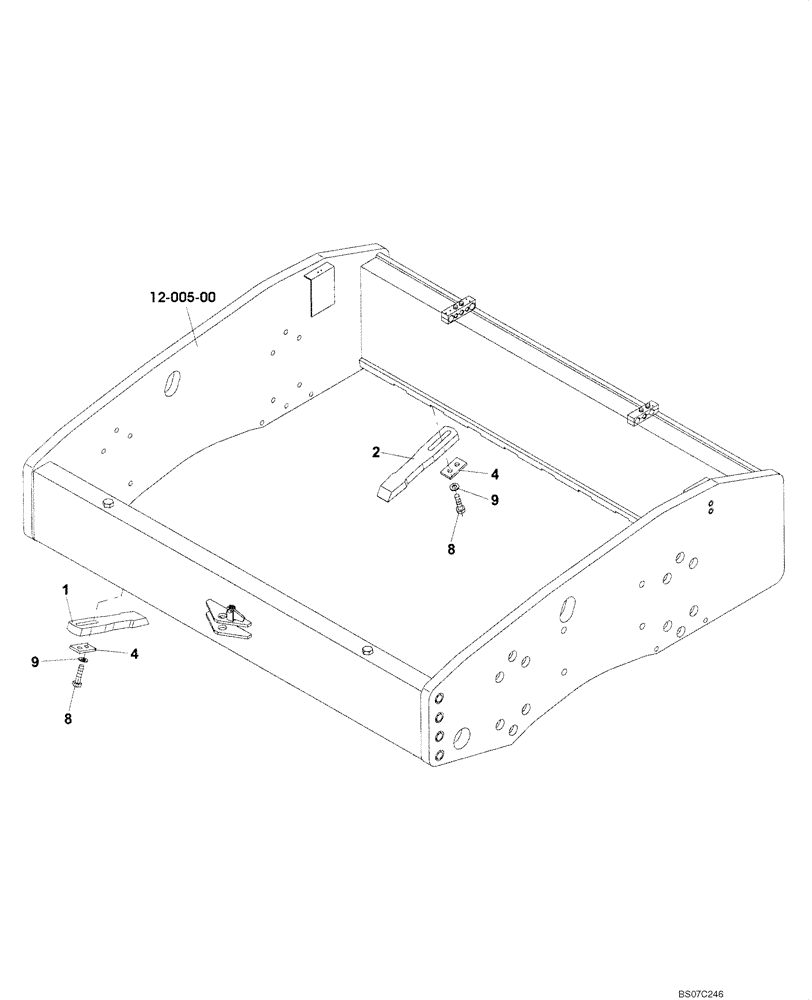

Запчасти Case SV216 (39.100.24[01]) - SCRAPER, PAD FOOT DRUM (GROUP 57) (ND011702) (39) - FRAMES AND BALLASTING

REF

INSTRUCTION

SCRAPER, PAD FOOT DRUM (ND011702) (GROUP 57)

1шт.

1

ND031645

SCRAPER

9шт.

2

ND031647

SCRAPER

9шт.

4

ND048476

PLATE

18шт.

8

ND021243

BOLT

M20 x 70

36шт.

9

ND035944

WASHER

ID 20

36шт.
