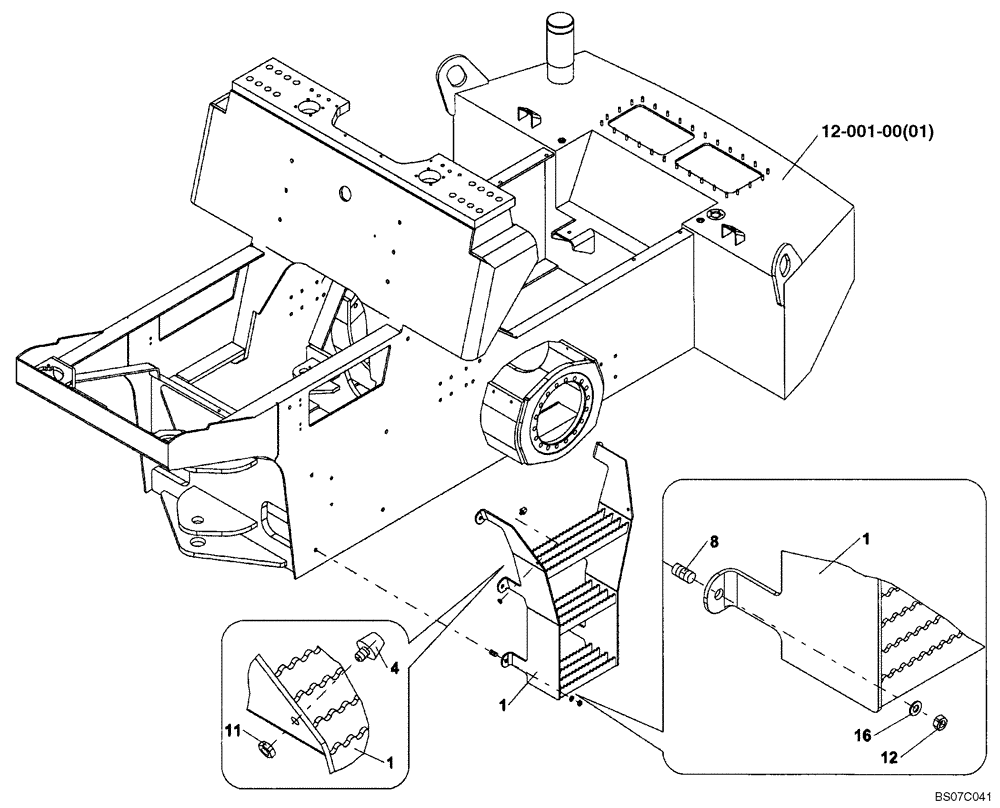

Запчасти Case SV216 (39.100.14) - STEPS, PLATFORM ACCESS LH (GROUP 460) (ND126673) (39) - FRAMES AND BALLASTING

REF

INSTRUCTION

STEPS, PLATFORM ACCESS LH (ND126673) (GROUP 460)

1шт.

1

ND126672

STEP

1шт.

4

ND079227

RUBBER BUMPER

1шт.

8

ND123609

BOLT

6шт.

11

ND026461

NUT

1шт.

12

ND034086

NUT

Replaces ND034088 Nut

6шт.

16

ND122456

WASHER

Replaces ND035826 Washer

6шт.
