(39.100.08) - LOCK, ARTICULATED JOINT (GROUP 487) (ND126691)

Запчасти Case SV216 (39.100.08) - LOCK, ARTICULATED JOINT (GROUP 487) (ND126691) (39) - FRAMES AND BALLASTING

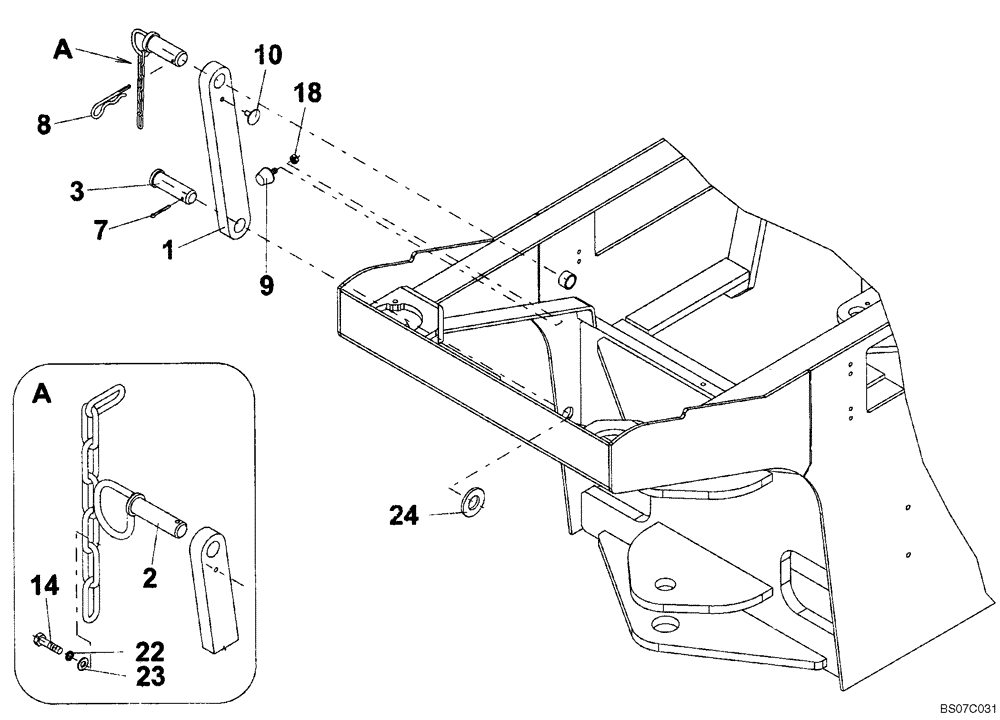

Схема запчастей Case SV216 - (39.100.08) - LOCK, ARTICULATED JOINT (GROUP 487) (ND126691) (39) - FRAMES AND BALLASTING
14
22
2
7
9
18
24
3
10
23
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LOCK, ARTICULATED JOINT (ND126691) (GROUP 487)

1шт.

1

ND030796

TIE-ROD

1шт.

2

ND126760

PIN

1шт.

3

ND126759

TOWBAR PIN

1шт.

7

ND029396

COTTER PIN

1шт.

8

ND118345

ROLL PIN

1шт.

9

ND079083

RUBBER BUMPER

1шт.

10

ND108312

PLUG

1шт.

14

ND110229

BOLT

1шт.

18

ND034087

NUT

1шт.

22

ND029308

WASHER

1шт.

23

ND029247

WASHER

1шт.

24

ND124289

WASHER

1шт.

Выбрано товаров: 13
