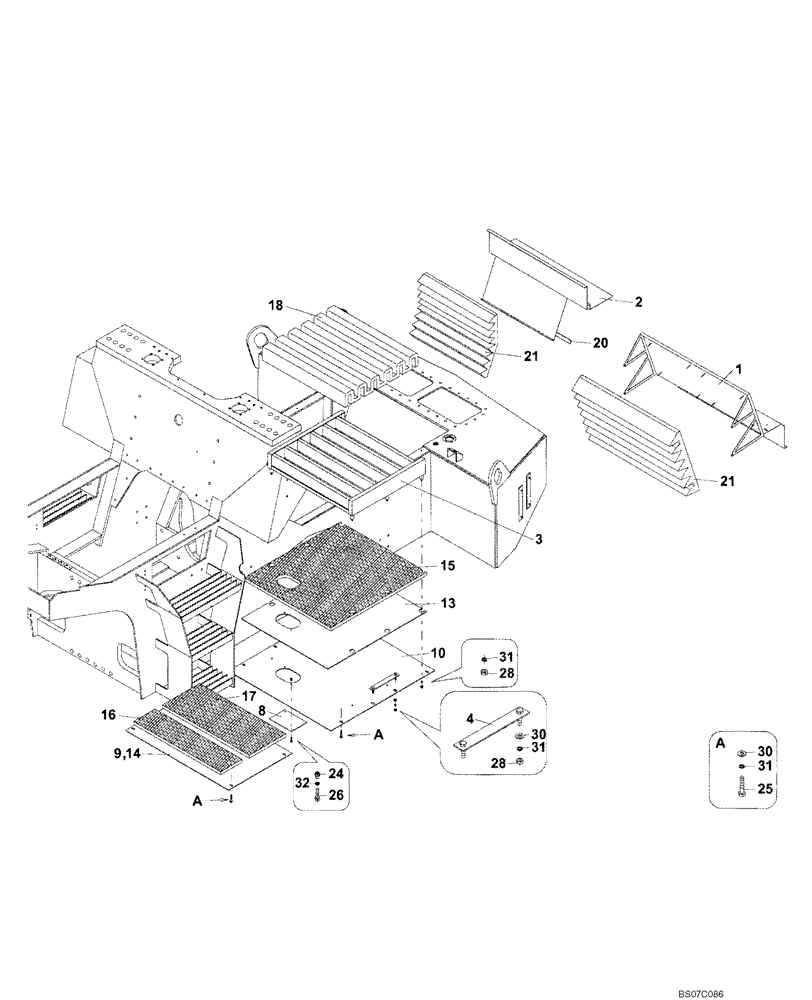

Запчасти Case SV216 (12-001-01[01]) - CHASSIS - NOISE REDUCTION (GROUP 206) (ND108200) (09) - CHASSIS/ATTACHMENTS

NOISE REDUCTION (ND108200) (GROUP 206)

1шт.

1

ND108207

PANEL SUPPORT

PANEL

1шт.

2

ND108208

COVER ASSY

1шт.

3

ND103330

BLOCK

1шт.

4

ND103341

CLAMP

2шт.

8

ND103342

COVER

1шт.

9

ND103335

PANEL

1шт.

10

ND103336

PANEL

1шт.

13

ND103343

INSULATOR

2шт.

14

ND103350

INSULATOR

3 x 490 x 670

2шт.

15

ND103344

INSULATOR

1шт.

16

ND103349

INSULATOR

20 x 165 x 670

1шт.

17

ND103351

INSULATOR

20 x 285 x 670

1шт.

18

ND103348

INSULATOR

20 x 640 x 1270

1шт.

20

ND103352

BAND

550 mm

1шт.

21

ND079141

INSULATOR

3шт.

24

ND069950

RIVET

M6 x 16

2шт.

25

ND021295

BOLT

M8 x 25

8шт.

26

ND021289

BOLT

M6 x 20

2шт.

28

ND021848

NUT

M8

10шт.

30

ND029285

WASHER

ID 9

12шт.

31

ND035940

SPRING WASHER

ID 8

18шт.

32

ND029309

SPRING WASHER

ID 6,1

2шт.
