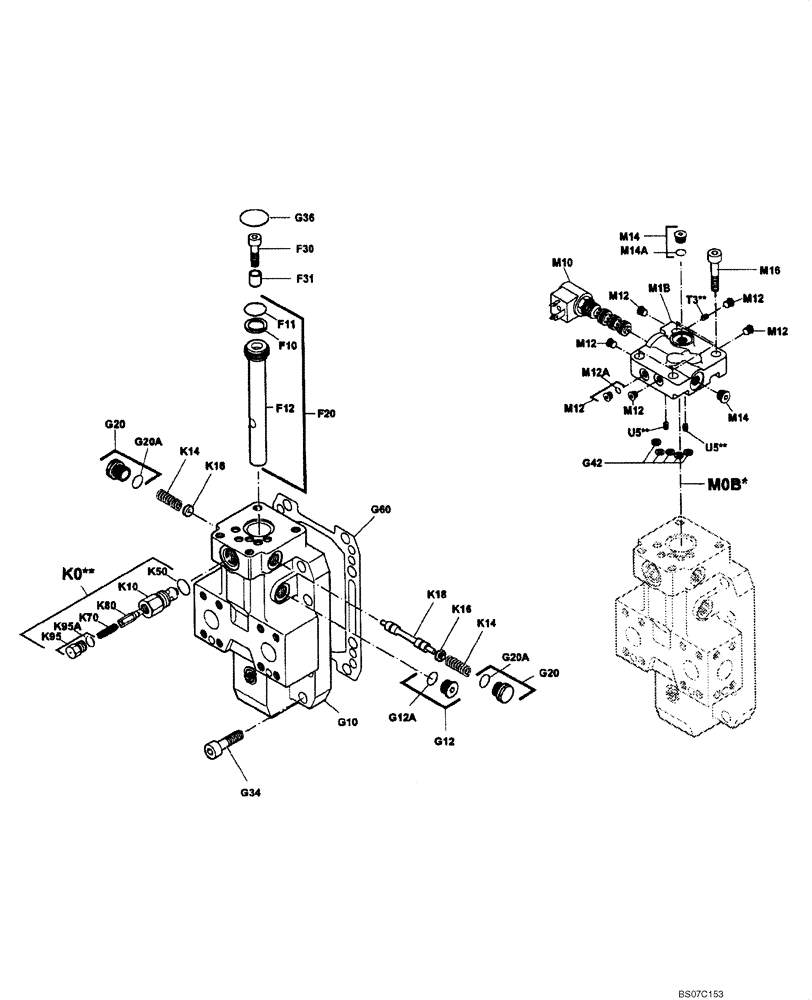

Запчасти Case SV216 (10-017-00[01]) - HYDRAULICS -TRAVEL MOTOR - REGULATOR (GROUP 95-2 B) (ND090792) (08) - HYDRAULICS

HYDROMOTOR (ND090792) (GROUP 95-2 B)

1шт.

a0

ND102436

SEAL KIT

1шт.

c05

ND102543

CYLINDER BLOCK

1шт.

c10

ND102472

PLATE

BEARING

1шт.

f10

ND102418

SEAL

PACKING

1шт.

f11

ND102392

O-RING

1шт.

f12

ND102404

PISTON

1шт.

f20

ND102421

PISTON

1шт.

g10

ND102403

COVER

1шт.

g12

ND102474

PLUG

1шт.

g20

ND102422

PLUG

2шт.

g34

ND102498

BOLT

BOLT

8шт.

g36

ND102355

O-RING

1шт.

g42

ND102552

SEAL

PACKING

5шт.

k10

ND103353

PLUG

1шт.

k14

ND103356

SPRING

2шт.

k16

ND103355

SPRING CUP

RETAINER

2шт.

k18

ND102356

PISTON

1шт.

k50

ND102298

O-RING

1шт.

m1b

ND102446

VALVE BLOCK (USED)

PLATE

1шт.

m10

ND102391

SOLENOID VALVE

ELECTROMAGNET

1шт.

m12

ND102394

PLUG

6шт.

m14

ND102474

PLUG

2шт.

m16

ND102390

BOLT

4шт.

k0nn

ND103354

PLUG

1шт.

m0b2

ND102450

CONTROL VALVE

BOARD

1шт.

t3u3

ND102416

PORT

ORFICE PLATE

1шт.

u5u3

ND102448

PORT

ORFICE PLATE

2шт.
