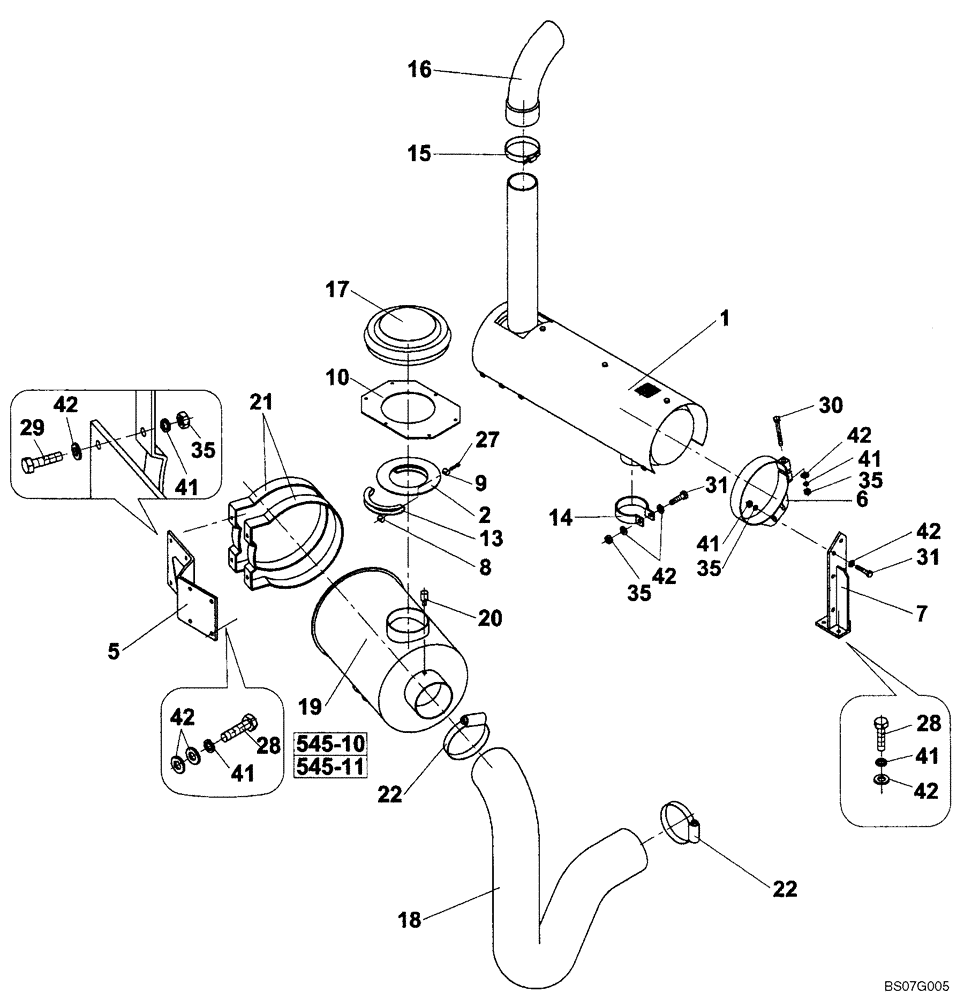

Запчасти Case SV216 (02-005-00[01]) - ENGINE - INTAKE & EXHAUST (GROUP 134) (ND011810) (02) - ENGINE

INTAKE & EXHAUST (ND011810) (GROUP 134)

1шт.

1

ND103100

MUFFLER

1шт.

2

ND031211

PLATE

1шт.

5

ND018264

SUPPORT

1шт.

6

ND103369

CLAMP

1шт.

7

ND031214

SUPPORT

1шт.

8

ND046952

NUT

2шт.

9

ND046948

WASHER

2шт.

13

ND031208

HALF-COLLAR

1шт.

14

ND116083

CLAMP

1шт.

15

ND098745

CLAMP

1шт.

16

ND106299

EXTENSION

1шт.

17

ND065524

COVER

1шт.

18

ND121774

HOSE

1шт.

19

ND065516

AIR CLEANER

; Includes ND065517 - Air Cleaner Element, ND065503 - Air Cleaner Element

1шт.

ND065517

AIR FILTER

; Not Illustrated

1шт.

ND065503

AIR FILTER

; Not Illustrated

1шт.

20

ND065555

SENSOR

VACUUM SENSOR

1шт.

21

ND065519

CLAMP

2шт.

22

ND069508

CLAMP

2шт.

27

ND024236

BOLT

2шт.

28

ND021302

BOLT

7шт.

29

ND021303

BOLT

4шт.

30

ND021206

BOLT

1шт.

31

ND021304

BOLT

3шт.

35

ND034088

NUT

8шт.

41

ND035941

WASHER

14шт.

42

ND029266

WASHER

20шт.
