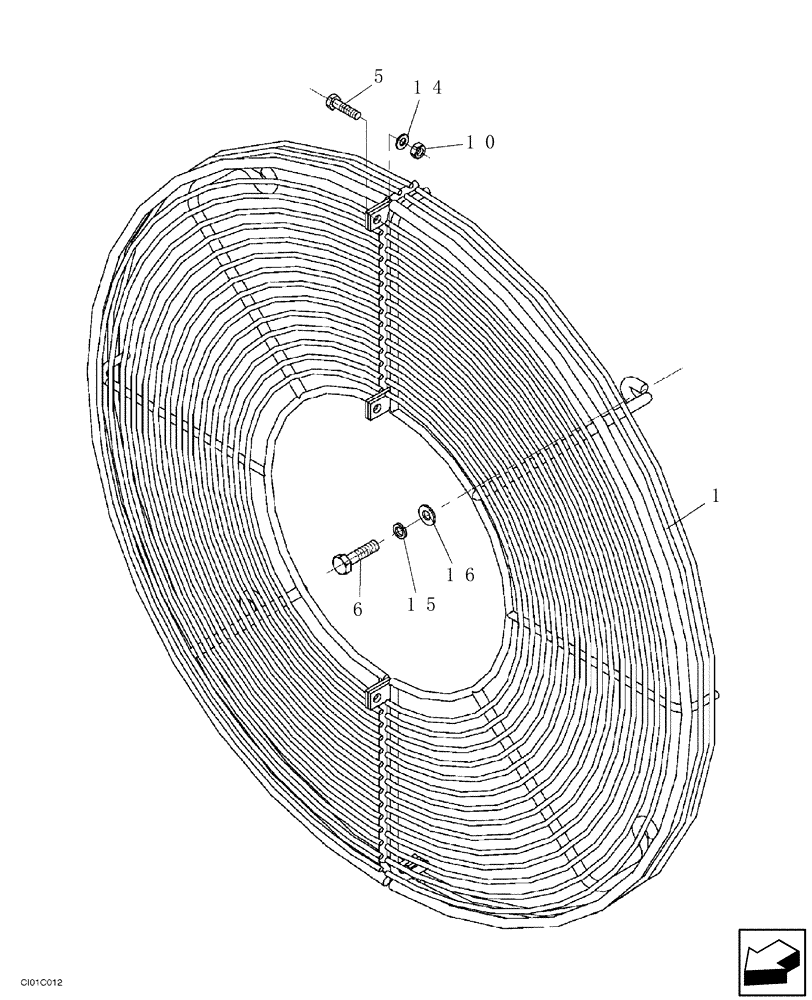

Запчасти Case SV216 (02-004-00[01]) - ENGINE - FAN GUARD (GROUP 590) (ND018251) (02) - ENGINE

FAN COVER (ND018251) (GROUP 590)

1шт.

1

ND120180

COVER

1шт.

5

ND021288

BOLT

M6 x 16

1шт.

6

ND021295

BOLT

M8 x 25

4шт.

10

ND021847

NUT

M6

4шт.

14

ND029309

SPRING WASHER

ID 6,1

4шт.

15

ND029310

WASHER

ID 8,2

4шт.

16

ND029249

WASHER

ID 8,4

4шт.
