Запчасти Case SV216 (12-022-04[02]) - CHASSIS - HEATER CONNECTION ENGINE (GROUP605) (ND114739) (09) - CHASSIS/ATTACHMENTS

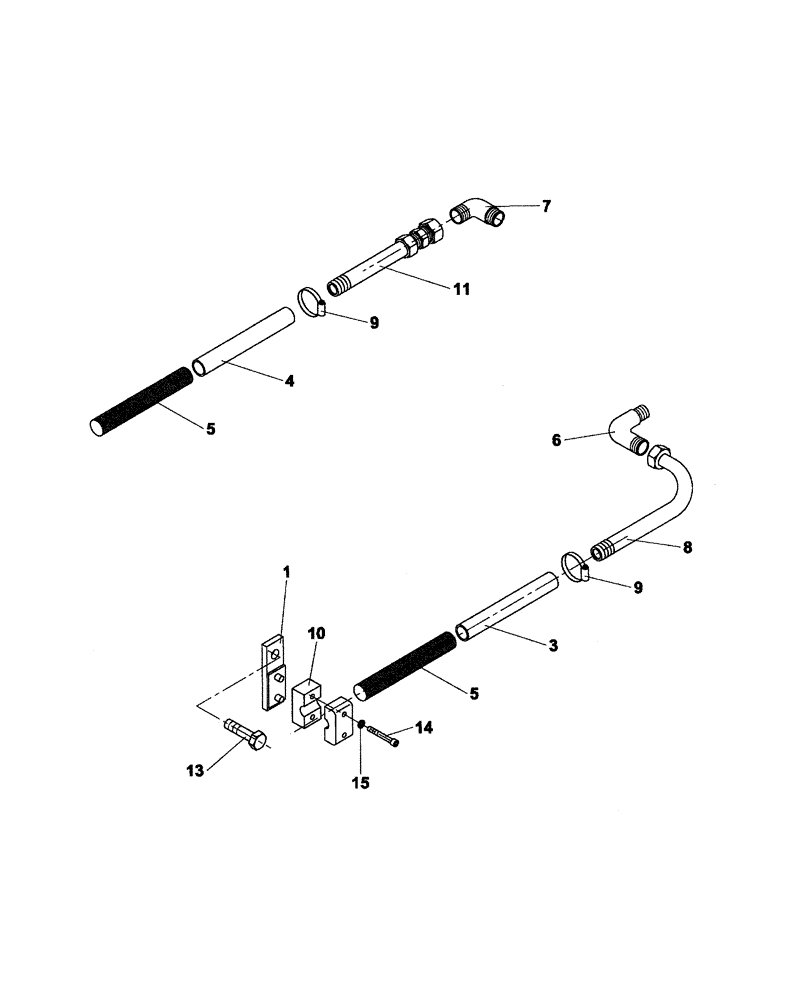

HEATER CONNECTION (ND114739) (GROUP 605)

1шт.

1

ND053485

SUPPORT

1шт.

3

ND075046

HOSE,2500.00 mm

1шт.

4

ND075048

FLEXIBLE HOSE

3500 mm

1шт.

5

ND062022

PROTECTING COVER

500 mm

2шт.

6

ND112441

ELBOW

1шт.

7

ND112442

ELBOW

1шт.

8

ND062195

TUBE

2шт.

9

ND069479

CLAMP

16-25

2шт.

10

ND064809

CLAMP

1шт.

11

ND112440

HYD TUBE

; Includes ND062433 Reducing piece

1шт.

13

ND021312

BOLT

M12 x 40

1шт.

ND062433

RESTRICTOR

1шт.

14

ND024234

BOLT

M6 x 30

2шт.

15

ND029309

SPRING WASHER

ID 6,1

2шт.
