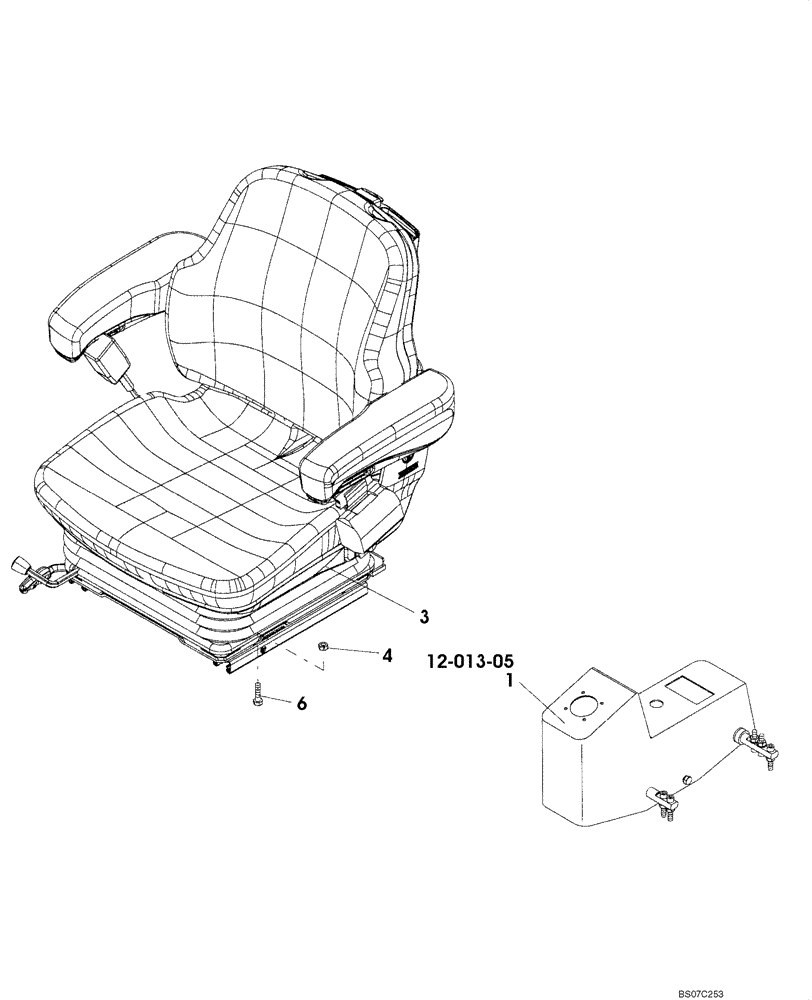

Запчасти Case SV216 (12-013-03[00]) - CHASSSIS - SEAT ASSY (GROUP 158) (ND126721) (09) - CHASSIS/ATTACHMENTS

SEAT (ND126721) (GROUP 158)

1шт.

1

ND115395

PANEL

1шт.

3

ND031878

DRIVER SEAT

Prior to PIN : DDD001208, Does Not Include "Operator Present" Seat Switch

1шт.

3

ND114822

DRIVER SEAT

PIN : DDD001208, And After Includes "Operator Present" Seat Switch ND124384

1шт.

ND124384

LIMIT SWITCH

"Operator Present" Seat Switch Not Illustrated

1шт.

4

ND027301

NUT

4шт.

6

ND029249

WASHER

4шт.
