(12-013-02[00]) - CHASSIS - OPERATORS PLATFORM EQUIPMENT (GROUP 157) (ND104899)

Запчасти Case SV216 (12-013-02[00]) - CHASSIS - OPERATORS PLATFORM EQUIPMENT (GROUP 157) (ND104899) (09) - CHASSIS/ATTACHMENTS

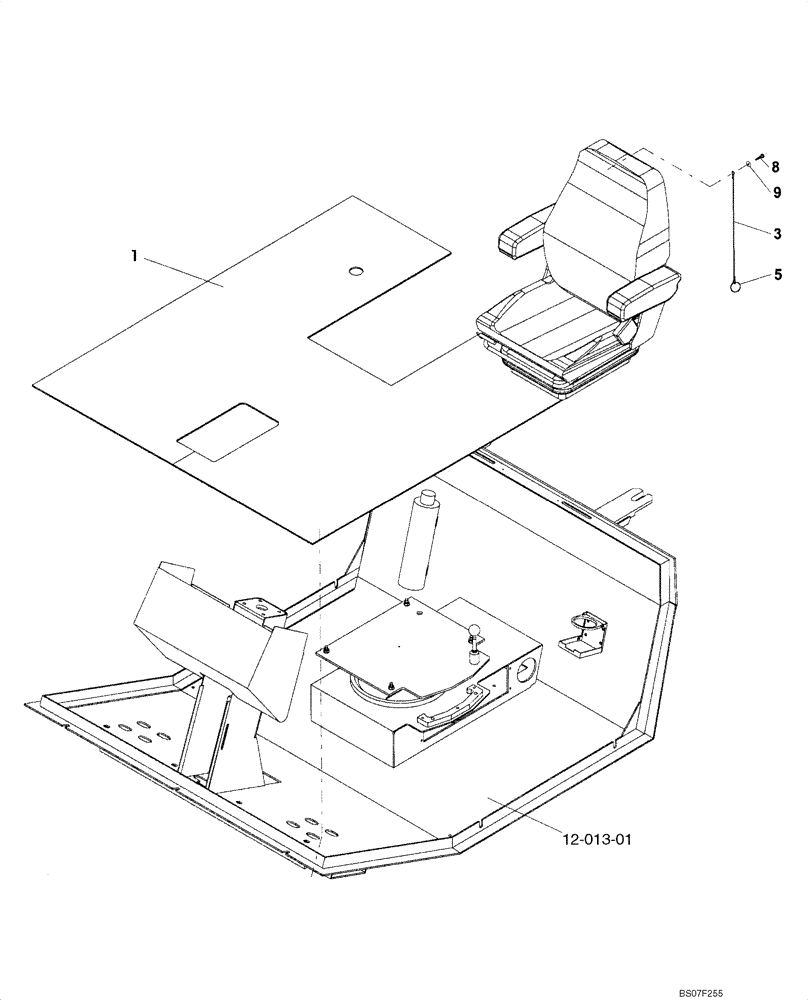

Схема запчастей Case SV216 - (12-013-02[00]) - CHASSIS - OPERATORS PLATFORM EQUIPMENT (GROUP 157) (ND104899) (09) - CHASSIS/ATTACHMENTS
3
9
8
1
12-013-01
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PLATFORM EQUIPMENT (ND104899) (GROUP 157)

1шт.

1

ND103692

FLOOR MAT

COVERING

1шт.

3

ND117962

CABLE

1шт.

5

ND073401

RING

1шт.

8

ND025008

SELF-TAP SCREW

SELF TAPPING

1шт.

9

ND037446

WASHER

SADDLERS

1шт.
