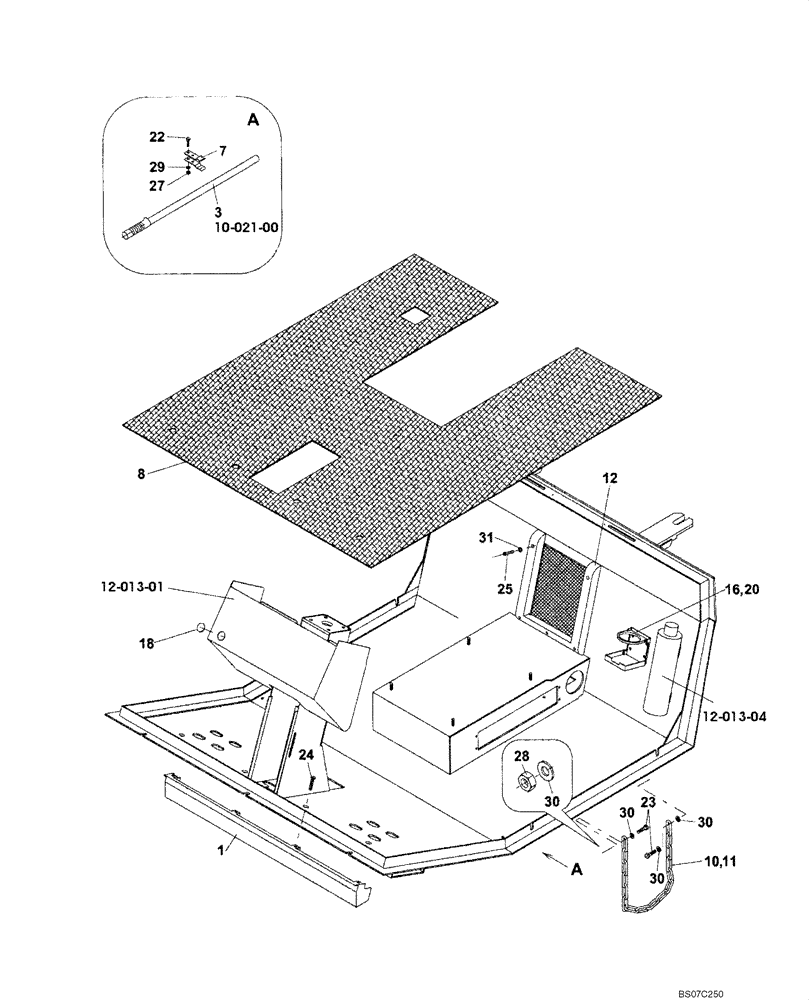

Запчасти Case SV216 (12-013-00[01]) - CHASSIS - OPERATORS PLATFORM PARTS (GROUP 155) (ND12015) (09) - CHASSIS/ATTACHMENTS

PLATFORM (ND012015) (GROUP 155)

1шт.

1

ND029730

COVER

1шт.

3

ND108074

PIPE

COMPLETE

1шт.

7

ND109488

CLAMP

SPRING

2шт.

8

ND017889

INSULATOR

1шт.

10

ND050824

LINK CHAIN

1шт.

11

ND101585

PLASTIC-RUBBER TUBE

PLASTIC

1шт.

12

ND064533

NET

NET

1шт.

16

ND090001

SUPPORT

HOLDER

1шт.

18

ND127750

PLUG

1шт.

20

ND025008

SELF-TAP SCREW

M4 x 16 SELF TAPPING

4шт.

22

ND021290

BOLT

M6 x 22 BOLT

2шт.

23

ND021293

BOLT

M8 x 16 BOLT

2шт.

24

ND024388

SCREW

M8 x 12 COUNTERSINK

4шт.

25

ND024967

SELF-TAP SCREW

M4 x 16 SELF TAPPING

5шт.

27

ND027300

NUT

M6

2шт.

28

ND027301

NUT

M8

1шт.

29

ND029248

WASHER

4шт.

30

ND029249

WASHER

ID 8,4

4шт.

31

ND029246

WASHER

5шт.
