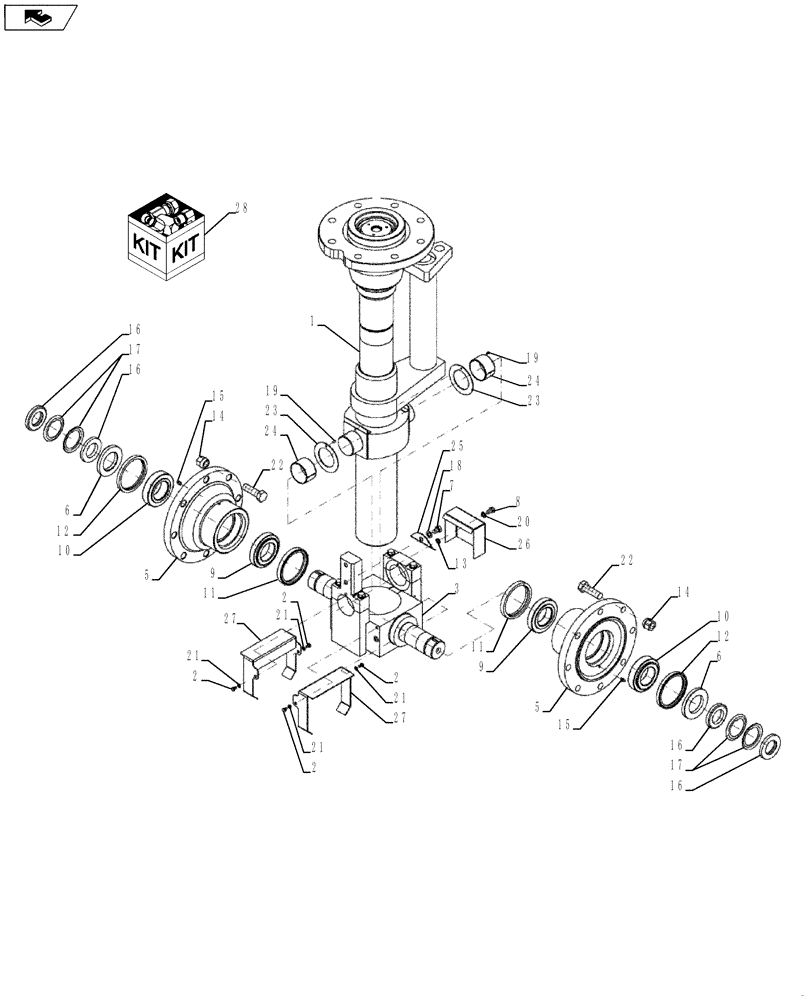

Запчасти Case PT240 (25.100.02[01]) - FRONT AXLE - BSN NCNTN2445 (44) - WHEELS

1

ND124577

ARTICULATED SHAFT

Includes Ref. 28

1шт.

2

ND021292

BOLT

4шт.

3

ND127340

AXLE

1шт.

5

ND132672

HUB

2шт.

6

ND098356

RING

2шт.

7

ND021307

BOLT

1шт.

8

ND092562

BOLT

1шт.

9

ND069040

ROLLER BEARING

2шт.

10

ND069070

BALL BEARING

2шт.

11

ND079028

OIL SEAL

2шт.

12

ND079028

OIL SEAL

2шт.

13

ND029311

WASHER

1шт.

14

ND064418

WHEEL NUT

16шт.

15

ND070132

FITTING

4шт.

16

ND069115

BEARING LOCK NUT

4шт.

17

ND069133

LOCKING RING

4шт.

18

ND035942

WASHER

1шт.

19

ND032885

PIN

2шт.

20

ND035941

WASHER

1шт.

21

ND035940

SPRING WASHER

4шт.

22

ND021256

BOLT

16шт.

23

ND121855

THRUST WASHER

2шт.

24

ND035980

BUSHING

2шт.

25

ND128390

SHIELD

1шт.

26

ND128388

SHIELD

1шт.

27

ND128387

SHIELD

2шт.

28

ND137912

SEAL KIT

For Articulated Shaft

1шт.
