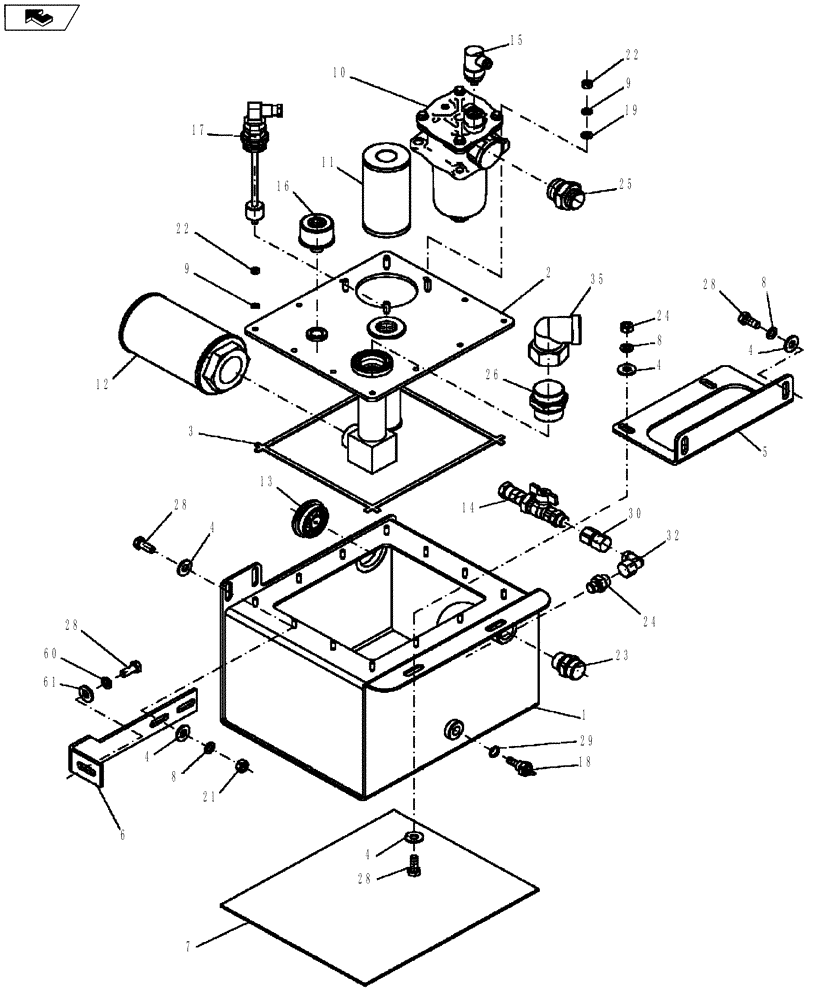

Запчасти Case PT240 (35.750.01) - HYDRAULIC OIL TANK (GROUP 360-ND144817) (35) - HYDRAULIC SYSTEMS

1

ND144815

RESERVOIR, HYDRAULIC

1шт.

2

ND144816

ACCESS COVER

1шт.

3

ND144911

SEALING STRIP

1шт.

4

ND029292

INSULATING WASHER

11шт.

5

ND144818

BRACKET

1шт.

6

ND144819

BRACKET

1шт.

7

ND143979

PAD

1шт.

8

ND035941

WASHER

7шт.

9

ND035940

SPRING WASHER

16шт.

10

ND140506

HYDRAULIC OIL FILTER

, Serial Range: -NENTN2737

1шт.

10

47794850

FILTER

, Start Serial: NENTN2738

1шт.

11

ND140507

ELEMENT

Hydraulic, Serial Range: -NENTN2737

1шт.

11

47794861

FILTER

, Start Serial: NENTN2738

1шт.

12

ND067790

FILTER STRAINER

1шт.

13

ND070150

LEVEL GAUGE

1шт.

14

ND138053

DRAINCOCK/TAP SUPPLY

1шт.

15

ND140508

RESTRICTION SWITCH

1шт.

16

ND140486

BREATHER

1шт.

17

ND136218

SENDER UNIT

1шт.

18

ND108594

SWITCH

1шт.

19

ND029249

WASHER

4шт.

21

ND021849

NUT

4шт.

22

ND021848

NUT

16шт.

23

ND062161

HYD CONNECTOR

1шт.

24

ND062154

HYD CONNECTOR

1шт.

25

ND139058

HYD CONNECTOR

1шт.

26

ND062185

HYD CONNECTOR

1шт.

28

ND021302

BOLT

7шт.

29

ND073356

PACKING RING

1шт.

30

ND062322

HYD CONNECTOR

1шт.

31

ND062301

HYD CONNECTOR

1шт.

32

ND062366

ELBOW

1шт.

60

ND029292

INSULATING WASHER

11шт.

61

ND035941

WASHER

7шт.
