Запчасти Case PT240 (33.202.01) - HYDRAULIC BRAKE (GROUP 340-ND144883) (33) - BRAKES & CONTROLS

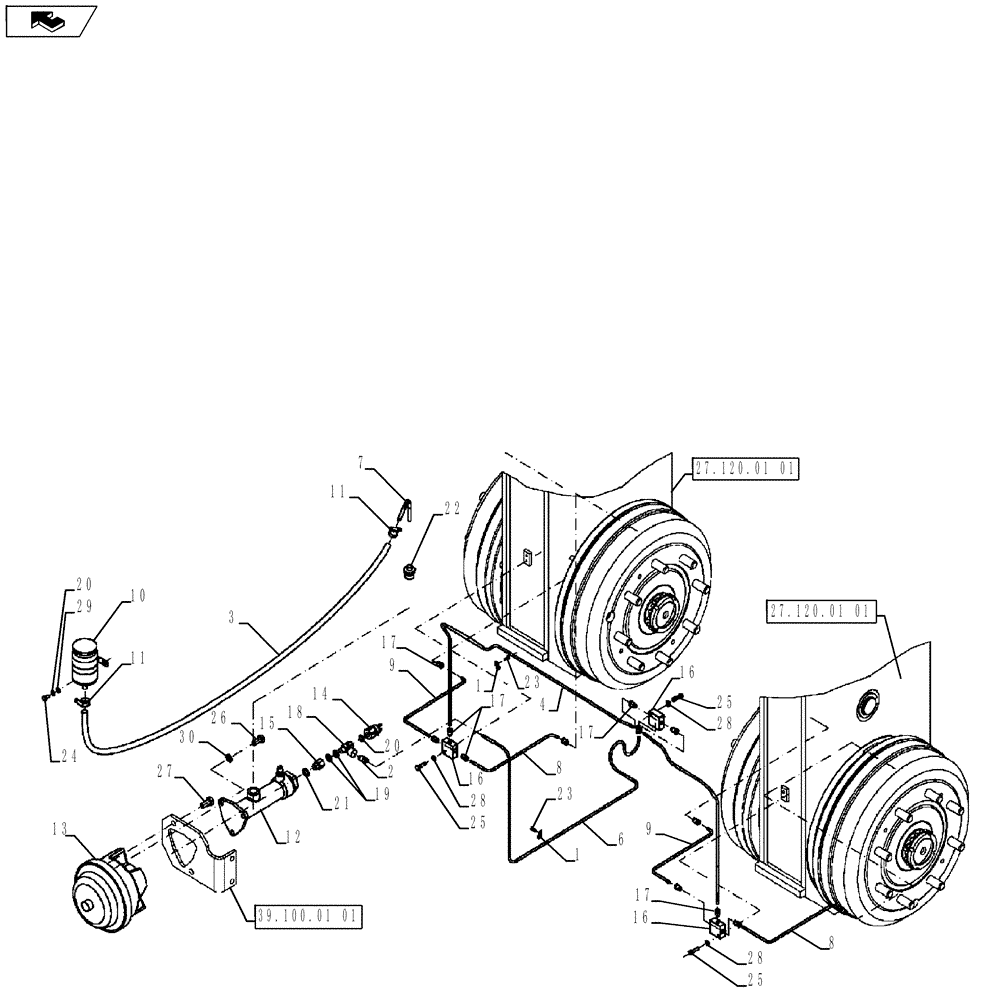

Схема запчастей Case PT240 - (33.202.01) - HYDRAULIC BRAKE (GROUP 340-ND144883) (33) - BRAKES & CONTROLS
28
39.100.01 01
27.120.01 01
27.120.01 01
17
8
26
17
6
1
20
15
17
22
14
13
16
28
18
11
25
21
12
home
8
4
30
25
20
11
16
3
27
16
9
23
1
10
9
25
19
24
28
7
17
2
23
29

Артикул

Название

Примечание

Количество

1

ND036479

CLAMP

2шт.

2

ND038006

HYD CONNECTOR

, Serial Range: -NENTN2737

1шт.

3

ND099921

PLASTIC-RUBBER TUBE

1шт.

4

ND146582

BRAKE LINE

, Serial Range: -NENTN2737

1шт.

4

47799206

BRAKE LINE

, Start Serial: NENTN2738

1шт.

5

ND146583

BRAKE LINE

, Serial Range: -NENTN2737

1шт.

5

47799208

BRAKE LINE

, Start Serial: NENTN2738

1шт.

6

ND146584

BRAKE LINE

, Serial Range: -NENTN2737

1шт.

6

47799213

BRAKE LINE

, Start Serial: NENTN2738

1шт.

7

ND148498

BRAKE LINE

1шт.

8

ND121343

BRAKE LINE

Tube is ActuallyStraight , Serial Range: -NENTN2737

2шт.

8

47799215

BRAKE LINE

Tube is ActuallyStraight , Start Serial: NENTN2738

2шт.

9

ND121342

BRAKE LINE

Tube is ActuallyStraight , Serial Range: -NENTN2737

2шт.

9

47799218

BRAKE LINE

Tube is ActuallyStraight , Start Serial: NENTN2738

2шт.

10

ND064577

BRAKE FLUID TANK

1шт.

11

ND069478

CLIP

2шт.

12

ND090091

MASTER CYLINDER

1шт.

13

ND065624

BRAKE BOOSTER

1шт.

14

ND067930

SWITCH

Brake

1шт.

15

ND090092

REDUCER

1шт.

16

ND064754

CONNECTING BLOCK

3шт.

17

ND064615

HYD CONNECTOR

, Serial Range: -NENTN2737

13шт.

18

ND064755

TEE

1шт.

19

ND073351

PACKING RING

2шт.

20

ND073350

SEAL

1шт.

21

ND073390

SEALING RING

SEALRING

1шт.

22

ND062045

NUT

, Serial Range: -DDDPT240NANTN2000

1шт.

22

ND062225

HYD CONNECTOR

1шт.

23

ND062038

SEAL

, Serial Range: -DDDPT240NANTN2000

1шт.

23

ND025008

SELF-TAP SCREW

Self Tapping

2шт.

24

ND021287

BOLT,M8 x 16

2шт.

25

ND021290

BOLT

3шт.

26

ND021302

BOLT

3шт.

27

ND120980

BOLT

2шт.

28

ND118926

WASHER

Spring

5шт.

29

ND029248

WASHER

2шт.

30

ND035941

WASHER

3шт.

Выбрано товаров: 37
