(27.110.01) - REAR DIFFERENTIAL LOCK CONTROL-OPTIONAL (GROUP 348-ND145760)

Запчасти Case PT240 (27.110.01) - REAR DIFFERENTIAL LOCK CONTROL-OPTIONAL (GROUP 348-ND145760) (27) - REAR AXLE SYSTEM

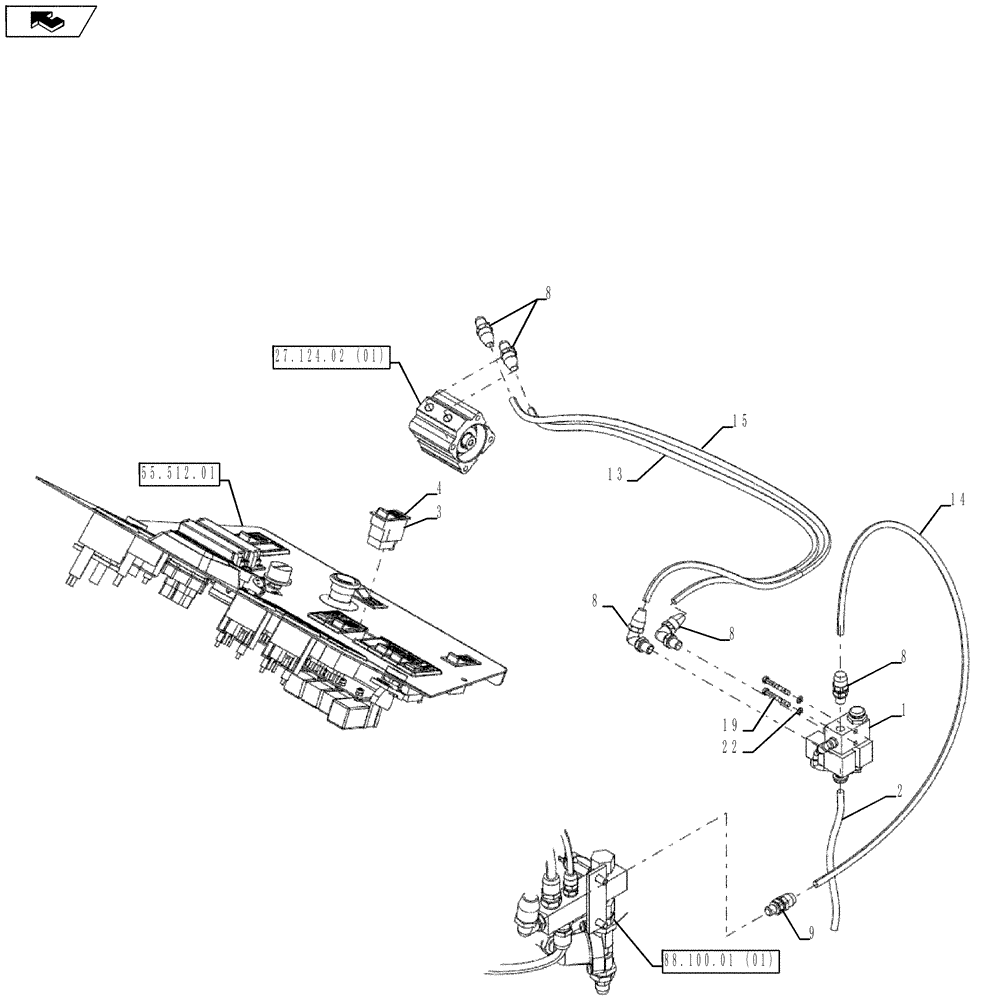

Схема запчастей Case PT240 - (27.110.01) - REAR DIFFERENTIAL LOCK CONTROL-OPTIONAL (GROUP 348-ND145760) (27) - REAR AXLE SYSTEM
8
1
22
2
8
4
14
home
15
19
8
88.100.01 (01)
27.124.02 (01)
55.512.01
8
3
13
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND144698

SOLENOID VALVE

1шт.

2

ND148400

HARNESS

1шт.

3

ND065307

SWITCH

1шт.

4

ND065415

LENS

1шт.

8

ND121005

FITTING

5шт.

9

ND121061

FITTING

1шт.

13

ND145767

PLASTIC-RUBBER TUBE

1шт.

14

ND145768

PLASTIC-RUBBER TUBE

1шт.

15

ND145766

PLASTIC-RUBBER TUBE

1шт.

19

ND024129

BOLT

2шт.

22

ND124398

LOCK WASHER

2шт.
