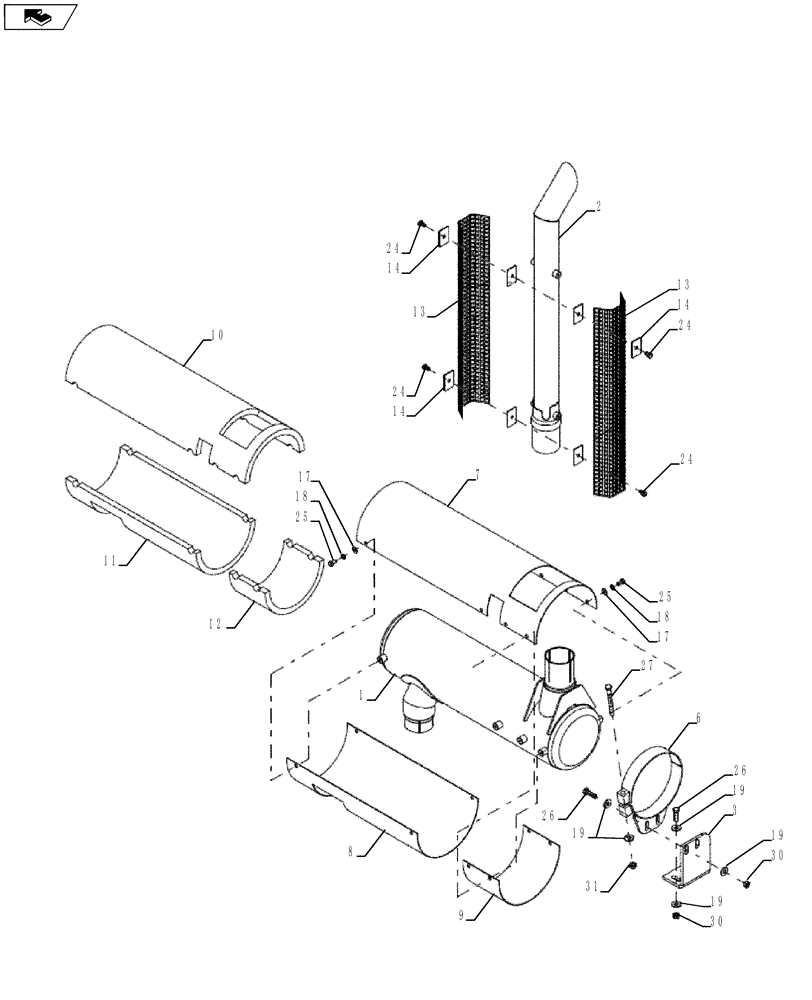

Запчасти Case PT240 (10.254.01[02]) - EXHAUST PARTS (10) - ENGINE

1

ND145273

MUFFLER

1шт.

2

ND145264

EXHAUST SYSTEM PIPE

, Serial Range: -NBNTN2319

1шт.

2

47397480

EXHAUST SYSTEM PIPE

, Start Serial: NBNTN2320

1шт.

3

ND145271

BRACKET

1шт.

6

ND001461

SECURING STRAP

1шт.

7

ND145265

SHIELD

1шт.

8

ND145266

SHIELD

1шт.

9

ND000750

SHIELD

1шт.

10

ND001694

INSULATION

1шт.

11

ND145267

INSULATION

1шт.

12

ND001698

INSULATION

1шт.

13

ND145269

SHIELD

, Serial Range: -NBNTN2319

2шт.

13

47397483

HEAT SHIELD

, Start Serial: NBNTN2320

1шт.

14

ND093953

MOUNTING PLATE

, Serial Range: -NBNTN2319

8шт.

14

47397488

MOUNTING PLATE

, Start Serial: NBNTN2320

8шт.

17

ND124603

WASHER

8шт.

18

ND035940

SPRING WASHER

8шт.

19

ND035826

WASHER

9шт.

24

ND092867

BOLT,Hex, M8 x 14mm

4шт.

25

ND021293

BOLT

8шт.

26

ND021304

BOLT

4шт.

27

ND021205

BOLT,Hex, M10 x 100mm

1шт.

30

ND021849

NUT

4шт.

31

ND034088

NUT

1шт.
