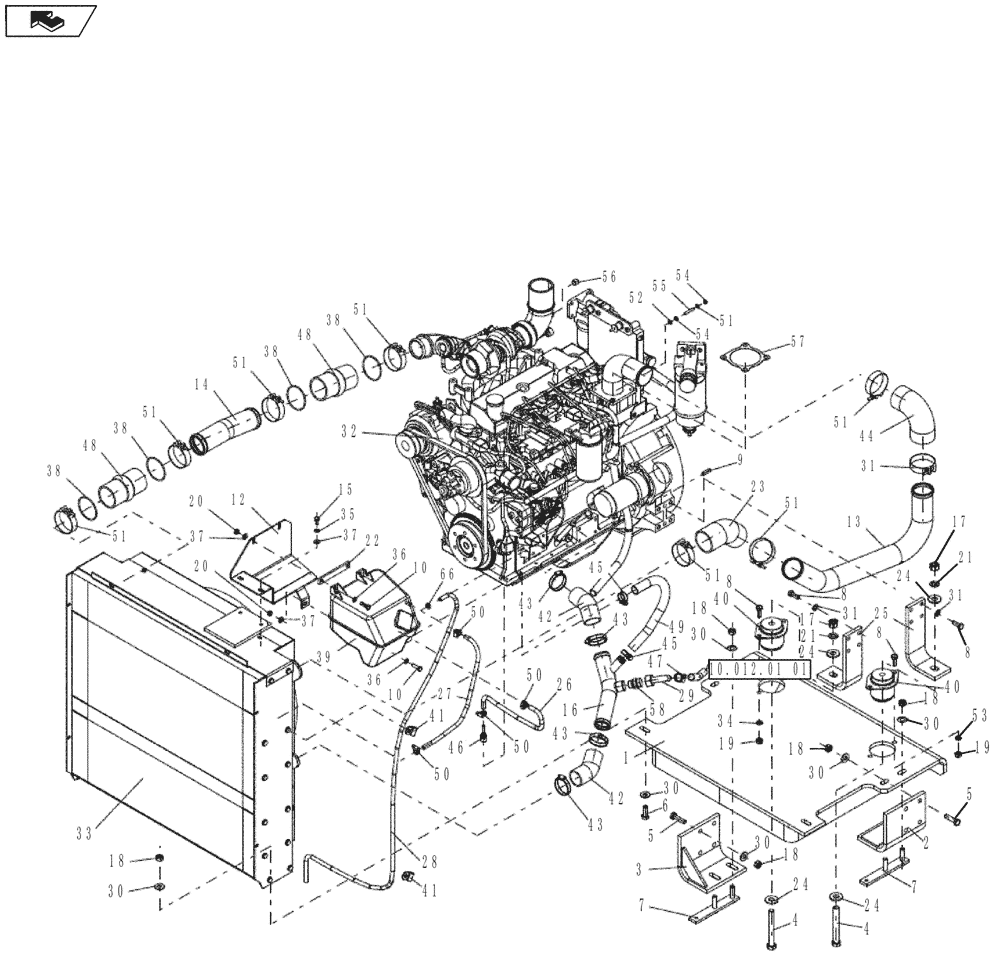

Запчасти Case PT240 (10.012.01[04]) - ENGINE, MOUNTING - ASN NFNTN2768 (10) - ENGINE

1

ND145263

CROSSMEMBER

1шт.

2

ND001145

BRACKET

1шт.

3

ND001148

BRACKET

1шт.

4

ND021236

BOLT

2шт.

5

ND021209

BOLT

8шт.

6

ND021209

BOLT

6шт.

7

ND145294

BRACKET

2шт.

8

ND021303

BOLT

, Serial Range: -NGNTN2928

12шт.

8

ND021303

BOLT

, Start Serial: NGNTN2929

8шт.

9

ND143323

STUD

9шт.

10

ND021296

BOLT

Used to Attach Coolant Reservoir

3шт.

10

ND021182

BOLT

1шт.

11

ND021294

BOLT

3шт.

12

ND145278

SUPPORT

1шт.

13

ND143033

HYD TUBE

1шт.

14

ND143031

HYD TUBE

1шт.

15

ND021293

BOLT

2шт.

16

84527127

HYD TUBE

1шт.

17

ND021851

NUT

4шт.

18

ND034086

NUT

14шт.

19

ND034088

NUT

, Serial Range: -NGNTN2928

8шт.

19

ND034088

NUT

, Start Serial: NGNTN2929

4шт.

20

ND034087

NUT

19шт.

21

ND035943

WASHER

If Used

4шт.

22

ND145280

MOUNTING PLATE

1шт.

23

ND145299

ELBOW

, Serial Range: -NGNTN2928

1шт.

23

48136076

, Start Serial: NGNTN2929

ELBOW

1шт.

24

ND035827

WASHER

5шт.

25

ND145262

BRACKET

With 4 Holes Drilled (Used on Air Compressor Side of Engine)

1шт.

25

47901362

BRACKET

With 6 Holes Drilled

1шт.

26

ND145282

PLASTIC-RUBBER TUBE

1шт.

27

ND145281

PLASTIC-RUBBER TUBE

1шт.

28

ND145283

PLASTIC-RUBBER TUBE

1шт.

29

ND112440

HYD TUBE

1шт.

30

ND122456

WASHER

22шт.

31

ND029266

WASHER

10шт.

31

ND135110

CLIP

8шт.

32

47901449

Contact Cummins

ENGINE

1шт.

32

47431839

FUEL FILTER

1шт.

32

ND137979

FUEL FILTER

1шт.

32

87409203

ENGINE OIL FILTER

1шт.

32

47901370

BELT

Water Pump

1шт.

33

47901402

RADIATOR

1шт.

34

ND035941

WASHER

14шт.

35

ND035940

SPRING WASHER

16шт.

36

ND124603

WASHER

22шт.

37

ND124603

WASHER

22шт.

38

ND135385

RING

4шт.

39

ND090038

RESERVOIR, COOLANT E

1шт.

40

ND090022

RUBBER MOUNTING

2шт.

41

ND146453

CLAMP

2шт.

42

84527133

ELBOW

Attaches to Radiator

1шт.

42

ND138909

ELBOW

Attaches to Engine

1шт.

43

ND105775

HOSE CLAMP

7шт.

44

ND136339

ELBOW

, Serial Range: -NGNTN2928

1шт.

44

48140373

, Start Serial: NGNTN2929

ELBOW

1шт.

45

ND107319

CLAMP

2шт.

46

ND138503

END

1шт.

47

ND105776

CLAMP

4шт.

48

ND135336

COUPLING

2шт.

49

84527135

PLASTIC-RUBBER TUBE

1шт.

50

ND069478

CLIP

4шт.

51

ND135110

CLIP

8шт.

51

ND118926

WASHER

7шт.

52

ND029248

WASHER

1шт.

53

ND035941

WASHER

16шт.

54

ND026461

NUT

2шт.

55

ND142074

STUD

1шт.

56

ND136538

PLUG

1шт.

57

ND142228

GASKET

1шт.

58

ND062131

FITTING

3шт.

66

ND069521

CLAMP

1шт.
