Запчасти Case PT240 (90.115.01[02]) - OPERATORS DESK COVERS AND PANELS (GROUP 183-ND146085) (90) - PLATFORM, CAB, BODYWORK AND DECALS

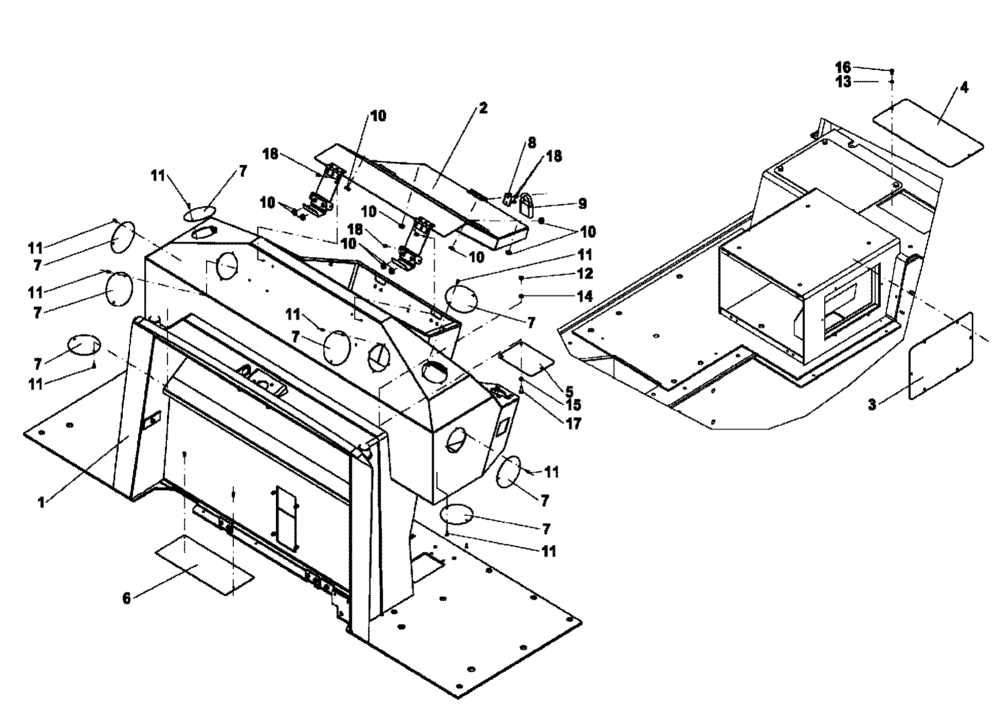

![Схема запчастей Case PT240 - (90.115.01[02]) - OPERATORS DESK COVERS AND PANELS (GROUP 183-ND146085) (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/717429.png)
8
7
11
17
3
13
18
18
18
6
7
7
11
11
11
11
7
11
7
10
11
12
10
10
11
7
10
5
18
4
15
6
9
7
14
7
2
8
№
Артикул
Название
Примечание
Количество
2
ND146086
ACCESS COVER
1шт.
3
ND146082
ACCESS COVER
1шт.
4
ND146088
ACCESS COVER
1шт.
5
ND146084
ACCESS COVER
1шт.
6
ND146081
ACCESS COVER
1шт.
7
ND146083
ACCESS COVER
8шт.
8
ND146087
EYE
1шт.
9
ND064506
PADLOCK
1шт.
10
ND079511
SHIELD
14шт.
11
ND024965
SELF-TAP SCREW
18шт.
12
ND021847
NUT
2шт.
13
ND124398
LOCK WASHER
2шт.
14
ND029248
WASHER
2шт.
15
ND118926
WASHER
3шт.
16
ND093424
BOLT
2шт.
17
ND021288
BOLT
3шт.
18
ND069931
RIVET
10шт.
Выбрано товаров: 17
