Запчасти Case PT240 (88.100.01[02]) - TIRE INFLATION SYSTEM (GROUP 346-ND144886) (88) - ACCESSORIES

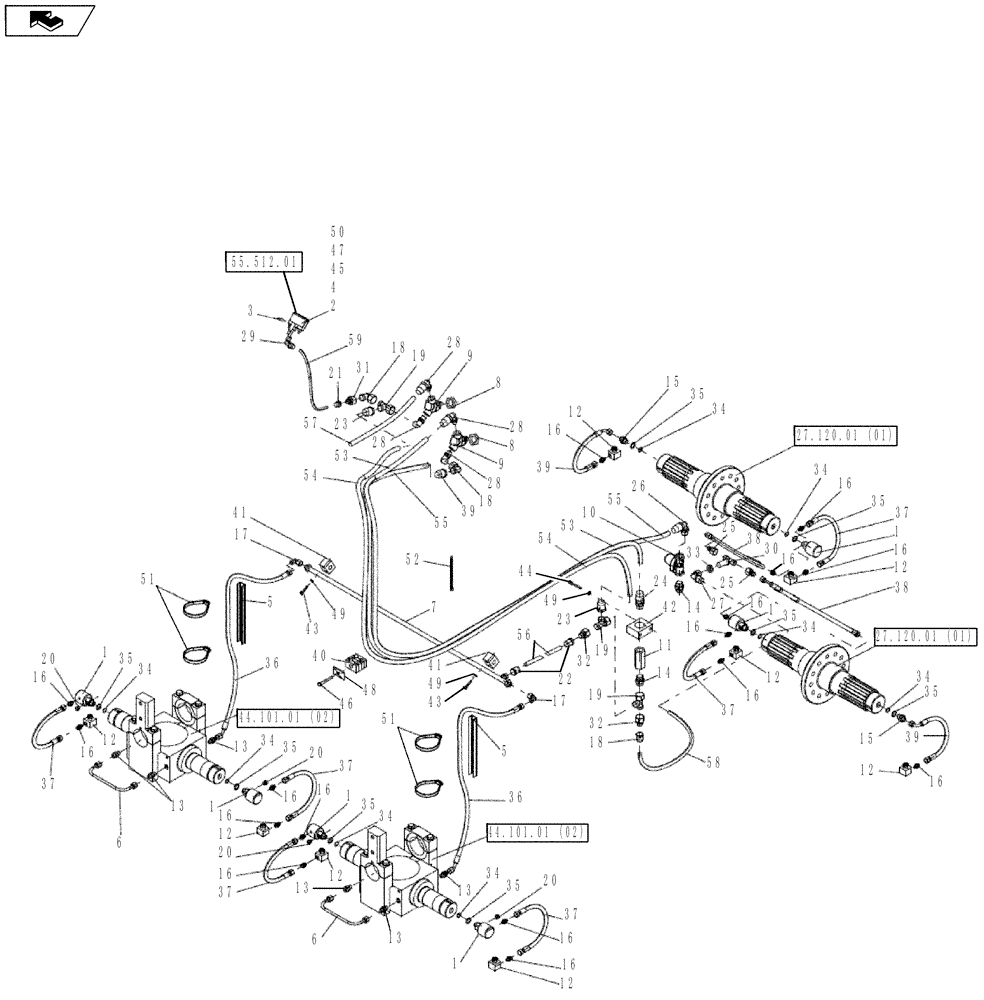

Схема запчастей Case PT240 - (88.100.01[02]) - TIRE INFLATION SYSTEM (GROUP 346-ND144886) (88) - ACCESSORIES
51
35
14
1
22
34
20
23
37
16
13
34
16
1
24
55
33
31
57
44
12
16
13
9
49
35
47
16
12
12
39
25
34
46
41
58
16
36
5
16
16
2
43
12
34
18
41
8
36
20
7
38
52
20
37
16
37
55
42
9
12
27
10
32
51
13
39
48
35
28
12
12
50
19
1
55.512.01
14
6
44.101.01 (02)
27.120.01 (01)
27.120.01 (01)
44.101.01 (02)
18
20
35
12
54
38
13
45
53
35
26
19
40
28
49
home
35
34
1
4
5
59
37
16
1
37
18
16
16
21
32
34
53
16
43
3
15
13
11
16
34
23
16
30
6
56
17
19
16
15
28
17
34
25
16
39
28
35
49
8
54
35
1
29
37

Артикул

Название

Примечание

Количество

1

ND133699

MANIFOLD

6шт.

2

ND091891

PRESSURE GAUGE

1шт.

3

ND081627

DECAL

1шт.

4

ND066874

BULB

1шт.

5

ND127475

PROTECTOR

2шт.

6

ND148442

AIR INTAKE TUBE

2шт.

7

ND123535

TUBE

1шт.

8

ND120985

NUT

2шт.

9

ND120991

PNEUMATIC VALVE

2шт.

10

ND120990

PNEUMATIC VALVE

1шт.

11

ND120988

PNEUMATIC VALVE

1шт.

12

ND091213

PNEUMATIC VALVE

8шт.

13

ND062200

HYD CONNECTOR

6шт.

14

ND062109

HYD CONNECTOR

2шт.

15

ND062205

HYD CONNECTOR

2шт.

16

ND062170

PIPE

16шт.

17

ND062414

ELBOW

2шт.

18

ND062367

HYD CONNECTOR

2шт.

19

ND062394

HYD CONNECTOR

3шт.

20

ND062402

PLUG

4шт.

21

ND121010

FITTING

1шт.

22

ND121009

FITTING

3шт.

23

ND144645

FITTING

1шт.

24

ND144644

FITTING

1шт.

25

ND121059

REDUCER

2шт.

26

ND144987

PIPE FITTING

1шт.

27

ND121003

FITTING

1шт.

28

ND144986

FITTING

2шт.

29

ND143126

FITTING

1шт.

30

ND121053

TEE

1шт.

31

ND062446

REDUCER FITTING

1шт.

32

ND125535

REDUCER FITTING

2шт.

33

ND121055

NUT

1шт.

34

ND079879

O-RING

8шт.

35

ND073354

PACKING RING

8шт.

36

ND125854

AIR HOSE

1шт.

37

ND118176

AIR HOSE

2шт.

38

ND118175

AIR HOSE

1шт.

39

ND118174

AIR HOSE

1шт.

40

ND064802

SLEEVE

2шт.

41

ND064799

CLAMP

2шт.

42

ND064801

SLEEVE

1шт.

43

ND024233

BOLT

4шт.

44

ND024238

BOLT

2шт.

45

ND024110

BOLT

1шт.

46

ND021189

BOLT

1шт.

47

ND107947

NUT

1шт.

48

ND064807

CLAMP

1шт.

49

ND029248

WASHER

6шт.

50

ND029246

WASHER

1шт.

51

ND069488

SNAP RING

4шт.

52

ND106910

STRAP

4шт.

53

ND146408

PLASTIC-RUBBER TUBE

1шт.

54

ND146407

PLASTIC-RUBBER TUBE

1шт.

55

ND146409

PLASTIC-RUBBER TUBE

1шт.

56

ND146410

PLASTIC-RUBBER TUBE

1шт.

57

ND148401

PLASTIC-RUBBER TUBE

1шт.

58

ND146411

PLASTIC-RUBBER TUBE

1шт.

59

ND121323

PLASTIC-RUBBER TUBE

1шт.

Выбрано товаров: 59
